Early results for Named Entity Recognition with Conditional Random Fields, Feature Induction and Web-Enhanced Lexicons

A. McCallumWei Li

article2003CoNLL1,373 citations

Proposes an efficient feature induction technique and automated web-based lexicon expansion to improve the performance and scalability of Conditional Random Fields on named entity recognition tasks.

Listen

Extracting structured information such as person names, locations, and organizations from unstructured text is an essential task for intelligence analysis, search engines, and business automation. While statistical sequence models benefit heavily from diverse contextual cues and word lists, standard approaches often struggle with computational bottlenecks when combining thousands of overlapping word patterns. In addition, manually compiling the extensive, domain-specific vocabularies required to accurately recognize varied entities is expensive and time-consuming.

The article demonstrates an automated method to efficiently construct compact, high-performing sequence models using Conditional Random Fields—a statistical framework for labeling sequential data—combined with automated feature induction and web-based lexicon generation. The objective is to maximize entity extraction accuracy while dramatically cutting the number of model parameters and reducing the human effort needed to build specialized word lists.

To achieve this, the authors developed an automated feature selection process tailored for sequence models, using approximations that focus computations only on misclassified words to select the most impactful word combinations. In parallel, they introduced a web-mining approach called WebListing (leveraging Google Sets) that automatically expands small seed lists of known entities into comprehensive lexicons by identifying regular formatting structures across the internet. The combined framework was evaluated on the benchmark CoNLL-2003 shared task using complex news corpora in English and German across four entity categories: persons, locations, organizations, and miscellaneous items.

The evaluation produced several notable results. First, automated feature selection achieved an overall balanced accuracy score (F1) of 84.04% on the English test set while requiring only 6,423 features. Second, this compact model drastically outperformed a baseline relying on fixed, predefined feature combinations, which attained only 73.34% F1 despite generating approximately one million features. Third, performance was strongest on English person names (90.51% F1) and location names (87.44% F1), while organization and miscellaneous categories presented greater difficulty. Finally, German test accuracy reached 68.11% F1, though it was constrained by limited non-English web lexicon support.

These findings indicate that automated feature selection can simultaneously cut computational storage requirements by over 99% and significantly boost extraction accuracy compared to static feature sets. The automated expansion of vocabularies via the web substantially reduces manual engineering time, enabling rapid deployment of entity recognition models across new domains with minimal upfront labeling effort.

For future implementation, technical teams should adopt automated feature selection over static feature expansion to reduce model training complexity and footprint. Organizations should also develop customized, robust web-scraping tools for lexicon generation rather than relying on third-party utilities. However, decision-makers should note that the reported results represent an early-stage implementation with minimal tuning and hand-filtered lexicons, and performance in non-English languages will remain lower until multilingual web-mining pipelines are expanded.

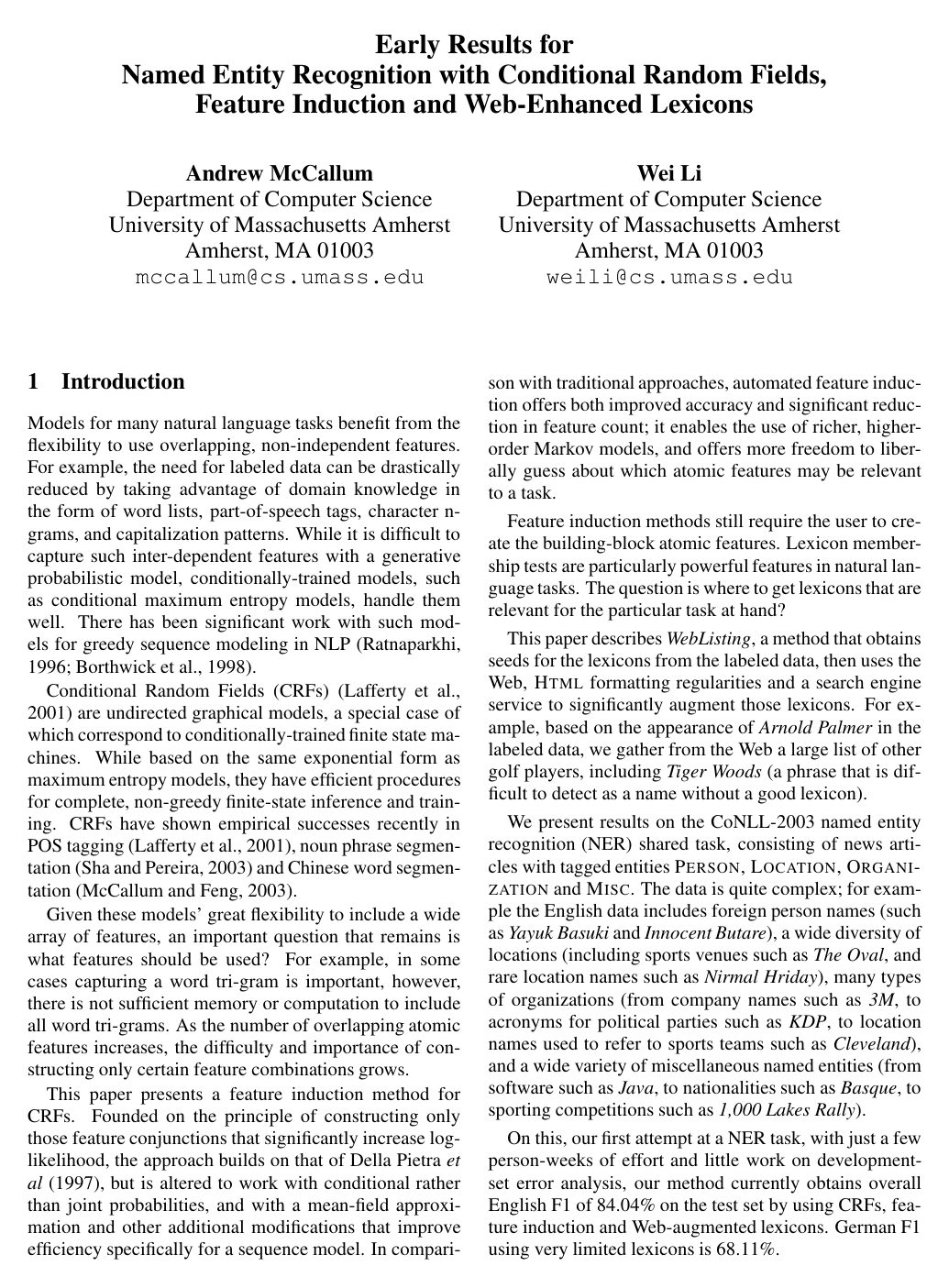

Cover for Early results for Named Entity Recognition with Conditional Random Fields, Feature Induction and Web-Enhanced Lexicons

Table of Contents

  • 1 Introduction
  • 2 Conditional Random Fields
  • 4 Web-augmented Lexicons
  • 5 Results
  • Acknowledgments
  • References

Knowls

  1. Knowl 1 — Feature Induction for Linear-Chain Conditional Random Fields

    model/method

    Feature induction for linear-chain Conditional Random Fields (CRFs) builds feature conjunctions iteratively to identify only those combinations that significantly improve conditional log-likelihood, rather than enumerating an intractable combinatorial space of all time-shifted feature combinations.

    The procedure starts with a model containing no features and conducts multiple induction rounds. In each round:

    1. Candidate features are formed as singleton observational tests and binary conjunctions of atomic tests with each other and with existing model features, enabling arbitrary-length conjunctions.

    2. The candidate features that maximize the improvement in regularized log-likelihood (the gain) are selected. During gain estimation for candidate gg with weight μ\mu, the parameters Λ\Lambda of previously included features are held fixed.

    3. Tractability in sequence models is achieved via two approximations:

      • Mean-Field Token Decomposition: Gain evaluation replaces full dynamic programming across the sequence with a token-level mean-field calculation, decoupling state transitions while using exact state marginal posteriors PΛ(st∣o)P_\Lambda(s_t \mid \mathbf{o}) obtained from a standard forward-backward pass of the base model.
      • Error-Focused Gain Calculation: The candidate gain is evaluated exclusively over training tokens that are mislabeled by the current model, dramatically reducing computation since the majority of tokens are correctly labeled even early in training.
    4. Instead of adding a single feature per round, a batch of top-scoring features exceeding a gain threshold is added, and the combined model is partially retrained with a small number of L-BFGS iterations (rather than to convergence) to prevent overfitting before the next induction round.

  2. Knowl 2 — Mean-Field and Error-Focused Likelihood Gain for Candidate Features

    equation

    When evaluating a candidate feature gg with prospective weight μ\mu to be added to a Conditional Random Field with existing parameter vector Λ\Lambda, the gain GΛ(g,μ)G_\Lambda(g, \mu) represents the change in penalized log-likelihood LΛ+g,μ−LΛL_{\Lambda + g, \mu} - L_\Lambda. Using a mean-field token approximation evaluated over only the MM tokens currently mislabeled by the model, the gain is computed as:

    GΛ(g,μ)=∑i=1Mlog⁡(exp⁡(μg(st(i),o(i),t(i)))Zo(i)(Λ,g,μ))−μ22σ2=MμE~[g]−∑i=1Mlog⁡(EΛ[exp⁡(μg)∣o(i)])−μ22σ2G_\Lambda(g, \mu) = \sum_{i=1}^M \log\left( \frac{\exp(\mu g(s_{t(i)}, \mathbf{o}(i), t(i)))}{Z_{o(i)}(\Lambda, g, \mu)} \right) - \frac{\mu^2}{2\sigma^2} = M \mu \tilde{E}[g] - \sum_{i=1}^M \log\left(E_\Lambda[\exp(\mu g) \mid \mathbf{o}(i)]\right) - \frac{\mu^2}{2\sigma^2}

    where:

    • {o(i):i=1,…,M}\{o(i) : i = 1, \dots, M\} is the set of tokens mislabeled by the current model across the training set, where o(i)o(i) occurs at sequence position t(i)t(i) within input sequence o(i)\mathbf{o}(i),
    • st(i)s_{t(i)} is the true target state at position t(i)t(i),
    • Zo(i)(Λ,g,μ)=∑sPΛ(s∣o(i))exp⁡(μg(s,o(i),t(i)))Z_{o(i)}(\Lambda, g, \mu) = \sum_s P_\Lambda(s \mid \mathbf{o}(i)) \exp(\mu g(s, \mathbf{o}(i), t(i))) is the token-level normalization factor,
    • PΛ(s∣o(i))=αt(i)(s∣o(i))βt(i)+1(s∣o(i))Zo(i)P_\Lambda(s \mid \mathbf{o}(i)) = \frac{\alpha_{t(i)}(s \mid \mathbf{o}(i)) \beta_{t(i)+1}(s \mid \mathbf{o}(i))}{Z_{\mathbf{o}(i)}} is the exact marginal posterior distribution over state ss at token position t(i)t(i), computed via forward-backward dynamic programming under the current CRF parameters Λ\Lambda,
    • σ2\sigma^2 is the variance parameter of the zero-mean Gaussian prior on feature weights,
    • E~[g]\tilde{E}[g] is the empirical expectation of gg over the mislabeled tokens, and
    • EΛ[⋅∣o(i)]E_\Lambda[\cdot \mid \mathbf{o}(i)] is the expectation under the model's marginal state posterior distribution at token o(i)o(i).

    The candidate feature gain is GΛ(g)=max⁡μGΛ(g,μ)G_\Lambda(g) = \max_\mu G_\Lambda(g, \mu). While μ\mu cannot be solved in closed form, its optimal value is computed using Newton's method in approximately 12 iterations.

  3. Knowl 3 — Iterative Feature Induction Algorithm for Conditional Random Fields

    algorithm

    The algorithm constructs feature conjunctions for linear-chain CRFs by alternately generating candidates, computing approximate gains on mislabeled tokens, and partially training feature weights.

    Input: Labeled training dataset D={(o(j),s(j))}j=1N\mathcal{D} = \{(\mathbf{o}^{(j)}, \mathbf{s}^{(j)})\}_{j=1}^N, atomic test set A\mathcal{A}, Gaussian prior variance σ2\sigma^2, maximum features per round K=1000K = 1000, gain threshold θ=5.0\theta = 5.0, L-BFGS iterations per round I=10I = 10
    Output: Induced feature set F\mathcal{F} and trained CRF parameter vector Λ\Lambda
    Initialize F←∅\mathcal{F} \leftarrow \emptyset, Λ←0\Lambda \leftarrow \mathbf{0}
    repeat
        Compute token state posteriors PΛ(st∣o(j))P_\Lambda(s_t \mid \mathbf{o}^{(j)}) for all sequences in D\mathcal{D} using forward-backward dynamic programming
        Identify the set of currently mislabeled tokens E={o(i):i=1,…,M}\mathcal{E} = \{o(i) : i = 1, \dots, M\} across all sequences in D\mathcal{D}
        Generate candidate conjunction set C←A∪{a∧f:a∈A,f∈F}\mathcal{C} \leftarrow \mathcal{A} \cup \{ a \wedge f : a \in \mathcal{A}, f \in \mathcal{F} \}, restricted to conjunctions from the 1000 highest-gain atomic and existing features
        for each candidate feature g∈Cg \in \mathcal{C} do
            Find μ∗=arg⁡max⁡μGΛ(g,μ)\mu^* = \arg\max_\mu G_\Lambda(g, \mu) using Newton's method over E\mathcal{E}
            Set candidate gain GΛ(g)←GΛ(g,μ∗)G_\Lambda(g) \leftarrow G_\Lambda(g, \mu^*)
        end for
        Select top candidates S←{g∈C:GΛ(g)≥θ and g is among top K candidates by gain}\mathcal{S} \leftarrow \{ g \in \mathcal{C} : G_\Lambda(g) \ge \theta \text{ and } g \text{ is among top } K \text{ candidates by gain} \}
        if S\mathcal{S} is empty then
            break
        end if
        F←F∪S\mathcal{F} \leftarrow \mathcal{F} \cup \mathcal{S}
        Initialize weights for new features in Λ\Lambda to their corresponding μ∗\mu^*
        Optimize all parameters in Λ\Lambda for II iterations of L-BFGS on D\mathcal{D}
    until stopping criterion is met
    return F,Λ\mathcal{F}, \Lambda
  4. Knowl 4 — Linear-Chain Conditional Random Field Model and Log-Likelihood Gradient

    equation

    A first-order linear-chain Conditional Random Field (CRF) models the conditional probability of an output state sequence s=(s1,s2,…,sT)\mathbf{s} = (s_1, s_2, \dots, s_T) given an observed input sequence o=(o1,o2,…,oT)\mathbf{o} = (o_1, o_2, \dots, o_T) as:

    PΛ(s∣o)=1Zoexp⁡(∑t=1T∑kλkfk(st−1,st,o,t))P_\Lambda(\mathbf{s} \mid \mathbf{o}) = \frac{1}{Z_\mathbf{o}} \exp \left( \sum_{t=1}^T \sum_k \lambda_k f_k(s_{t-1}, s_t, \mathbf{o}, t) \right)

    where fk(st−1,st,o,t)f_k(s_{t-1}, s_t, \mathbf{o}, t) is an arbitrary feature function over adjacent states and the observation sequence, λk∈Λ\lambda_k \in \Lambda is the learned weight for feature fkf_k, and ZoZ_\mathbf{o} is the sequence normalization factor summing over all state paths:

    Zo=∑s′exp⁡(∑t=1T∑kλkfk(st−1′,st′,o,t))Z_\mathbf{o} = \sum_{\mathbf{s}'} \exp \left( \sum_{t=1}^T \sum_k \lambda_k f_k(s'_{t-1}, s'_t, \mathbf{o}, t) \right)

    Given a training set D={(o(1),s(1)),…,(o(N),s(N))}\mathcal{D} = \{(\mathbf{o}^{(1)}, \mathbf{s}^{(1)}), \dots, (\mathbf{o}^{(N)}, \mathbf{s}^{(N)})\} where training labels specify unambiguous state paths, the weights Λ={λk}\Lambda = \{\lambda_k\} are set to maximize the regularized log-likelihood with a zero-mean Gaussian prior of variance σ2\sigma^2:

    LΛ=∑j=1Nlog⁡(PΛ(s(j)∣o(j)))−∑kλk22σ2L_\Lambda = \sum_{j=1}^N \log\left( P_\Lambda(\mathbf{s}^{(j)} \mid \mathbf{o}^{(j)}) \right) - \sum_k \frac{\lambda_k^2}{2\sigma^2}

    The first-derivative with respect to weight λk\lambda_k optimized by quasi-Newton methods (such as L-BFGS) is:

    ∂LΛ∂λk=∑j=1NCk(s(j),o(j))−∑j=1N∑sPΛ(s∣o(j))Ck(s,o(j))−λkσ2\frac{\partial L_\Lambda}{\partial \lambda_k} = \sum_{j=1}^N C_k(\mathbf{s}^{(j)}, \mathbf{o}^{(j)}) - \sum_{j=1}^N \sum_{\mathbf{s}} P_\Lambda(\mathbf{s} \mid \mathbf{o}^{(j)}) C_k(\mathbf{s}, \mathbf{o}^{(j)}) - \frac{\lambda_k}{\sigma^2}

    where Ck(s,o)=∑t=1Tfk(st−1,st,o,t)C_k(\mathbf{s}, \mathbf{o}) = \sum_{t=1}^T f_k(s_{t-1}, s_t, \mathbf{o}, t) represents the total empirical or model count of feature kk across sequence path s\mathbf{s}.

  5. Knowl 5 — WebListing Lexicon Induction Method

    model/method

    WebListing is a semi-supervised lexicon expansion method that generates task-specific named entity word lists by exploiting structural HTML regularities on the World Wide Web rather than extracting text from narrow local linguistic contexts.

    The method operates as follows:

    1. Seed entities belonging to target semantic categories (such as person names, organizations, political parties, and geographic locations) are extracted from labeled training data.
    2. A web search service (such as GoogleSets) is queried using the seed entities to identify web pages where the seed terms appear in identical HTML formatting structures (such as list items <li>, table rows, or structured delimiter patterns).
    3. Additional terms appearing within the same formatting patterns on those pages are harvested and aggregated into expanded candidate lexicons.
    4. Lexicons undergo optional minimal hand-filtering and are used as binary membership test features in sequential taggers.
  6. Knowl 6 — Feature Space Representation for Named Entity Recognition

    experimental setup

    In the CoNLL-2003 named entity recognition task, atomic features are evaluated at observation offsets t+Δt + \Delta with Δ∈{−2,−1,0,+1,+2}\Delta \in \{-2, -1, 0, +1, +2\} relative to current token position tt:

    • Token identity: Exact word at position t+Δt + \Delta.
    • Character regular expressions: 16 orthographic pattern tests indicating capitalization and digit configurations:
      • A: exactly one uppercase letter [A-Z]
      • A+: one or more uppercase letters
      • Aa+: an uppercase letter followed by one or more lowercase letters [a-z]
      • Aa+Aa*: camel-case patterns with multiple capital letter segments
      • A.: an uppercase letter followed by a period
      • D+: one or more digits [0-9]
    • Hand-crafted lexicons: 8 lists covering honorifics, days of the week, and months.
    • Web-sourced lexicons: 15 lists downloaded from websites covering country names, publicly traded companies, surnames, stopwords, and universities.
    • WebListing lexicons: 25 lists generated by WebListing from seed entities, covering people names, organizations, non-governmental organizations (NGOs), and nationalities.
    • First-mention features: For capitalized words, a firstmention prefix prepended to all the above tests if the current token appeared earlier in the document.
    • German-specific features: Character bi-grams and tri-grams, combined with 5 small lexicons (due to limited multilingual support in GoogleSets).
  7. Knowl 7 — CoNLL-2003 Named Entity Recognition Benchmark Performance

    data/table

    The linear-chain CRF model with induced features and web-augmented lexicons was evaluated on the CoNLL-2003 English and German shared task datasets for entity classes: Location (LOC), Miscellaneous (MISC), Organization (ORG), and Person (PER).

    Language / Entity Development Set Test Set
    Precision Recall F1 Precision Recall F1
    English
    LOC 93.82% 91.78% 92.79% 87.23% 87.65% 87.44%
    MISC 83.99% 78.52% 81.17% 74.44% 71.37% 72.87%
    ORG 84.23% 82.03% 83.11% 79.52% 78.33% 78.92%
    PER 92.64% 93.65% 93.14% 91.05% 89.98% 90.51%
    English Overall 89.84% 88.10% 88.96% 84.52% 83.55% 84.04%
    German
    LOC 68.55% 68.84% 68.69% 71.92% 69.28% 70.57%
    MISC 72.66% 45.25% 55.77% 69.59% 42.69% 52.91%
    ORG 70.64% 54.88% 61.77% 63.85% 48.90% 55.38%
    PER 82.21% 64.31% 72.17% 90.04% 74.14% 81.32%
    German Overall 73.60% 59.01% 65.50% 75.97% 61.72% 68.11%

    The model was trained using a Gaussian prior variance σ2=0.5\sigma^2 = 0.5, inducing up to 1000 features per round (down to a minimum gain threshold of 5.0) every 10 iterations of L-BFGS. English performance reached 84.04% F1 overall on the test set using 6,423 induced features. German performance reached 68.11% F1 on the test set using character n-grams and 5 small lexicons.

  8. Knowl 8 — Feature Induction versus Fixed Conjunction Patterns

    empirical result

    On the CoNLL-2003 English named entity recognition test set, automated feature induction demonstrates substantial improvements in both tagging accuracy and model compactness compared to using predefined fixed conjunction patterns:

    • Feature Induction: Achieves an overall F1 score of 84.04% using a compact model containing 6,423 induced features.
    • Fixed Conjunction Patterns: Achieves an overall F1 score of 73.34% while requiring approximately 1,000,000 features.

    Automated feature induction improves test F1 score by 10.7 percentage points while reducing feature set size by over two orders of magnitude.

Coverage note — No substantial contributed material was omitted.
