Adversarial Style Augmentation for Domain Generalized Urban-Scene Segmentation

Zhun ZhongYuyang ZhaoGim Hee LeeNicu Sebe

article2022NeurIPS116 citations

Proposes a dynamic data augmentation framework that optimizes channel-wise image statistics via adversarial training to synthesize challenging styles from synthetic data alone, substantially boosting cross-domain semantic segmentation performance on unseen real-world driving scenes.

Listen

Autonomous systems like self-driving vehicles rely heavily on computer vision models to accurately identify street elements, such as roads, pedestrians, and vehicles. While training these models using synthetic data from video games reduces expensive manual labeling costs, the resulting models often fail in real-world deployment due to domain shifts caused by variations in lighting, weather, and geographic environments. Existing approaches often require real-world target data during training or introduce complex architectures that do not reliably maintain pixel-level semantic consistency.

The article evaluates whether dynamically generating challenging visual styles during synthetic training can enhance a model's robustness and accuracy on unseen real-world domains. The researchers introduce and evaluate Adversarial Style Augmentation (AdvStyle), a model-agnostic technique designed to prevent models from overfitting to synthetic source datasets.

The evaluation used standard synthetic-to-real urban scene segmentation benchmarks, training models on synthetic environments (GTAV and SYNTHIA) and testing them directly across three real-world datasets (CityScapes, BDD-100K, and Mapillary). The approach isolates an image's style into basic statistical features—channel-wise mean and variance—and applies an adversarial update step during training to dynamically construct the most challenging visual style for the model before optimizing segmentation performance. Experiments evaluated multiple standard neural network backbones across both single-source and multi-source generalization configurations, as well as single-domain image classification tasks.

The analysis demonstrates several critical findings. First, AdvStyle substantially improved generalization accuracy across all evaluated neural architectures. For baseline models trained on synthetic GTAV data, the average mean Intersection-over-Union (mIoU) increased from 27.42% to 37.39% for a ResNet-50 backbone, and from 31.47% to 37.34% for a ResNet-101 backbone. Second, when integrated with existing domain generalization architectures, AdvStyle set new state-of-the-art benchmarks, raising ResNet-101 performance on unseen real domains to 42.22% average mIoU without requiring extra real-world training images. Third, AdvStyle outperformed traditional data augmentations, such as color jittering and pixel-level adversarial perturbations, by about 8% in average mIoU. Fourth, the method proved adaptable beyond semantic segmentation, increasing classification accuracy across unseen target domains by up to 8.0% on standard digit and object benchmarks.

These findings suggest that addressing style distribution gaps at the image level provides a practical, low-overhead solution for deploying vision systems into unpredictable real-world environments. By adjusting only a six-dimensional style representation per image during training, organizations can significantly improve safety and operational reliability in autonomous perception systems without collecting expensive target-domain annotations or altering deployment architectures.

Based on these results, machine learning teams should adopt style-level adversarial training in synthetic-data pipelines, especially when deploying models to unseen visual environments. When implementing AdvStyle, teams should maintain the adversarial learning rate within moderate bounds (between 1.0 and 10.0), as excessively large parameters generate unrealistic visual styles that hinder training. Further testing on diverse edge cases and physical hardware environments is recommended before final production deployment.

National University of Singapore University of Trento adversarial style augmentation domain generalized urban-scene segmentation domain generalization

arXiv: 2207.04892

Paper: Domain Generalization: A Survey, Kaiyang Zhou et al. (2021). This survey provides an essential foundational taxonomy of domain generalization paradigms and benchmarks, contextualizing the need for data-manipulation strategies over unseen environments.
Paper: Generalizing to Unseen Domains: A Survey on Domain Generalization, Jindong Wang et al. (2021). Reading this overview clarifies the distinctions between representation learning and data-augmentation strategies for domain generalization that motivate AdvStyle's lightweight training technique.
Paper: Playing for Data: Ground Truth from Computer Games, Stephan R. Richter et al. (2016). This paper introduces the GTA V synthetic urban driving dataset, which forms one of the core source training benchmarks evaluated in the target paper.
Paper: The SYNTHIA Dataset: A Large Collection of Synthetic Images for Semantic Segmentation of Urban Scenes, Germán Ros et al. (2016). This work establishes the SYNTHIA dataset, providing the second primary synthetic urban scene benchmark used to train and test synthetic-to-real domain generalization.
Paper: Explaining and Harnessing Adversarial Examples, Ian J. Goodfellow et al. (2015). This work introduces foundational principles of gradient-based adversarial perturbations that AdvStyle adapts from pixel space to channel-wise style representations.
Paper: In Search of Lost Domain Generalization, Ishaan Gulrajani et al. (2020). This work provides critical empirical baselines and standardized evaluation protocols for domain generalization methods, highlighting the importance of robust data-augmentation techniques.
Paper: AugMix: A Simple Data Processing Method to Improve Robustness and Uncertainty, Dan Hendrycks et al. (2019). This study establishes key concepts in data augmentation mixing and consistency loss to improve model robustness across unseen corruptions and domain shifts.
Paper: Learning to Generalize: Meta-Learning for Domain Generalization, Da Li et al. (2017). This paper presents the meta-learning formulation for domain generalization that AdvStyle contrasts against and integrates with to boost out-of-distribution performance.

Paper: Generative Semantic Segmentation, Jiaqi Chen et al. (2023). This work extends beyond standard discriminative cross-domain segmentation by reformulating the segmentation task entirely into a generative modeling framework.

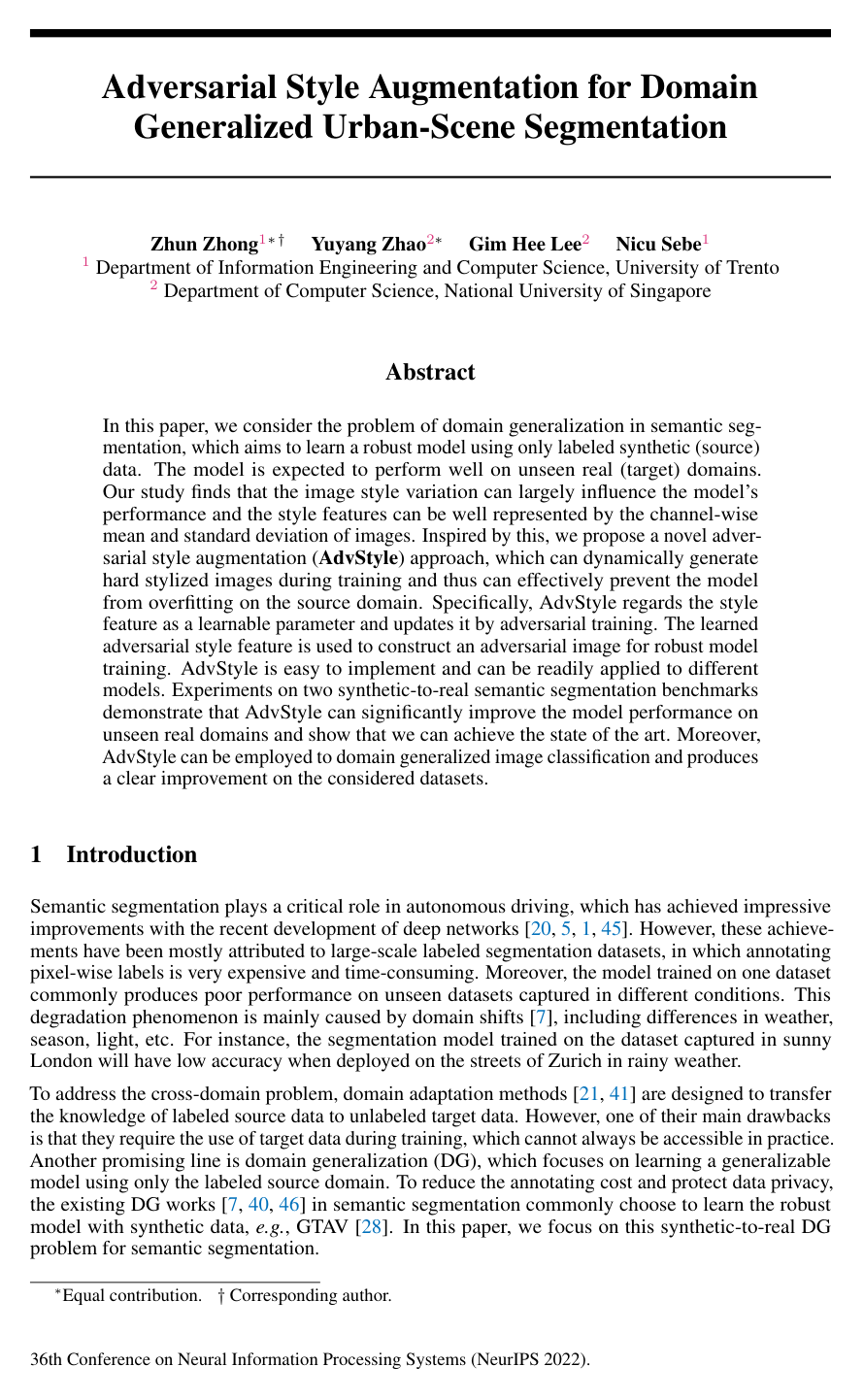

Cover for Adversarial Style Augmentation for Domain Generalized Urban-Scene Segmentation

Abstract

In this paper, we consider the problem of domain generalization in semantic segmentation, which aims to learn a robust model using only labeled synthetic (source) data. The model is expected to perform well on unseen real (target) domains. Our study finds that the image style variation can largely influence the model's performance and the style features can be well represented by the channel-wise mean and standard deviation of images. Inspired by this, we propose a novel adversarial style augmentation (AdvStyle) approach, which can dynamically generate hard stylized images during training and thus can effectively prevent the model from overfitting on the source domain. Specifically, AdvStyle regards the style feature as a learnable parameter and updates it by adversarial training. The learned adversarial style feature is used to construct an adversarial image for robust model training. AdvStyle is easy to implement and can be readily applied to different models. Experiments on two synthetic-to-real semantic segmentation benchmarks demonstrate that AdvStyle can significantly improve the model performance on unseen real domains and show that we can achieve the state of the art. Moreover, AdvStyle can be employed to domain generalized image classification and produces a clear improvement on the considered datasets.

Keywords

adversarial style augmentation domain generalized urban-scene segmentation domain generalization semantic image segmentation adversarial segmentation loss pixel-wise semantic consistency domain-invariant features adversarial training domain randomization

1 Introduction
2 Related Work
3 Method
3.1 Overview
3.2 Adversarial Style Learning
3.3 Robust Model Training
3.4 Discussion
4 Experiments
4.1 Experimental Setup
4.2 Evaluation
4.3 Comparison with State-of-The-Art Methods
4.4 Performance under Multi-Source Setting
4.5 Visualization
4.6 Evaluation on Image Classification Task
5 Conclusion
Acknowledgement
References
Checklist

Knowls

Knowl 1 — Adversarial Style Augmentation Framework
model/method
Adversarial Style Augmentation (AdvStyle) is a domain generalization approach for semantic segmentation that dynamically synthesizes hard stylized training samples during model optimization. The approach decomposes each input image into a normalized content representation and an image-level style representation parameterized by channel-wise mean and standard deviation.

Given an input source image $x \in \mathbb{R}^{C \times H \times W}$ (where $C=3$ for RGB channels and $H \times W$ denotes spatial resolution), AdvStyle executes two steps in each training iteration:
1. Adversarial Style Learning:
  - Compute the channel-wise mean $\mu \in \mathbb{R}^C$ and standard deviation $\sigma \in \mathbb{R}^C$ of $x$ : $\mu = \frac{1}{HW} \sum_{h=1}^H \sum_{w=1}^W x_{c,h,w}, \quad \sigma = \sqrt{\frac{1}{HW} \sum_{h=1}^H \sum_{w=1}^W (x_{c,h,w} - \mu_c)^2}$
  - Standardize $x$ to obtain the normalized content image $\bar{x} \in \mathbb{R}^{C \times H \times W}$ : $\bar{x} = \frac{x - \mu}{\sigma}$
  - Initialize learnable style parameters $\mu^+ \leftarrow \mu$ and $\sigma^+ \leftarrow \sigma$ , and reconstruct the stylized image $\hat{x} = \bar{x} \cdot \sigma^+ + \mu^+$ .
  - With model parameters $\theta$ fixed, update the 6-dimensional style parameters $(\mu^+, \sigma^+)$ via one step of gradient ascent on the cross-entropy segmentation loss $\mathcal{L}_{\text{seg}}$ : $\mu^+ \leftarrow \mu^+ + \gamma \nabla_{\mu^+} \mathcal{L}_{\text{seg}}(\theta; \hat{x})$ $\sigma^+ \leftarrow \sigma^+ + \gamma \nabla_{\sigma^+} \mathcal{L}_{\text{seg}}(\theta; \hat{x})$ where $\gamma > 0$ is the adversarial style learning rate.
2. Robust Model Training:
  - Compose the adversarial sample $x^+ = \bar{x} \cdot \sigma^+ + \mu^+$ using the optimized style statistics $(\mu^+, \sigma^+)$ and the normalized image $\bar{x}$ .
  - Update the segmentation model parameters $\theta$ by minimizing the joint loss on the clean original image and the adversarial image: $\min_\theta \left( \mathcal{L}_{\text{seg}}(\theta; x) + \mathcal{L}_{\text{seg}}(\theta; x^+) \right)$
During inference on unseen target domains, AdvStyle is not applied and testing images are processed directly by the trained network.
Knowl 2 — Properties of Style-Level Versus Pixel-Level Adversarial Augmentation
model/method
Traditional adversarial data augmentation for domain generalization (e.g., AdvPixel) generates pixel-wise perturbation tensors $\delta \in \mathbb{R}^{C \times H \times W}$ added to an image $x$ . In dense prediction tasks such as semantic segmentation, this approach exhibits two key drawbacks compared to Adversarial Style Augmentation (AdvStyle):
- Pixel-Wise Semantic Consistency: Perturbing every pixel independently can distort high-frequency semantic cues, edges, and object structures, corrupting the correspondence between input pixels and their ground-truth segmentation masks unless regularized by additional auxiliary constraints. In contrast, AdvStyle optimizes only global channel statistics $(\mu^+, \sigma^+) \in \mathbb{R}^{2C}$ to scale and shift the normalized image $\bar{x}$ . This modifies global contrast, illumination, and color while preserving edge layouts, spatial configurations, and per-pixel ground-truth labels.
- Optimization Efficiency: Pixel-wise adversarial methods optimize $C \times H \times W$ parameters per image, whereas AdvStyle optimizes a 6-dimensional parameter vector per RGB image, reducing gradient computation overhead.
Knowl 3 — Experimental Setup for Synthetic-to-Real Domain Generalized Semantic Segmentation
experimental setup
The synthetic-to-real domain generalization benchmark assesses models trained exclusively on synthetic urban-scene datasets and evaluated on real-world datasets without access to target data during training:
- Source Datasets:
  - GTAV: 24,966 synthetic street-view images (or a standard training split of 12,403 images) with 19 shared semantic categories.
  - SYNTHIA (SYNTHIA-RAND-CITYSCAPES split): 9,400 synthetic images evaluated on 16 shared semantic categories (omitting train, truck, and terrain).
- Target (Evaluation) Datasets: Validation splits of CityScapes (500 images), BDD-100K (1,000 images), and Mapillary Vistas (2,000 images).
- Architecture: DeepLabV3+ with backbones MobileNetV2, ResNet-50, or ResNet-101.
- Optimization Details:
  - Optimizer: Stochastic Gradient Descent (SGD) with initial learning rate $0.01$ , momentum $0.9$ , and weight decay $5 \times 10^{-4}$ .
  - Schedule: Polynomial learning rate decay $(1 - \text{iter}/\text{max\_iter})^{0.9}$ .
  - Training duration: 40,000 iterations with batch size 16.
  - Default augmentations: Random cropping to $768 \times 768$ , random horizontal flip, color jittering, and Gaussian blur.
  - AdvStyle hyperparameter: $\gamma = 3$ .
- Evaluation Metric: Mean Intersection-over-Union (mIoU, in %) computed on full-resolution target validation sets at the final training iteration (averaged over 3 runs).

Knowl 4 — AdvStyle Performance Across Backbones and Normalization Modules

data/table

AdvStyle is model-agnostic and can be applied to standard batch normalization baselines as well as domain-generalization normalization architectures including Instance-Batch Normalization (IBN-Net) and Instance Selective Whitening (ISW).

The table below reports mIoU (%) on the validation sets of CityScapes (C), BDD-100K (B), and Mapillary (M), along with their mean, for models trained on GTAV (19 classes) or SYNTHIA (16 classes):

GTAV Source	MobileNetV2				ResNet-50				ResNet-101
Methods	C	B	M	Mean	C	B	M	Mean	C	B	M	Mean
Baseline	25.92	25.73	26.45	26.03	28.95	25.14	28.18	27.42	32.97	30.77	30.68	31.47
+AdvStyle	31.81	33.01	31.50	32.11	39.62	35.54	37.00	37.39	39.52	36.39	36.10	37.34
IBN-Net	30.14	27.66	27.07	28.29	33.85	32.30	37.75	34.63	37.37	34.21	36.81	36.13
+AdvStyle	32.45	31.55	33.09	32.36	39.32	36.42	40.82	38.85	44.04	39.96	42.67	42.22
ISW	30.86	30.05	30.67	30.53	36.58	35.20	40.33	37.37	37.20	33.36	35.57	35.38
+AdvStyle	33.23	31.84	32.00	32.36	39.60	38.59	41.89	40.03	43.44	40.32	41.96	41.91
SYNTHIA Source	ResNet-101 Backbone
Methods	CityScapes			BDD-100K			Mapillary			Mean
Baseline	34.94			21.96			27.94			28.28
+AdvStyle	37.59			27.45			31.76			32.27
IBN-Net	35.83			23.62			28.88			29.44
+AdvStyle	38.72			28.55			33.59			33.62
ISW	35.27			23.54			26.72			28.51
+AdvStyle	39.74			28.33			32.87			33.65

AdvStyle increases the mean mIoU of the baseline by $+6.08\%$ , $+9.97\%$ , and $+5.87\%$ on MobileNetV2, ResNet-50, and ResNet-101 respectively when trained on GTAV, and improves the performance of IBN-Net and ISW across all configurations.

Knowl 5 — Comparison of AdvStyle with Data Augmentation and Style Manipulation Techniques

data/table

AdvStyle was evaluated against standard data augmentation methods (Color Jittering, Gaussian Blur), pixel-level adversarial perturbation (AdvPixel), and alternative image-level style randomization techniques (RandStyle, MixStyle, CrossStyle).

All experiments use DeepLabV3+ with a ResNet-50 backbone trained on GTAV (19 classes) and evaluated on CityScapes, BDD-100K, and Mapillary validation sets (mIoU in %):

Comparison with Augmentation Techniques
Color Jittering	Gaussian Blur	AdvPixel	AdvStyle	CityScapes	BDD-100K	Mapillary	Mean
-	-	-	-	21.64	22.85	24.22	22.91
✓	-	-	-	26.36	23.82	26.33	25.50
-	✓	-	-	25.77	24.05	26.71	25.51
-	-	✓	-	23.34	28.42	30.64	27.46
-	-	-	✓	37.51	33.74	34.73	35.32
✓	✓	-	-	28.95	25.14	28.18	27.42
✓	✓	✓	-	35.42	33.28	33.23	33.97
✓	✓	-	✓	39.62	35.54	37.00	37.39
Comparison with Style-Aware Methods
Method				CityScapes	BDD-100K	Mapillary	Mean
Baseline (with Color Jittering + Gaussian Blur)				28.95	25.14	28.18	27.42
RandStyle (Random Gaussian noise added to style)				33.40	34.14	31.67	33.07
MixStyle (Convex combination of sample styles)				35.53	32.41	35.87	34.60
CrossStyle (Swapping styles between sample pairs)				37.26	32.40	34.09	34.58
AdvStyle (Ours)				39.62	35.54	37.00	37.39

AdvStyle alone achieves $35.32\%$ mean mIoU without color jittering or Gaussian blur (an improvement of $+12.41\%$ over the clean baseline), outperforming AdvPixel ( $27.46\%$ ). When combined with standard augmentations, AdvStyle achieves $37.39\%$ mean mIoU, surpassing image-level RandStyle ( $33.07\%$ ), MixStyle ( $34.60\%$ ), and CrossStyle ( $34.58\%$ ).

Knowl 6 — Comparison with State-of-the-Art Synthetic-to-Real Domain Generalization Methods

data/table

Comparison of AdvStyle against state-of-the-art domain generalization methods for semantic segmentation trained on GTAV and evaluated on CityScapes, BDD-100K, and Mapillary validation sets (mIoU in %).

In the table below, $\S$ indicates methods that incorporate extra real-world ImageNet images during training, and $*$ indicates selecting the best checkpoint individually for each target domain (as opposed to evaluating the final training iteration checkpoint):

Backbone	Method	CityScapes	BDD	Mapillary	Mean	Gain
ResNet-50	Baseline	28.95	25.14	28.18	27.42	-
	Baseline + AdvStyle	39.62	35.54	37.00	37.39	+9.97
	SW	29.91	27.48	29.71	29.03	+1.61
	IterNorm	31.81	32.70	33.88	32.79	+5.37
	IBN-Net	33.85	32.30	37.75	34.63	+7.21
	IBN-Net + AdvStyle	39.32	36.42	40.82	38.85	+11.43
	ISW	36.58	35.20	40.33	37.37	+9.95
	ISW + AdvStyle	39.60	38.59	41.89	40.03	+12.61
ResNet-101	Baseline	32.97	30.77	30.68	31.47	-
	Baseline + AdvStyle	39.52	36.39	36.10	37.34	+5.87
	IBN-Net	37.37	34.21	36.81	36.13	+4.66
	IBN-Net + AdvStyle	44.04	39.96	42.67	42.22	+10.75
	ISW	37.20	33.36	35.57	35.38	+3.91
	ISW + AdvStyle	43.44	40.32	41.96	41.91	+10.44
	DRPC $^{\S*}$	42.53	38.72	38.05	39.76	+9.88
	FSDR $^{\S*}$	44.80	41.20	43.40	43.13	+13.60
	ISW + AdvStyle $^*$	45.62	41.71	46.69	44.67	+13.20

Under the standard protocol (final checkpoint evaluation without ImageNet data), IBN-Net + AdvStyle with ResNet-101 achieves $42.22\%$ mean mIoU. Under the best-checkpoint evaluation protocol ( $^*$ ), ISW + AdvStyle achieves $44.67\%$ mean mIoU, outperforming FSDR ( $43.13\%$ ).

Knowl 7 — Multi-Source Domain Generalization for Semantic Segmentation
empirical result
When trained simultaneously on two synthetic source datasets (GTAV + SYNTHIA) using DeepLabV3+ with a ResNet-50 backbone and evaluated on real-world validation sets (CityScapes, BDD-100K, Mapillary), the methods achieve the following mIoU (%):
- Baseline: CityScapes: $35.46\%$ , BDD-100K: $25.09\%$ , Mapillary: $31.94\%$ , Mean: $30.83\%$ .
- IBN-Net: CityScapes: $35.55\%$ , BDD-100K: $32.18\%$ , Mapillary: $38.09\%$ , Mean: $35.27\%$ .
- ISW: CityScapes: $37.69\%$ , BDD-100K: $34.09\%$ , Mapillary: $38.49\%$ , Mean: $36.75\%$ .
- ISW + AdvStyle: CityScapes: $39.29\%$ , BDD-100K: $39.26\%$ , Mapillary: $41.14\%$ , Mean: $39.90\%$ .
Adding AdvStyle to ISW yields an absolute gain of $+3.15\%$ in mean mIoU ( $+1.60\%$ on CityScapes, $+5.17\%$ on BDD-100K, and $+2.65\%$ on Mapillary).

Knowl 8 — Performance on Single Domain Generalization Image Classification Benchmarks

data/table

AdvStyle was evaluated on single-source domain generalization for image classification across the Digits and PACS benchmarks.

Digits Benchmark (Source: MNIST; Targets: SVHN, MNIST-M, SYN, USPS; classification accuracy in %):

ERM: SVHN $27.8\%$ , MNIST-M $52.7\%$ , SYN $39.7\%$ , USPS $76.9\%$ , Average: $49.3\%$ .
CCSA: Average $49.1\%$ .
d-SNE: Average $52.1\%$ .
JiGen: Average $53.1\%$ .
ADA: SVHN $35.5\%$ , MNIST-M $60.4\%$ , SYN $45.3\%$ , USPS $77.3\%$ , Average: $54.6\%$ .
M-ADA: Average $59.5\%$ .
ME-ADA: SVHN $42.6\%$ , MNIST-M $63.3\%$ , SYN $50.4\%$ , USPS $81.0\%$ , Average: $59.3\%$ .
ERM + AdvStyle: SVHN $50.4\%$ , MNIST-M $73.4\%$ , SYN $58.7\%$ , USPS $81.6\%$ , Average: $66.0\%$ .
ME-ADA + AdvStyle: SVHN $55.5\%$ , MNIST-M $74.1\%$ , SYN $59.3\%$ , USPS $80.1\%$ , Average: $67.3\%$ .

PACS Benchmark (Leave-one-domain-in setting: trained on one domain listed in the column and tested on the remaining three; accuracy in %):

Method	Art Painting	Cartoon	Sketch	Photo	Average
ERM	67.4	74.4	51.4	42.6	58.9
JiGen	69.1	74.6	52.4	41.5	59.4
RSC	68.8	74.5	53.6	41.9	59.7
L2D	74.3	77.5	54.4	45.9	63.0
ERM + AdvStyle	75.8	76.6	58.1	51.1	65.4
RSC + AdvStyle	75.1	78.0	58.9	55.5	66.8
L2D + AdvStyle	80.6	78.4	58.3	59.7	69.3

AdvStyle improves the ERM baseline average accuracy by $+16.7\%$ on Digits and $+6.5\%$ on PACS, and provides gains when combined with state-of-the-art DG classification methods (ME-ADA, RSC, L2D).

Knowl 9 — Hyperparameter Sensitivity to Adversarial Style Learning Rate
empirical result
The adversarial style learning rate $\gamma$ determines the magnitude of the gradient ascent update applied to the style statistics $(\mu^+, \sigma^+)$ in Adversarial Style Augmentation. An empirical evaluation varying $\gamma \in [0.1, 40]$ with a ResNet-50 backbone trained on GTAV demonstrates the following behavior across CityScapes, BDD-100K, and Mapillary:
- The model achieves improvements over the baseline ( $27.42\%$ mean mIoU) across the full range $\gamma \in [0.1, 40]$ .
- Small learning rates in the range $\gamma \in [0.1, 0.5]$ increase mean mIoU from $27.42\%$ to above $33\%$ .
- The optimal performance band is observed between $\gamma = 1.0$ and $\gamma = 10.0$ , peaking around $\gamma = 3$ ( $37.39\%$ mean mIoU).
- At very large values such as $\gamma = 40$ , the adversarial perturbation introduces extreme style distortions that reduce performance relative to the peak, though accuracy remains higher than the unaugmented baseline.

Coverage note — All core contributions from the paper—the AdvStyle formulation, comparative analyses against alternative augmentations, segmentation benchmarks under single- and multi-source setups, hyperparameter sensitivity, and image classification evaluations—are included; qualitative visual figures (t-SNE distributions and segmentation mask visualizations) were omitted as they illustrate the quantitative results.

References

1.Vijay Badrinarayanan, Alex Kendall, and Roberto Cipolla. Segnet: A deep convolutional encoder-decoder architecture for image segmentation. TPAMI, 2017.
2.Anand Bhattad, Min Jin Chong, Kaizhao Liang, Bo Li, and DA Forsyth. Unrestricted adversarial examples via semantic manipulation. In ICLR, 2020.
3.Fabio M Carlucci, Antonio D’Innocente, Silvia Bucci, Barbara Caputo, and Tatiana Tommasi. Domain generalization by solving jigsaw puzzles. In CVPR, 2019.
4.Chen Chen, Zeju Li, Cheng Ouyang, Matt Sinclair, Wenjia Bai, and Daniel Rueckert. Maxstyle: Adversarial style composition for robust medical image segmentation. In MICCAI, 2022.
5.Liang-Chieh Chen, George Papandreou, Iasonas Kokkinos, Kevin Murphy, and Alan L Yuille. Deeplab: Semantic image segmentation with deep convolutional nets, atrous convolution, and fully connected crfs. TPAMI, 2018.
6.Liang-Chieh Chen, Yukun Zhu, George Papandreou, Florian Schroff, and Hartwig Adam. Encoder-decoder with atrous separable convolution for semantic image segmentation. In ECCV, 2018.
7.Sungha Choi, Sanghun Jung, Huiwon Yun, Joanne T Kim, Seungryong Kim, and Jaegul Choo. Robustnet: Improving domain generalization in urban-scene segmentation via instance selective whitening. In CVPR, 2021.
8.Marius Cordts, Mohamed Omran, Sebastian Ramos, Timo Rehfeld, Markus Enzweiler, Rodrigo Benenson, Uwe Franke, Stefan Roth, and Bernt Schiele. The cityscapes dataset for semantic urban scene understanding. In CVPR, 2016.
9.Jia Deng, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. Imagenet: A large-scale hierarchical image database. In CVPR, 2009.
10.Vincent Dumoulin, Jonathon Shlens, and Manjunath Kudlur. A learned representation for artistic style. In ICLR, 2017.
11.Xinjie Fan, Qifei Wang, Junjie Ke, Feng Yang, Boqing Gong, and Mingyuan Zhou. Adversarially adaptive normalization for single domain generalization. In CVPR, 2021.
12.Ian J Goodfellow, Jonathon Shlens, and Christian Szegedy. Explaining and harnessing adversarial examples. ICLR, 2015.
13.Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In CVPR, 2016.
14.Jiaxing Huang, Dayan Guan, Aoran Xiao, and Shijian Lu. Fsdr: Frequency space domain randomization for domain generalization. In CVPR, 2021.
15.Lei Huang, Yi Zhou, Fan Zhu, Li Liu, and Ling Shao. Iterative normalization: Beyond standardization towards efficient whitening. In CVPR, 2019.
16.Xun Huang and Serge Belongie. Arbitrary style transfer in real-time with adaptive instance normalization. In ICCV, 2017.
17.Zeyi Huang, Haohan Wang, Eric P. Xing, and Dong Huang. Self-challenging improves cross-domain generalization. In ECCV, 2020.
18.Sergey Ioffe and Christian Szegedy. Batch normalization: Accelerating deep network training by reducing internal covariate shift. In International Conference on Machine Learning (ICML), 2015.
19.Wei Liu, Andrew Rabinovich, and Alexander C Berg. Parsenet: Looking wider to see better. arXiv preprint arXiv:1506.04579, 2015.
20.Jonathan Long, Evan Shelhamer, and Trevor Darrell. Fully convolutional networks for semantic segmentation. In CVPR, 2015.
21.Yawei Luo, Liang Zheng, Tao Guan, Junqing Yu, and Yi Yang. Taking a closer look at domain shift: Category-level adversaries for semantics consistent domain adaptation. In CVPR, 2019.
22.Saeid Motiian, Marco Piccirilli, Donald A Adjeroh, and Gianfranco Doretto. Unified deep supervised domain adaptation and generalization. In ICCV, 2017.
23.Gerhard Neuhold, Tobias Ollmann, Samuel Rota Bulo, and Peter Kontschieder. The mapillary vistas dataset for semantic understanding of street scenes. In ICCV, 2017.
24.Xingang Pan, Ping Luo, Jianping Shi, and Xiaoou Tang. Two at once: Enhancing learning and generalization capacities via ibn-net. In ECCV, 2018.
25.Xingang Pan, Xiaohang Zhan, Jianping Shi, Xiaoou Tang, and Ping Luo. Switchable whitening for deep representation learning. In ICCV, 2019.
26.Fengchun Qiao and Xi Peng. Uncertainty-guided model generalization to unseen domains. In CVPR, 2021.
27.Fengchun Qiao, Long Zhao, and Xi Peng. Learning to learn single domain generalization. In CVPR, 2020.
28.Stephan R. Richter, Vibhav Vineet, Stefan Roth, and Vladlen Koltun. Playing for data: Ground truth from computer games. In ECCV, 2016.
29.German Ros, Laura Sellart, Joanna Materzynska, David Vazquez, and Antonio M Lopez. The synthia dataset: A large collection of synthetic images for semantic segmentation of urban scenes. In CVPR, 2016.
30.Nataniel Ruiz, Samuel Schulter, and Manmohan Chandraker. Learning to simulate. In ICLR, 2019.
31.Mark Sandler, Andrew Howard, Menglong Zhu, Andrey Zhmoginov, and Liang-Chieh Chen. Mobilenetv2: Inverted residuals and linear bottlenecks. In CVPR, 2018.
32.Manli Shu, Zuxuan Wu, Micah Goldblum, and Tom Goldstein. Encoding robustness to image style via adversarial feature perturbations. In M. Ranzato, A. Beygelzimer, Y. Dauphin, P.S. Liang, and J. Wortman Vaughan, editors, NeurIPS, 2021.
33.Zhiqiang Tang, Yunhe Gao, Yi Zhu, Zhi Zhang, Mu Li, and Dimitris Metaxas. Selfnorm and crossnorm for out-of-distribution robustness. ICCV, 2021.
34.Dmitry Ulyanov, Andrea Vedaldi, and Victor Lempitsky. Instance normalization: The missing ingredient for fast stylization. arXiv preprint arXiv:1607.08022, 2016.
35.Vladimir Vapnik. The nature of statistical learning theory. Springer science & business media, 2013.
36.Riccardo Volpi, Hongseok Namkoong, Ozan Sener, John C Duchi, Vittorio Murino, and Silvio Savarese. Generalizing to unseen domains via adversarial data augmentation. In NeurIPS, 2018.
37.Zijian Wang, Yadan Luo, Ruihong Qiu, Zi Huang, and Mahsa Baktashmotlagh. Learning to diversify for single domain generalization. In ICCV, 2021.
38.Xiang Xu, Xiong Zhou, Ragav Venkatesan, Gurumurthy Swaminathan, and Orchid Majumder. d-sne: Domain adaptation using stochastic neighborhood embedding. In CVPR, 2019.
39.Fisher Yu, Haofeng Chen, Xin Wang, Wenqi Xian, Yingying Chen, Fangchen Liu, Vashisht Madhavan, and Trevor Darrell. Bdd100k: A diverse driving dataset for heterogeneous multitask learning. In CVPR, 2020.
40.Xiangyu Yue, Yang Zhang, Sicheng Zhao, Alberto Sangiovanni-Vincentelli, Kurt Keutzer, and Boqing Gong. Domain randomization and pyramid consistency: Simulation-to-real generalization without accessing target domain data. In ICCV, 2019.
41.Pan Zhang, Bo Zhang, Ting Zhang, Dong Chen, Yong Wang, and Fang Wen. Prototypical pseudo label denoising and target structure learning for domain adaptive semantic segmentation. In CVPR, 2021.
42.Long Zhao, Ting Liu, Xi Peng, and Dimitris Metaxas. Maximum-entropy adversarial data augmentation for improved generalization and robustness. NeurIPS, 2020.
43.Yuyang Zhao, Zhun Zhong, Fengxiang Yang, Zhiming Luo, Yaojin Lin, Shaozi Li, and Sebe Nicu. Learning to generalize unseen domains via memory-based multi-source meta-learning for person re-identification. In CVPR, 2021.
44.Yuyang Zhao, Zhun Zhong, Zhiming Luo, Gim Hee Lee, and Nicu Sebe. Source-free open compound domain adaptation in semantic segmentation. TCSVT, 2022.
45.Yuyang Zhao, Zhun Zhong, Nicu Sebe, and Gim Hee Lee. Novel class discovery in semantic segmentation. In CVPR, 2022.
46.Yuyang Zhao, Zhun Zhong, Na Zhao, Nicu Sebe, and Gim Hee Lee. Style-hallucinated dual consistency learning for domain generalized semantic segmentation. In ECCV, 2022.
47.Kaiyang Zhou, Yongxin Yang, Yu Qiao, and Tao Xiang. Domain generalization with mixstyle. In ICLR, 2021.

Citation

MLA

Zhong, Z., et al. “Adversarial Style Augmentation for Domain Generalized Urban-Scene Segmentation”. Advances in Neural Information Processing Systems, vol. 35, 2022, pp. 338–50, https://proceedings.neurips.cc/paper_files/paper/2022/file/023d94f44110b9a3c62329beec739772-Paper-Conference.pdf.

APA

Zhong, Z., Zhao, Y., Lee, G. H., & Sebe, N. (2022). Adversarial Style Augmentation for Domain Generalized Urban-Scene Segmentation. Advances in Neural Information Processing Systems, 35, 338–350. https://proceedings.neurips.cc/paper_files/paper/2022/file/023d94f44110b9a3c62329beec739772-Paper-Conference.pdf

Chicago

Zhong, Z., Y. Zhao, G. H. Lee, and N. Sebe. 2022. “Adversarial Style Augmentation for Domain Generalized Urban-Scene Segmentation”. Advances in Neural Information Processing Systems 35: 338–50. https://proceedings.neurips.cc/paper_files/paper/2022/file/023d94f44110b9a3c62329beec739772-Paper-Conference.pdf.

Harvard

Zhong, Z. et al. (2022) “Adversarial Style Augmentation for Domain Generalized Urban-Scene Segmentation”, Advances in Neural Information Processing Systems. Curran Associates, Inc., pp. 338–350. Available at: https://proceedings.neurips.cc/paper_files/paper/2022/file/023d94f44110b9a3c62329beec739772-Paper-Conference.pdf.

Vancouver

1. Zhong Z, Zhao Y, Lee GH, Sebe N (2022) Adversarial Style Augmentation for Domain Generalized Urban-Scene Segmentation. In: Advances in Neural Information Processing Systems. Curran Associates, Inc., pp 338–350

BibTeX

@inproceedings{zhong2022adversarial,
  title = {Adversarial Style Augmentation for Domain Generalized Urban-Scene Segmentation},
  author = {Zhong, Zhun and Zhao, Yuyang and Lee, Gim Hee and Sebe, Nicu},
  year = {2022},
  booktitle = {Advances in Neural Information Processing Systems},
  publisher = {Curran Associates, Inc.},
  volume = {35},
  pages = {338-350},
  url = {https://proceedings.neurips.cc/paper_files/paper/2022/file/023d94f44110b9a3c62329beec739772-Paper-Conference.pdf}
}

Metadata:DOI registry

Access the Paper

This paper is available from its original source. Click below to access the PDF.

Open PDF

License: Authors

Adversarial Style Augmentation for Domain Generalized Urban-Scene Segmentation

Abstract

Keywords

Table of Contents

Knowls

Knowl 1 — Adversarial Style Augmentation Framework

Knowl 2 — Properties of Style-Level Versus Pixel-Level Adversarial Augmentation

Knowl 3 — Experimental Setup for Synthetic-to-Real Domain Generalized Semantic Segmentation

Knowl 4 — AdvStyle Performance Across Backbones and Normalization Modules

Knowl 5 — Comparison of AdvStyle with Data Augmentation and Style Manipulation Techniques

Knowl 6 — Comparison with State-of-the-Art Synthetic-to-Real Domain Generalization Methods

Knowl 7 — Multi-Source Domain Generalization for Semantic Segmentation

Knowl 8 — Performance on Single Domain Generalization Image Classification Benchmarks

Knowl 9 — Hyperparameter Sensitivity to Adversarial Style Learning Rate

References

Citation

BibTeX

Access the Paper
