FBNet: Hardware-Aware Efficient ConvNet Design via Differentiable Neural Architecture Search

Bichen WuXiaoliang DaiPeizhao ZhangYanghan WangFei SunYiming WuYuandong TianPeter VajdaYangqing JiaKurt Keutzer

article2018CVPR1,486 citations

Introduces a hardware-aware differentiable neural architecture search framework that directly optimizes ConvNets for device-specific latency, cutting search costs by over 400 times compared to prior methods while achieving superior speed and accuracy on mobile devices.

Listen

Deploying accurate convolutional neural networks on resource-constrained mobile devices is a critical challenge in computer vision. Standard manual design and previous automated neural architecture search methods are either computationally prohibitive or rely heavily on theoretical operation counts (FLOPs) that do not reflect actual latency on physical hardware. Because optimal model design changes significantly depending on target hardware and input resolutions, organizations struggle to efficiently generate tailored, high-performing mobile models.

The article demonstrates a differentiable neural architecture search (DNAS) framework that automates the discovery of accurate and hardware-efficient neural networks, termed FBNets (Facebook-Berkeley-Nets). The core objective is to minimize both classification error and real on-device latency within a single, gradient-based optimization process.

The authors approach this by framing the search space as a stochastic super net across 22 layers, allowing independent block selection per layer out of nine candidate configurations. Rather than training thousands of candidate networks individually, the method optimizes an architecture probability distribution directly using gradient descent. To make hardware execution differentiable and avoid running millions of device tests, the approach pre-measures individual operator runtimes on target hardware and estimates total network latency via an additive lookup table. The framework was evaluated on the ImageNet classification dataset targeting mobile platforms, specifically the Samsung Galaxy S8 (Snapdragon 835) and Apple iPhone X (A11 Bionic).

The results highlight major improvements in search efficiency and deployment performance. First, the search cost dropped dramatically: finding an optimal FBNet required only 216 GPU-hours, which is roughly 420 times faster than prior reinforcement-learning methods like MnasNet. Second, FBNet models outperformed both manually and automatically designed baselines on ImageNet; for instance, FBNet-B achieved 74.1% top-1 accuracy at 23.1 ms latency on a Samsung Galaxy S8, running 1.5 times faster and remaining 2.4 times smaller than MobileNetV2-1.3 with comparable accuracy. Third, when exploring smaller input resolutions and channel scaling, tailored FBNets achieved 1.5% to 6.4% higher top-1 accuracy than scaled MobileNetV2 baselines, with the smallest FBNet reaching 50.2% accuracy at 2.9 ms latency (345 frames per second). Finally, the evaluation confirmed that model optimality is strictly device-dependent: a model tailored specifically for iPhone X ran 1.4 times faster on that device than a model optimized for Samsung S8 due to differing hardware operator efficiencies.

These findings imply that engineering teams can transition from one-size-fits-all neural networks to device- and use-case-specific designs without incurring massive computing costs. By factoring in physical runtime rather than abstract theoretical metrics, teams can substantially reduce inference delays, cut power consumption, and lower operational costs. The results also show that adapting model architecture to reduced image resolutions prevents redundant layer computations, further optimizing mobile execution.

Organizations deploying vision models on edge hardware should adopt hardware-aware, gradient-based search workflows to customize architectures for specific target processors. Deployment pipelines should measure operator-level runtimes on intended chips before model compilation rather than relying on theoretical FLOP counts. Future work should expand this search approach to broader vision tasks such as real-time object detection and segmentation, as well as additional hardware backends like digital signal processors and microcontrollers.

Confidence in these findings is supported by consistent benchmark validations across standard datasets and physical mobile hardware. However, readers should note that the latency lookup table assumes sequential, independent operator execution, an assumption that holds well for single-threaded mobile CPU and DSP inference but may require adjustments on hardware platforms with complex concurrent scheduling or heterogeneous memory hierarchies.

Meta Princeton University University of California Berkeley architecture designs frames gpu FBNet differentiable neural architecture search hardware-aware ConvNet design

arXiv: 1812.03443 facebookresearch/mobile-vision

Paper: MnasNet: Platform-Aware Neural Architecture Search for Mobile, Mingxing Tan et al. (2018). FBNet directly benchmarks against and seeks to overcome the high computational search cost of MnasNet's platform-aware reinforcement learning architecture search.
Paper: DARTS: Differentiable Architecture Search, Hanxiao Liu et al. (2018). DARTS provides the foundational continuous relaxation and gradient-based bilevel optimization principles that FBNet builds upon for differentiable neural architecture search.
Paper: MobileNetV2: Inverted Residuals and Linear Bottlenecks, Mark Sandler et al. (2018). FBNet builds directly upon the inverted residual and linear bottleneck building blocks introduced in MobileNetV2 to form its search space.
Paper: Efficient Neural Architecture Search via Parameter Sharing, Hieu Pham et al. (2018). ENAS introduces the concept of weight sharing over a supernet directed acyclic graph to drastically reduce the cost of neural architecture search.
Paper: ShuffleNet V2: Practical Guidelines for Efficient CNN Architecture Design, Ningning Ma et al. (2018). ShuffleNet V2 establishes the core motivation that hardware latency, rather than theoretical FLOP counts, must guide efficient network design.
Paper: MobileNets: Efficient Convolutional Neural Networks for Mobile Vision Applications, Andrew G. Howard et al. (2017). MobileNets establishes depthwise separable convolutions and efficiency trade-offs for mobile vision architectures that FBNet automates and optimizes.
Paper: Learning Transferable Architectures for Scalable Image Recognition, Barret Zoph et al. (2018). NASNet establishes the modular search-space paradigms and scalable vision transfer benchmarks that subsequent mobile NAS frameworks like FBNet refine.
Paper: Neural Architecture Search with Reinforcement Learning, Barret Zoph et al. (2016). This seminal paper introduces Neural Architecture Search using controllers and reinforcement learning, presenting the high-cost search baseline that differentiable methods aim to solve.

Paper: ProxylessNAS: Direct Neural Architecture Search on Target Task and Hardware, Han Cai et al. (2018). ProxylessNAS builds upon direct gradient-based hardware-aware NAS by introducing path binarization to reduce supernet memory overhead.
Paper: Searching for MobileNetV3, Andrew Howard et al. (2019). MobileNetV3 combines platform-aware automated search concepts with complementary layer-level optimizations like hard-swish and squeeze-and-excitation.
Paper: Once for All: Train One Network and Specialize it for Efficient Deployment, Han Cai et al. (2019). Once-for-All advances hardware-aware architecture search by decoupling supernet training from search to deploy specialized sub-networks without repeated retraining.
Paper: EfficientNet: Rethinking Model Scaling for Convolutional Neural Networks, Mingxing Tan et al. (2019). EfficientNet extends mobile-searched baseline ConvNets by establishing a systematic compound scaling method across depth, width, and resolution.
Paper: NAS-FPN: Learning Scalable Feature Pyramid Architecture for Object Detection, Golnaz Ghiasi et al. (2019). NAS-FPN applies automated architecture search concepts to learn cross-scale feature pyramid connections for downstream object detection.
Paper: EfficientNetV2: Smaller Models and Faster Training, Mingxing Tan et al. (2021). EfficientNetV2 incorporates training-speed-aware search and fused inverted bottleneck operations to further optimize mobile-derived architectures.
Paper: EfficientDet: Scalable and Efficient Object Detection, Mingxing Tan et al. (2020). EfficientDet integrates scalable, efficient ConvNet backbones with learned bidirectional feature networks for resource-constrained object detection.
Paper: GhostNet: More Features From Cheap Operations, Kai Han et al. (2019). GhostNet introduces cheap linear operations to generate redundant feature maps within lightweight mobile ConvNet layouts like those generated by FBNet.

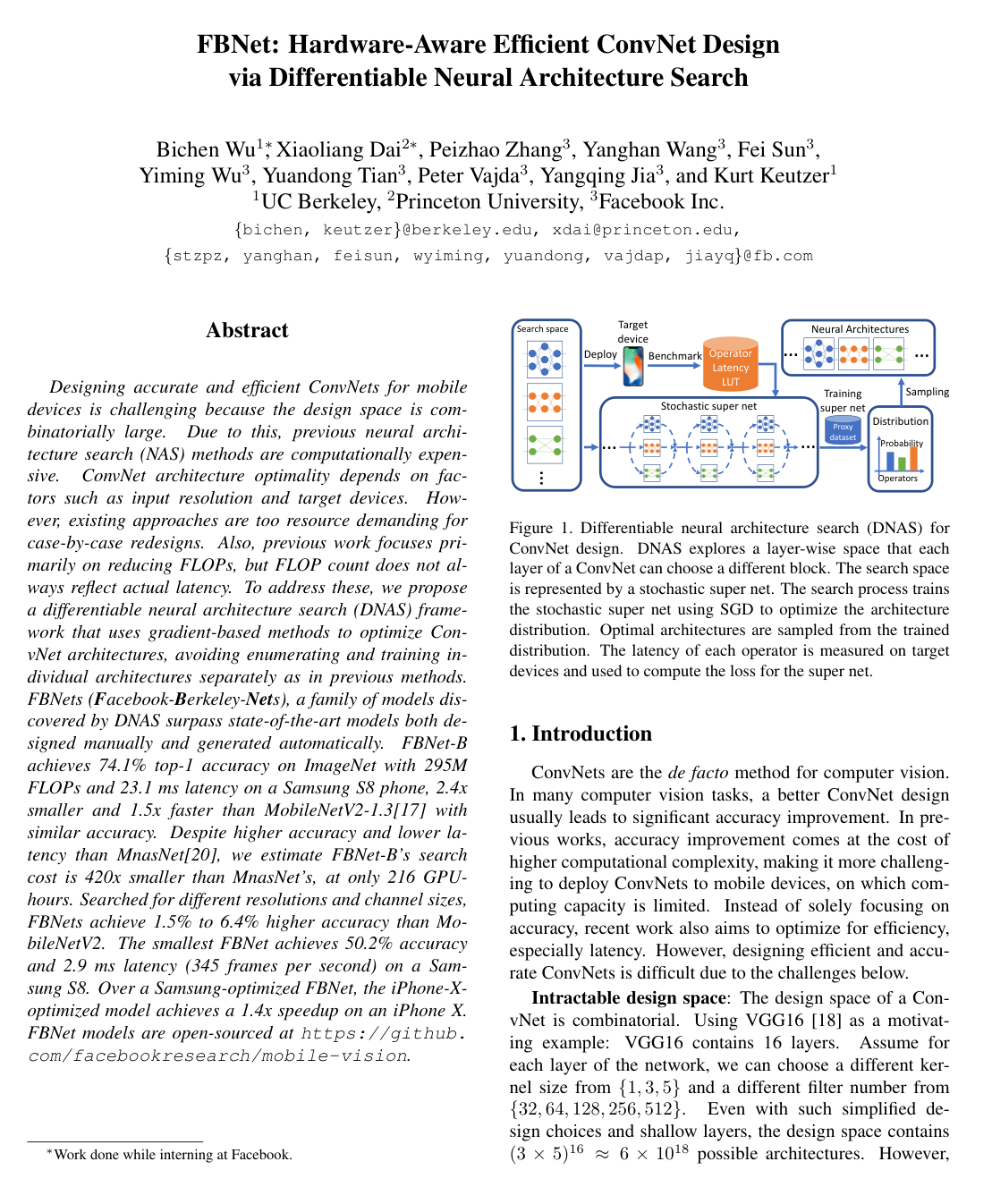

Cover for FBNet: Hardware-Aware Efficient ConvNet Design via Differentiable Neural Architecture Search

Abstract

Designing accurate and efficient ConvNets for mobile devices is challenging because the design space is combinatorially large. Due to this, previous neural architecture search (NAS) methods are computationally expensive. ConvNet architecture optimality depends on factors such as input resolution and target devices. However, existing approaches are too expensive for case-by-case redesigns. Also, previous work focuses primarily on reducing FLOPs, but FLOP count does not always reflect actual latency. To address these, we propose a differentiable neural architecture search (DNAS) framework that uses gradient-based methods to optimize ConvNet architectures, avoiding enumerating and training individual architectures separately as in previous methods. FBNets, a family of models discovered by DNAS surpass state-of-the-art models both designed manually and generated automatically. FBNet-B achieves 74.1% top-1 accuracy on ImageNet with 295M FLOPs and 23.1 ms latency on a Samsung S8 phone, 2.4x smaller and 1.5x faster than MobileNetV2-1.3 with similar accuracy. Despite higher accuracy and lower latency than MnasNet, we estimate FBNet-B's search cost is 420x smaller than MnasNet's, at only 216 GPU-hours. Searched for different resolutions and channel sizes, FBNets achieve 1.5% to 6.4% higher accuracy than MobileNetV2. The smallest FBNet achieves 50.2% accuracy and 2.9 ms latency (345 frames per second) on a Samsung S8. Over a Samsung-optimized FBNet, the iPhone-X-optimized model achieves a 1.4x speedup on an iPhone X.

Topics

architecture designs frames gpu iphone

Keywords

FBNet differentiable neural architecture search hardware-aware ConvNet design layer-wise search space Gumbel Softmax depthwise convolution convolutional neural networks ShuffleNet V2

1 Introduction
2 Related work
3 Method
3.1 The Search Space
3.2 Latency-Aware Loss Function
3.3 The Search Algorithm
4 Experiments
4.1 ImageNet Classification
4.2 Different Resolution and Channel Size Scaling
4.3 Different Target Devices
5 Conclusion
References
A Experiment details

Knowls

Knowl 1 — Differentiable Neural Architecture Search via Gumbel-Softmax Relaxation
model/method
Differentiable Neural Architecture Search (DNAS) formulates neural architecture search over a discrete candidate space $\mathcal{A}$ as a continuous stochastic supernet optimization problem:

$\min_{\theta} \min_{w} \mathbb{E}_{a \sim P_\theta} \left[ \mathcal{L}(a, w) \right]$

where $\theta$ parameterizes the architecture distribution, $w$ denotes the shared operator weights within the stochastic supernet, and $\mathcal{L}(a, w)$ is the multi-objective loss function.

In a supernet comprising $L$ sequential layers, each layer $l \in \{1, \dots, L\}$ contains $N$ parallel candidate block operations $\{b_{l,i}\}_{i=1}^N$ . The discrete sampling probability of selecting block $b_{l,i}$ at layer $l$ is parameterized by a real-valued vector $\theta_l = (\theta_{l,1}, \dots, \theta_{l,N})$ via the softmax function:

$P_{\theta_l}(b_l = b_{l,i}) = \frac{\exp(\theta_{l,i})}{\sum_{j=1}^N \exp(\theta_{l,j})}$

Assuming independent layer-wise sampling, the joint probability of an entire network architecture $a = (b_1, \dots, b_L)$ is given by:

$P_\theta(a) = \prod_{l=1}^L P_{\theta_l}\left(b_l = b_{l,i}^{(a)}\right)$

To enable end-to-end backpropagation with respect to architecture parameters $\theta$ , the discrete selection mask $m_{l,i} \in \{0, 1\}$ is relaxed into a continuous random variable using the Gumbel-Softmax reparameterization:

$m_{l,i} = \text{GumbelSoftmax}(\theta_{l,i} \mid \theta_l) = \frac{\exp\left( (\theta_{l,i} + g_{l,i}) / \tau \right)}{\sum_{j=1}^N \exp\left( (\theta_{l,j} + g_{l,j}) / \tau \right)}$

where $g_{l,i} \sim \text{Gumbel}(0, 1) = -\log(-\log(u_{l,i}))$ with $u_{l,i} \sim \text{Uniform}(0, 1)$ , and $\tau > 0$ is a temperature hyperparameter. As $\tau \to 0$ , $m_{l,i}$ approaches a one-hot categorical sample, while for $\tau > 0$ , $m_{l,i}$ remains continuously differentiable with respect to $\theta_{l,i}$ .

The forward activation at layer $l+1$ given input feature map $x_l$ is the mask-weighted sum of all candidate block outputs:

$x_{l+1} = \sum_{i=1}^N m_{l,i} \cdot b_{l,i}(x_l)$
Knowl 2 — Hardware-Aware Differentiable Latency Loss Function and Lookup Model
equation
The multi-objective loss function balances task prediction accuracy with physical device execution latency:

$\mathcal{L}(a, w) = \text{CE}(a, w) \cdot \alpha \left[ \log\left( \text{LAT}(a) \right) \right]^\beta$

where $\text{CE}(a, w)$ denotes the cross-entropy classification loss of architecture $a$ with weights $w$ , $\text{LAT}(a)$ is the total network latency on the target hardware measured in microseconds ( $\mu\text{s}$ ), $\alpha > 0$ is a scaling coefficient controlling the overall loss magnitude (set to $0.2$ ), and $\beta > 0$ is an exponent modulating the latency penalty (set to $0.6$ ).

Under an additive lookup table (LUT) runtime model, total network latency is estimated by summing the pre-measured runtimes of its constituent layer blocks:

$\text{LAT}(a) = \sum_{l=1}^L \text{LAT}\left(b_l^{(a)}\right)$

Under the continuous Gumbel-Softmax relaxation, the latency term becomes:

$\text{LAT}(a) = \sum_{l=1}^L \sum_{i=1}^N m_{l,i} \cdot \text{LAT}(b_{l,i})$

where $\text{LAT}(b_{l,i})$ is the measured runtime of candidate block $i$ at layer $l$ on the target device (a constant coefficient stored in the lookup table), and $m_{l,i}$ is the Gumbel-Softmax continuous mask. Because $\text{LAT}(b_{l,i})$ is constant, $\text{LAT}(a)$ is directly differentiable with respect to $m_{l,i}$ and $\theta_{l,i}$ , enabling joint gradient-based optimization of task loss and hardware runtime.
Knowl 3 — Layer-Wise Macro-Architecture and Candidate Block Search Space
model/method
The architecture search space consists of a fixed macro-architecture template containing 22 searchable layers (TBS: "To Be Searched"), yielding a discrete combinatorial space of $9^{22} \approx 9.85 \times 10^{20}$ possible networks.

The macro-architecture is organized into sequential stages with fixed output channel dimensions $f$ , number of blocks $n$ , and stage strides $s$ :
- Stage 0: Input $224 \times 224 \times 3$ , fixed $3\times 3$ standard convolution ( $f=16, n=1, s=2$ ).
- Stage 1: 1 TBS block ( $f=16, n=1, s=1$ ).
- Stage 2: 4 TBS blocks ( $f=24, n=4, s=2$ for the first block, $s=1$ thereafter).
- Stage 3: 4 TBS blocks ( $f=32, n=4, s=2$ for the first block, $s=1$ thereafter).
- Stage 4: 4 TBS blocks ( $f=64, n=4, s=2$ for the first block, $s=1$ thereafter).
- Stage 5: 4 TBS blocks ( $f=112, n=4, s=1$ ).
- Stage 6: 4 TBS blocks ( $f=184, n=4, s=2$ for the first block, $s=1$ thereafter).
- Stage 7: 1 TBS block ( $f=352, n=1, s=1$ ).
- Head: Fixed $1\times 1$ convolution ( $f=1504$ for FBNet-A, $f=1984$ for FBNet-B and FBNet-C, $n=1, s=1$ ), followed by $7\times 7$ global average pooling and a fully connected classification layer (1000 outputs).
Each searchable layer selects from 9 candidate block options:
1. k3_e1: Kernel size $K=3$ , expansion factor $e=1$ , group count $g=1$ .
2. k3_e1_g2: Kernel size $K=3$ , expansion factor $e=1$ , group count $g=2$ (with channel shuffle).
3. k3_e3: Kernel size $K=3$ , expansion factor $e=3$ , group count $g=1$ .
4. k3_e6: Kernel size $K=3$ , expansion factor $e=6$ , group count $g=1$ .
5. k5_e1: Kernel size $K=5$ , expansion factor $e=1$ , group count $g=1$ .
6. k5_e1_g2: Kernel size $K=5$ , expansion factor $e=1$ , group count $g=2$ (with channel shuffle).
7. k5_e3: Kernel size $K=5$ , expansion factor $e=3$ , group count $g=1$ .
8. k5_e6: Kernel size $K=5$ , expansion factor $e=6$ , group count $g=1$ .
9. skip: Identity shortcut forwarding the input without computation (allowing dynamic depth reduction).
Every non-skip candidate block executes a $1\times 1$ pointwise (or group) convolution with ReLU expanding channels by factor $e$ , followed by a $K\times K$ depthwise convolution with ReLU, followed by a $1\times 1$ projection (or group) convolution without activation. If input and output spatial and channel dimensions match, an identity residual shortcut is added.
Knowl 4 — DNAS Stochastic Supernet Optimization Algorithm
algorithm
The DNAS procedure optimizes the continuous architecture distribution over the supernet before sampling discrete networks.
Input: Training dataset $D$ , validation proxy dataset $D_{\text{val}}$ , operator latency lookup table $\text{LUT}$ , number of search epochs $E = 90$ , warmup delay $E_{\text{delay}} = 10$ , initial temperature $\tau_0 = 5.0$ , temperature decay rate $\gamma = \exp(-0.045) \approx 0.956$ , loss coefficients $\alpha = 0.2$ , $\beta = 0.6$ .
Output: Sampled optimal discrete architectures $\{a^*\}$ .
Initialize supernet operator weights $w$ randomly.
Initialize architecture distribution parameters $\theta = \mathbf{0}$ .
Set current temperature $\tau \leftarrow \tau_0$ .
for epoch $e = 1$ to $E$ do
    for each minibatch $(x_w, y_w)$ in training partition ( $80\%$ of $D$ ) do
        Sample Gumbel noise $g_{l,i} \sim \text{Gumbel}(0, 1)$ for all layers $l$ and blocks $i$ .
        Compute relaxation masks $m_{l,i} \leftarrow \text{GumbelSoftmax}(\theta_{l,i} \mid \theta_l, \tau)$ .
        Compute forward activations and latency $\text{LAT}(a) \leftarrow \sum_{l,i} m_{l,i} \cdot \text{LUT}[b_{l,i}]$ .
        Compute loss $\mathcal{L} \leftarrow \text{CE}(x_w, y_w, w) \cdot \alpha [\log(\text{LAT}(a))]^\beta$ .
        Update operator weights $w \leftarrow w - \eta_w \nabla_w \mathcal{L}$ via SGD with momentum.
    end for
    if epoch $e > E_{\text{delay}}$ then
        for each minibatch $(x_\theta, y_\theta)$ in architecture partition ( $20\%$ of $D$ ) do
            Sample Gumbel noise $g_{l,i} \sim \text{Gumbel}(0, 1)$ for all layers $l$ and blocks $i$ .
            Compute relaxation masks $m_{l,i} \leftarrow \text{GumbelSoftmax}(\theta_{l,i} \mid \theta_l, \tau)$ .
            Compute loss $\mathcal{L} \leftarrow \text{CE}(x_\theta, y_\theta, w) \cdot \alpha [\log(\text{LAT}(a))]^\beta$ .
            Update architecture parameters $\theta \leftarrow \theta - \eta_\theta \nabla_\theta \mathcal{L}$ via Adam optimizer.
        end for
    end if
    Update temperature $\tau \leftarrow \tau \cdot \gamma$ .
end for
Sample discrete architectures $a^* \sim P_\theta(a)$ by drawing block choices according to $P_{\theta_l}(b_l = b_{l,i}) = \text{softmax}(\theta_{l,i})$ .
return Sampled architectures $\{a^*\}$ .
Knowl 5 — Experimental Protocol for DNAS Search and Model Training
experimental setup
The experimental evaluation proceeds in two stages: architecture search via stochastic supernet optimization, followed by training sampled candidate architectures from scratch on ImageNet 2012.
- Supernet Search Stage:
  - Dataset: A proxy dataset comprising 100 randomly sampled classes from ImageNet-1k.
  - Data Split: $80\%$ of the proxy training set is used to train operator weights $w$ ; $20\%$ is reserved for updating architecture parameters $\theta$ .
  - Epochs and Batch Size: 90 epochs with a total batch size of 192.
  - Weight Optimizer: SGD with momentum of 0.9, weight decay of $10^{-4}$ , and initial learning rate of 0.1 following a cosine annealing schedule.
  - Architecture Optimizer: Adam optimizer with learning rate $10^{-2}$ and weight decay $5 \times 10^{-4}$ . Architecture parameter updates are delayed for the first 10 epochs ( $E_{\text{delay}} = 10$ ) to warm up operator weights.
  - Gumbel-Softmax Temperature: Initial temperature $\tau = 5.0$ , exponentially decayed by a factor of $\exp(-0.045) \approx 0.956$ every epoch.
  - Loss Parameters: $\alpha = 0.2$ and $\beta = 0.6$ .
  - Compute Budget: 216 GPU-hours total (8 GPUs for 27 hours).
- Final Training From Scratch Stage:
  - Models: 6 architectures sampled from the final distribution $P_\theta$ .
  - Dataset: Full 1,000-class ImageNet 2012 (224 input resolution, 1.0 channel scaling for FBNet-{A, B, C}).
  - Epochs and Batch Size: 360 epochs with a batch size of 256 distributed across 8 GPUs.
  - Optimizer: SGD with initial learning rate 0.1, decayed by $10\times$ at epochs 90, 180, and 270; momentum 0.9; weight decay $4 \times 10^{-5}$ .
  - Regularization and Augmentation: Dropout with ratio 0.2 before the final fully connected layer; standard GoogleNet inception data augmentation.
  - Inference Deployment: Caffe2 with INT8 mobile inference engine on a Samsung Galaxy S8 (Snapdragon 835 platform) and an iPhone X (A11 Bionic processor).

Knowl 6 — ImageNet Classification Benchmark: FBNets vs. Manual and NAS Baselines

data/table

The discovered FBNet architectures (FBNet-A, FBNet-B, FBNet-C) outperform both manually designed mobile networks (MobileNetV2, ShuffleNetV2, CondenseNet) and automated NAS models (DARTS, MnasNet, NASNet-A, PNASNet) in ImageNet top-1 accuracy, FLOP efficiency, and measured CPU latency on a Samsung Galaxy S8, while reducing search cost by orders of magnitude.

Model	Search Method	Search Space	Search Cost (GPU-h / rel.)	#Params	#FLOPs	S8 CPU Latency	Top-1 Acc (%)
1.0-MobileNetV2	manual	-	-	3.4M	300M	21.7 ms	72.0
1.5-ShuffleNetV2	manual	-	-	3.5M	299M	22.0 ms	72.6
CondenseNet (G=C=8)	manual	-	-	2.9M	274M	28.4 ms	71.0
MnasNet-65	RL	stage-wise	91K / 421x	3.6M	270M	-	73.0
DARTS	gradient	cell	288 / 1.33x	4.9M	595M	-	73.1
FBNet-A (ours)	gradient	layer-wise	216 / 1.0x	4.3M	249M	19.8 ms	73.0
1.3-MobileNetV2	manual	-	-	5.3M	509M	33.8 ms	74.4
CondenseNet (G=C=4)	manual	-	-	4.8M	529M	28.7 ms	73.8
MnasNet	RL	stage-wise	91K / 421x	4.2M	317M	23.7 ms	74.0
NASNet-A	RL	cell	48K / 222x	5.3M	564M	-	74.0
PNASNet	SMBO	cell	6K / 27.8x	5.1M	588M	-	74.2
FBNet-B (ours)	gradient	layer-wise	216 / 1.0x	4.5M	295M	23.1 ms	74.1
1.4-MobileNetV2	manual	-	-	6.9M	585M	37.4 ms	74.7
2.0-ShuffleNetV2	manual	-	-	7.4M	591M	33.3 ms	74.9
MnasNet-92	RL	stage-wise	91K / 421x	4.4M	388M	-	74.8
FBNet-C (ours)	gradient	layer-wise	216 / 1.0x	5.5M	375M	28.1 ms	74.9

Key highlights:

FBNet-A achieves $73.0\%$ accuracy with 249M FLOPs and 19.8 ms latency, operating 1.9 ms faster than 1.0-MobileNetV2 and 2.2 ms faster than 1.5-ShuffleNetV2.
FBNet-B achieves $74.1\%$ accuracy with 295M FLOPs and 23.1 ms latency, running $1.46\times$ faster with $1.73\times$ fewer FLOPs than 1.3-MobileNetV2, while matching MnasNet accuracy at $421\times$ lower search cost (216 vs. estimated 91,000 GPU-hours).
FBNet-C matches 2.0-ShuffleNetV2 at $74.9\%$ accuracy while executing $1.19\times$ faster (28.1 ms vs. 33.3 ms) with $1.58\times$ fewer FLOPs (375M vs. 591M).

Knowl 7 — Architecture Adaptation to Input Resolution and Channel Scaling

data/table

Searching for architecture configurations tailored directly to specific input resolutions and channel width multipliers yields consistent top-1 accuracy gains of $+1.5\%$ to $+6.4\%$ over uniformly scaled MobileNetV2 baselines under matching runtime budgets.

Input Size Channel Scaling	Model	#Params	#FLOPs	CPU Latency	Top-1 Acc (%)
(224, 0.35)	MobileNetV2-224-0.35	1.7M	59M	9.3 ms	60.3
	MnasNet-scale-224-0.35	1.9M	76M	10.7 ms	62.4 (+2.1)
	FBNet-224-0.35 (ours)	2.0M	72M	10.7 ms	65.3 (+5.0)
(192, 0.50)	MobileNetV2	2.0M	71M	8.4 ms	63.9
	MnasNet-search-192-0.5	-	-	-	65.6 (+1.7)
	FBNet-192-0.5 (ours)	2.6M	73M	9.9 ms	65.9 (+2.0)
(128, 1.0)	MobileNetV2	3.5M	99M	8.4 ms	65.3
	MnasNet-scale-128-1.0	4.2M	103M	9.2 ms	67.3 (+2.0)
	FBNet-128-1.0 (ours)	4.2M	92M	9.0 ms	67.0 (+1.7)
(128, 0.50)	MobileNetV2	2.0M	32M	4.8 ms	57.7
	FBNet-128-0.5 (ours)	2.4M	32M	5.1 ms	60.0 (+2.3)
(96, 0.35)	MobileNetV2	1.7M	11M	3.8 ms	45.5
	FBNet-96-0.35-1 (ours)	1.8M	12.9M	2.9 ms	50.2 (+4.7)
	FBNet-96-0.35-2 (ours)	1.9M	13.7M	3.6 ms	51.9 (+6.4)

Notable findings:

At $(224, 0.35)$ , FBNet-224-0.35 achieves $65.3\%$ accuracy, outperforming MobileNetV2 by $+5.0\%$ and MnasNet-scale by $+2.1\%$ .
At $(96, 0.35)$ , FBNet-96-0.35-1 achieves $50.2\%$ accuracy with 2.9 ms latency (345 frames per second on a Samsung Galaxy S8), running faster and achieving $+4.7\%$ higher accuracy than MobileNetV2 ( $45.5\%$ at 3.8 ms).
FBNet-96-0.35-2 pushes top-1 accuracy to $51.9\%$ ( $+6.4\%$ over MobileNetV2) at 3.6 ms latency.

Knowl 8 — Device-Specific Architecture Optimization on Mobile Hardware

data/table

Because operator execution efficiency varies across hardware platforms, ConvNets optimized for a specific processor do not transfer optimally to another. Searching specifically for target device runtimes yields substantial hardware-specific speedups.

Cross-device evaluation shows:

FBNet-iPhoneX achieves 19.84 ms on iPhone X, but slows down to 23.33 ms when deployed on Samsung Galaxy S8.
FBNet-S8 achieves 22.12 ms on Samsung Galaxy S8, but its latency increases to 27.53 ms on iPhone X—a 7.69 ms (relative $39\%$ ) latency penalty compared to FBNet-iPhoneX.
Over the Samsung-optimized model, the iPhone-X-optimized model attains a $1.39\times$ ( $1.4\times$ ) speedup on an iPhone X at equivalent ImageNet accuracy ( $73.20\%$ vs. $73.27\%$ ).

Knowl 9 — Hardware Operator Preferences and Resolution-Induced Structural Adaptation
empirical result
DNAS exhibits distinct architectural specialization patterns based on target hardware and input resolution:
1. Hardware-Specific Operator Preference:
  - On the Samsung Galaxy S8 (Snapdragon 835 platform), $5\times 5$ depthwise convolutions with large channel dimensions (such as spatial/channel configurations $28\times 28 \times 192$ , $14\times 14 \times 192$ , and $14\times 14 \times 336$ ) execute significantly faster than on iPhone X. Consequently, FBNet-S8 utilizes $5\times 5$ depthwise convolutions extensively throughout its early, middle, and late layers.
  - On the iPhone X (A11 Bionic processor), $3\times 3$ depthwise convolutions are substantially more efficient than $5\times 5$ depthwise convolutions. As a result, FBNet-iPhoneX adopts $3\times 3$ depthwise convolutions almost exclusively, restricting $5\times 5$ operations strictly to the final two stages.
2. Resolution-Dependent Network Depth:
  - When searching under reduced input resolutions (e.g., $96\times 96$ in FBNet-96-0.35-1), DNAS heavily selects the skip block across multiple intermediate layers, producing a markedly shallower network compared to $224\times 224$ models (FBNet-{A, B, C}).
  - This structural adaptation aligns with receptive field mechanics: smaller input images require smaller receptive fields to cover the feature space, making deep redundant layers suboptimal for accuracy and efficiency.
Knowl 10 — Latency Additivity Assumption for Mobile Processors
assumption
The DNAS latency lookup table (LUT) model relies on the assumption of operator runtime additivity:

$\text{LAT}(a) = \sum_{l=1}^L \text{LAT}\left(b_l^{(a)}\right)$

This formulation assumes that the execution runtime of an entire neural network on target embedded processors (such as mobile CPUs and DSPs) equals the independent sum of the runtimes of each constituent layer block $b_l^{(a)}$ .

This assumption holds in runtime environments (such as Caffe2 with INT8 inference) where operators execute sequentially one by one without asynchronous pipeline concurrency or inter-layer operator fusion across block boundaries. Under this condition, pre-measuring a few hundred individual operator latencies allows exact linear estimation of all $10^{21}$ candidate networks in the search space.

Coverage note — None was omitted; all key contributions including DNAS formulation, latency modeling, search space, supernet optimization algorithm, ImageNet benchmarks, resolution/channel scaling, cross-hardware specialization, and structural analyses are fully covered.

References

1.Anonymous. Snas: stochastic neural architecture search. In Submitted to International Conference on Learning Representations, 2019. under review.
2.J. Deng, W. Dong, R. Socher, L.-J. Li, K. Li, and L. Fei-Fei. Imagenet: A large-scale hierarchical image database. In Computer Vision and Pattern Recognition, 2009. CVPR 2009. IEEE Conference on, pages 248–255. Ieee, 2009.
3.A. Gholami, K. Kwon, B. Wu, Z. Tai, X. Yue, P. Jin, S. Zhao, and K. Keutzer. Squeezenext: Hardware-aware neural network design. arXiv preprint arXiv:1803.10615, 2018.
4.K. He, X. Zhang, S. Ren, and J. Sun. Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 770–778, 2016.
5.Y. He, J. Lin, Z. Liu, H. Wang, L.-J. Li, and S. Han. Amc: Automl for model compression and acceleration on mobile devices. In Proceedings of the European Conference on Computer Vision (ECCV), pages 784–800, 2018.
6.A. G. Howard, M. Zhu, B. Chen, D. Kalenichenko, W. Wang, T. Weyand, M. Andreetto, and H. Adam. Mobilenets: Efficient convolutional neural networks for mobile vision applications. arXiv preprint arXiv:1704.04861, 2017.
7.G. Huang, S. Liu, L. van der Maaten, and K. Q. Weinberger. Condensenet: An efficient densenet using learned group convolutions. group, 3(12):11, 2017.
8.F. N. Iandola, S. Han, M. W. Moskewicz, K. Ashraf, W. J. Dally, and K. Keutzer. Squeezenet: Alexnet-level accuracy with 50x fewer parameters and< 0.5 mb model size. arXiv preprint arXiv:1602.07360, 2016.
9.E. Jang, S. Gu, and B. Poole. Categorical reparameterization with gumbel-softmax. arXiv preprint arXiv:1611.01144, 2016.
10.D. P. Kingma and J. Ba. Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980, 2014.
11.C. Liu, B. Zoph, J. Shlens, W. Hua, L.-J. Li, L. Fei-Fei, A. Yuille, J. Huang, and K. Murphy. Progressive neural architecture search. arXiv preprint arXiv:1712.00559, 2017.
12.H. Liu, K. Simonyan, and Y. Yang. Darts: Differentiable architecture search. arXiv preprint arXiv:1806.09055, 2018.
13.N. Ma, X. Zhang, H.-T. Zheng, and J. Sun. Shufflenet v2: Practical guidelines for efficient cnn architecture design. arXiv preprint arXiv:1807.11164, 2018.
14.C. J. Maddison, A. Mnih, and Y. W. Teh. The concrete distribution: A continuous relaxation of discrete random variables. arXiv preprint arXiv:1611.00712, 2016.
15.A. Paszke, S. Gross, S. Chintala, G. Chanan, E. Yang, Z. DeVito, Z. Lin, A. Desmaison, L. Antiga, and A. Lerer. Automatic differentiation in pytorch. 2017.
16.H. Pham, M. Y. Guan, B. Zoph, Q. V. Le, and J. Dean. Efficient neural architecture search via parameter sharing. arXiv preprint arXiv:1802.03268, 2018.
17.M. Sandler, A. Howard, M. Zhu, A. Zhmoginov, and L.-C. Chen. Mobilenetv2: Inverted residuals and linear bottlenecks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 4510–4520, 2018.
18.K. Simonyan and A. Zisserman. Very deep convolutional networks for large-scale image recognition. arXiv preprint arXiv:1409.1556, 2014.
19.C. Szegedy, W. Liu, Y. Jia, P. Sermanet, S. Reed, D. Anguelov, D. Erhan, V. Vanhoucke, and A. Rabinovich. Going deeper with convolutions. In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 1–9, 2015.
20.M. Tan, B. Chen, R. Pang, V. Vasudevan, and Q. V. Le. Mnasnet: Platform-aware neural architecture search for mobile. arXiv preprint arXiv:1807.11626, 2018.
21.T. Veniat and L. Denoyer. Learning time/memory-efficient deep architectures with budgeted super networks. arXiv preprint arXiv:1706.00046, 2017.
22.B. Wu, F. N. Iandola, P. H. Jin, and K. Keutzer. Squeezedet: Unified, small, low power fully convolutional neural networks for real-time object detection for autonomous driving. In CVPR Workshops, pages 446–454, 2017.
23.B. Wu, A. Wan, X. Yue, P. Jin, S. Zhao, N. Golmant, A. Gholaminejad, J. Gonzalez, and K. Keutzer. Shift: A zero flop, zero parameter alternative to spatial convolutions. arXiv preprint arXiv:1711.08141, 2017.
24.B. Wu, A. Wan, X. Yue, and K. Keutzer. Squeezeseg: Convolutional neural nets with recurrent crf for real-time road-object segmentation from 3d lidar point cloud. In 2018 IEEE International Conference on Robotics and Automation (ICRA), pages 1887–1893. IEEE, 2018.
25.B. Wu, Y. Wang, P. Zhang, Y. Tian, P. Vajda, and K. Keutzer. Mixed precision quantization of convnets via differentiable neural architecture search. arXiv preprint arXiv:1812.00090, 2018.
26.B. Wu, X. Zhou, S. Zhao, X. Yue, and K. Keutzer. Squeezesegv2: Improved model structure and unsupervised domain adaptation for road-object segmentation from a lidar point cloud. arXiv preprint arXiv:1809.08495, 2018.
27.T.-J. Yang, A. Howard, B. Chen, X. Zhang, A. Go, M. Sandler, V. Sze, and H. Adam. Netadapt: Platform-aware neural network adaptation for mobile applications. Energy, 41:46, 2018.
28.Y. Yang, Q. Huang, B. Wu, T. Zhang, L. Ma, G. Gambardella, M. Blott, L. Lavagno, K. Vissers, J. Wawrzynek, et al. Synetgy: Algorithm-hardware co-design for convnet accelerators on embedded fpgas. arXiv preprint arXiv:1811.08634, 2018.
29.X. Zhang, X. Zhou, M. Lin, and J. Sun. Shufflenet: An extremely efficient convolutional neural network for mobile devices. arxiv 2017. arXiv preprint arXiv:1707.01083.
30.B. Zoph and Q. V. Le. Neural architecture search with reinforcement learning. arXiv preprint arXiv:1611.01578, 2016.
31.B. Zoph, V. Vasudevan, J. Shlens, and Q. V. Le. Learning transferable architectures for scalable image recognition. arXiv preprint arXiv:1707.07012, 2(6), 2017.

Citation

MLA

Wu, B., et al. “FBNet: Hardware-Aware Efficient ConvNet Design via Differentiable Neural Architecture Search”. arXiv, 2018, http://arxiv.org/abs/1812.03443v3.

APA

Wu, B., Dai, X., Zhang, P., Wang, Y., Sun, F., Wu, Y., Tian, Y., Vajda, P., Jia, Y., & Keutzer, K. (2018). FBNet: Hardware-Aware Efficient ConvNet Design via Differentiable Neural Architecture Search. arXiv. http://arxiv.org/abs/1812.03443v3

Chicago

Wu, B., X. Dai, P. Zhang, et al. 2018. “FBNet: Hardware-Aware Efficient ConvNet Design via Differentiable Neural Architecture Search”. arXiv. http://arxiv.org/abs/1812.03443v3.

Harvard

Wu, B. et al. (2018) “FBNet: Hardware-Aware Efficient ConvNet Design via Differentiable Neural Architecture Search”, arXiv [Preprint]. Available at: http://arxiv.org/abs/1812.03443v3.

Vancouver

1. Wu B, Dai X, Zhang P, Wang Y, Sun F, Wu Y, Tian Y, Vajda P, Jia Y, Keutzer K (2018) FBNet: Hardware-Aware Efficient ConvNet Design via Differentiable Neural Architecture Search. arXiv

BibTeX

@article{wu2018fbnet,
  title = {FBNet: Hardware-Aware Efficient ConvNet Design via Differentiable Neural Architecture Search},
  author = {Wu, Bichen and Dai, Xiaoliang and Zhang, Peizhao and Wang, Yanghan and Sun, Fei and Wu, Yiming and Tian, Yuandong and Vajda, Peter and Jia, Yangqing and Keutzer, Kurt},
  year = {2018},
  journal = {arXiv},
  url = {http://arxiv.org/abs/1812.03443v3},
  eprint = {1812.03443}
}

Metadata:arXiv

Source Code

This paper has an official code repository available. Click below to access the source code.

View Repository

Access the Paper

This paper is available from its original source. Click below to access the PDF.

Open PDF

License: IEEE

Model	#Params	#FLOPs	Latency on iPhone X	Latency on Samsung S8	Top-1 Acc (%)
FBNet-iPhoneX	4.47M	322M	19.84 ms (target)	23.33 ms	73.20
FBNet-S8	4.43M	293M	27.53 ms	22.12 ms (target)	73.27

FBNet: Hardware-Aware Efficient ConvNet Design via Differentiable Neural Architecture Search

Abstract

Topics

Keywords

Table of Contents

Knowls

Knowl 1 — Differentiable Neural Architecture Search via Gumbel-Softmax Relaxation

Knowl 2 — Hardware-Aware Differentiable Latency Loss Function and Lookup Model

Knowl 3 — Layer-Wise Macro-Architecture and Candidate Block Search Space

Knowl 4 — DNAS Stochastic Supernet Optimization Algorithm

Knowl 5 — Experimental Protocol for DNAS Search and Model Training

Knowl 6 — ImageNet Classification Benchmark: FBNets vs. Manual and NAS Baselines

Knowl 7 — Architecture Adaptation to Input Resolution and Channel Scaling

Knowl 8 — Device-Specific Architecture Optimization on Mobile Hardware

Knowl 9 — Hardware Operator Preferences and Resolution-Induced Structural Adaptation

Knowl 10 — Latency Additivity Assumption for Mobile Processors

References

Citation

BibTeX

Source Code

Access the Paper
