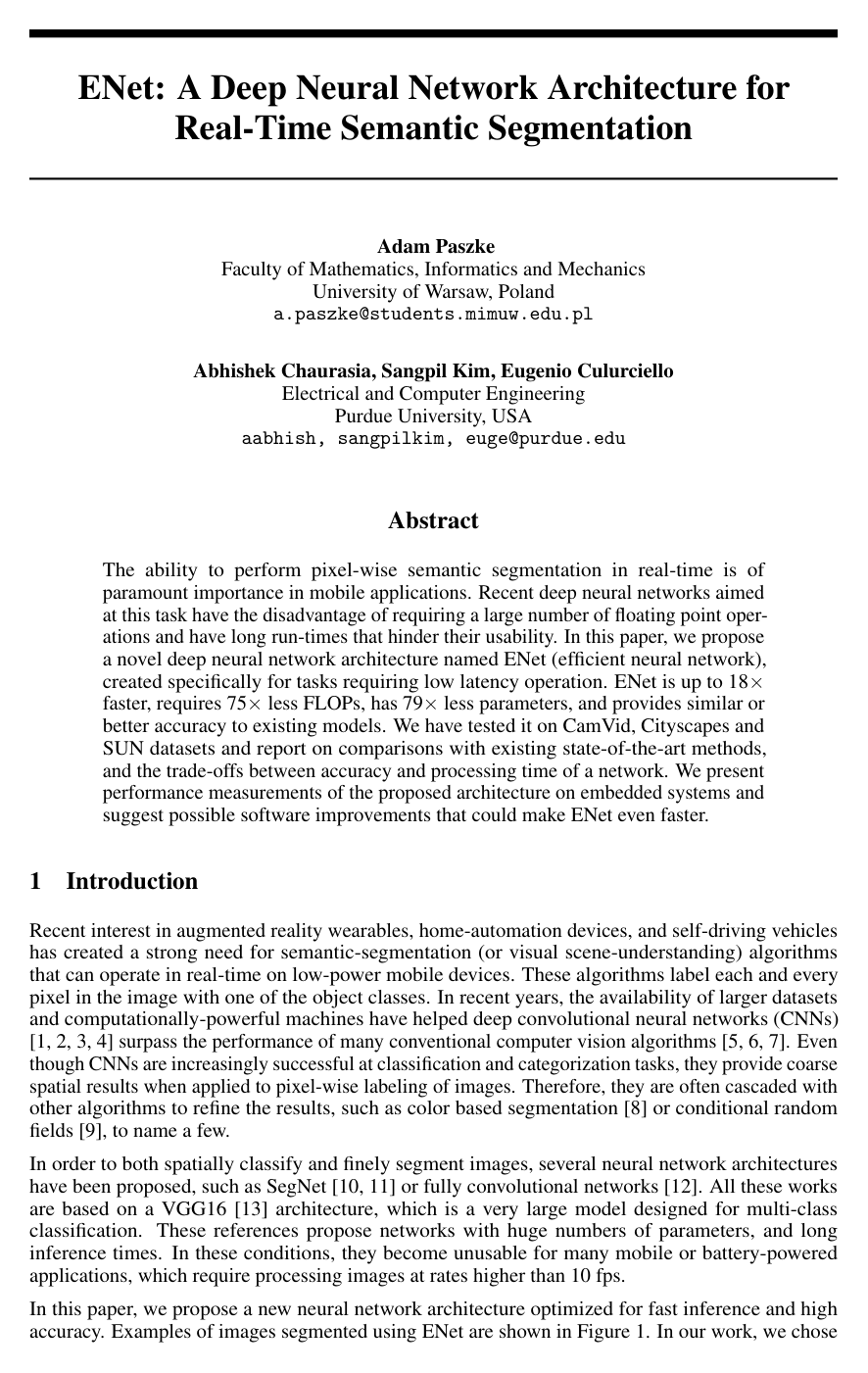

ENet: A Deep Neural Network Architecture for Real-Time Semantic Segmentation
Adam PaszkeAbhishek ChaurasiaSangpil KimEugenio Culurciello
Proposes ENet, a lightweight deep neural network architecture that enables real-time semantic segmentation on resource-constrained embedded devices by reducing computational cost and parameter size by over an order of magnitude without sacrificing accuracy.
Real-time visual scene understanding—labeling every pixel in an image with its corresponding object class—is critical for autonomous vehicles, augmented reality headsets, and mobile robotics. However, existing high-performing deep learning models are computationally prohibitive. Because they rely on massive network architectures that require billions of operations, they cannot achieve the low-latency processing necessary for battery-powered or embedded mobile devices.
This article introduces and evaluates ENet (Efficient Neural Network), an extremely compact deep neural network architecture designed from the ground up for low latency and high accuracy in real-time visual segmentation tasks.
The authors conducted empirical performance and accuracy evaluations across three established benchmark datasets: Cityscapes and CamVid for autonomous driving environments, and SUN RGB-D for indoor scenes. ENet's efficiency and latency were measured against the standard baseline model, SegNet, on both an embedded mobile board (NVIDIA Jetson TX1) and a high-end desktop graphics processor (NVIDIA Titan X). The architecture achieves efficiency through several deliberate design choices, such as compressing resolution in the earliest layers, using an asymmetric encoder-decoder structure with a minimal decoder, and employing factorized and dilated convolutions to preserve contextual information without adding computational bloat.
The evaluation produced several notable findings. First, ENet reduces hardware requirements dramatically: it uses 75 times fewer floating-point operations (3.83 GFLOPs versus 286.03 GFLOPs) and 79 times fewer parameters (0.37 million versus 29.46 million), yielding a compact 0.7 MB footprint that fits entirely into fast on-chip processor memory. Second, ENet is up to 18 to 20 times faster than the baseline on embedded hardware, delivering 14.6 frames per second at 640x360 resolution where the baseline achieved less than 1 frame per second. Third, despite its small size, ENet matched or surpassed baseline accuracy on road scenes, achieving higher intersection-over-union scores on Cityscapes (58.3% versus 56.1%) and outperforming prior models on difficult, smaller object classes such as signs, pedestrians, and cyclists.
These results demonstrate that organizations deploying computer vision do not need to choose between accuracy and resource efficiency. ENet eliminates the need for expensive, specialized model-compression workflows or heavy supplementary post-processing algorithms. For embedded systems, it enables real-time perception on low-cost, low-power hardware, directly reducing hardware bills of materials and energy consumption. On high-end data center hardware, its high frame rate (over 135 frames per second) offers substantial cost and runtime reductions for large-scale video processing.
Organizations developing edge-device vision applications should evaluate ENet as a primary architecture or baseline. Furthermore, software teams should investigate software optimization techniques such as kernel fusion in underlying machine learning libraries. Combining multiple mathematical operations into single execution steps would alleviate memory transaction bottlenecks and further enhance execution speed.
The findings are subject to a few boundaries. ENet's indoor segmentation performance on the SUN RGB-D dataset lagged behind the baseline in global accuracy (59.5% versus 70.3%), indicating that highly diverse, cluttered indoor scenes remain more challenging for compact networks than structured road environments. Additionally, because the architecture breaks operations down into numerous small calculations, software overhead from graphics processor function calls currently accounts for a notable fraction of runtime. Nevertheless, there is high confidence that ENet provides a viable, state-of-the-art solution for real-time mobile scene segmentation.
