Not All Tokens Are Equal: Human-centric Visual Analysis via Token Clustering Transformer

Wang ZengSheng JinWentao LiuChen QianPing LuoWanli OuyangXiaogang Wang

article2022CVPR191 citations

Proposes Token Clustering Transformer (TCFormer), a vision architecture that dynamically clusters and merges image tokens into flexible shapes and sizes to allocate finer resolution to critical human regions while efficiently compressing background details for tasks like pose estimation and 3D mesh reconstruction.

Listen

Vision transformers are critical tools for human-centric visual analysis applications, such as augmented reality, action recognition, and human-computer interaction. However, standard vision transformers divide images into rigid, uniform grids, assigning equal computational focus to all image patches regardless of content. This uniform allocation is inefficient and sub-optimal for human analysis, where intricate foreground details—such as faces and hands—require high precision, while expansive background regions require minimal processing.

The article introduces and evaluates the Token Clustering Transformer (TCFormer), a novel framework designed to dynamically generate flexible vision tokens—computational image units—based on semantic content. The primary objective is to demonstrate that grouping tokens via progressive clustering allows models to preserve crucial fine details in target regions while reducing computational focus on background areas.

To achieve this, the approach employs a multi-stage architecture featuring two key components: a Clustering Token Merge block and a Multi-stage Token Aggregation head. The merge block uses a density-based nearest-neighbor clustering algorithm to group semantically similar tokens into flexible, non-grid shapes and sizes, guided by an importance score. The aggregation head progressively combines features across all stages while preserving fine-grained details. The authors evaluated the system across several benchmark datasets, including COCO-WholeBody for 2D whole-body pose estimation, 3DPW and Human3.6M for 3D human mesh reconstruction, WFLW for facial landmark alignment, and ImageNet-1K for general image classification.

The findings confirm that TCFormer consistently outperforms existing state-of-the-art models across all tested domains. On 2D whole-body pose estimation, TCFormer achieved 57.2% Average Precision, notably outperforming established baselines on difficult detail-heavy parts like hands by 6.2% Average Precision. On 3D mesh reconstruction, it reduced mean joint position error to 49.3 mm on 3DPW, achieving competitive or superior accuracy compared to specialized methods. For 2D face alignment, it delivered a lower normalized error (4.28%) than models utilizing extra boundary information. In general image classification, TCFormer attained an 82.4% Top-1 accuracy on ImageNet-1K, proving its broad utility beyond human-specific tasks.

These results demonstrate that dynamic, clustering-based token allocation substantially enhances feature representation without requiring prohibitive memory or computational overhead. By dedicating finer tokens to complex body areas and coarse tokens to backgrounds, systems can achieve higher operational accuracy in detail-sensitive vision tasks, directly benefiting real-time human tracking and interactive visual technologies.

Organizations developing vision systems should consider adopting dynamic token clustering mechanisms over rigid grid transformers for fine-grained localization tasks. Future technical roadmaps should explore applying this architecture to broader visual domains, including general object detection and semantic segmentation.

The primary limitation of the current method is that its clustering algorithm exhibits quadratic computational complexity relative to the number of input tokens, which can constrain processing speeds on very high-resolution images. While the authors suggest mitigating this by partitioning tokens into subsets prior to clustering, decision-makers should evaluate this scaling trade-off when deploying the model on high-resolution, real-time pipelines.

SenseTime Research and Tetras.AI The Chinese University of Hong Kong University of Hong Kong University of Sydney clustering methods computer vision encoder-decoder Token Clustering Transformer human-centric visual analysis clustering-based token merge

arXiv: 2204.08680 zengwang430521/TCFormer.git

Paper: An Image is Worth 16x16 Words: Transformers for Image Recognition at Scale, Alexey Dosovitskiy et al. (2021). This foundational paper establishes the standard uniform-grid patch tokenization for vision transformers that TCFormer directly aims to redesign through dynamic clustering.
Paper: Tokens-to-Token ViT: Training Vision Transformers from Scratch on ImageNet, Li Yuan et al. (2021). It introduces progressive token folding to reduce token redundancy and capture local structure, providing an early precedent for progressive token aggregation.
Paper: Transformer in Transformer, Kai Han et al. (2021). It analyzes the limitations of coarse, uniform patch partitioning and proposes nested tokenization to preserve fine-grained visual details.
Paper: PVT v2: Improved baselines with Pyramid Vision Transformer, Wenhai Wang et al. (2021). It outlines hierarchical pyramid vision transformer backbones that serve as the foundational multi-stage baseline architecture adapted by TCFormer.
Paper: Efficient Transformers: A Survey, Yi Tay et al. (2020). It provides a systematic taxonomy of efficient transformer mechanisms, including token clustering and sequence downsampling strategies.

Paper: Joint Token Pruning and Squeezing Towards More Aggressive Compression of Vision Transformers, Siyuan Wei et al. (2023). This work advances dynamic token reduction by matching and squeezing discarded tokens into retained host tokens to prevent information loss during aggressive compression.
Paper: CF-ViT: A General Coarse-to-Fine Method for Vision Transformer, Mengzhao Chen et al. (2023). It builds on the principle of non-uniform spatial allocation by implementing a dynamic coarse-to-fine mechanism that selectively re-splits informative regions.
Paper: BiFormer: Vision Transformer with Bi-Level Routing Attention, Lei Zhu et al. (2023). It extends content-aware token routing by using dynamic bipartite graph clustering to allocate attention compute adaptively across semantic regions.
Paper: TokenHMR: Advancing Human Mesh Recovery with a Tokenized Pose Representation, Sai Kumar Dwivedi et al. (2024). It pushes human-centric visual analysis further by formalizing human mesh recovery as a discrete tokenized prediction problem.
Paper: VisionZip: Longer is Better but Not Necessary in Vision Language Models, Senqiao Yang et al. (2025). It scales semantic token clustering and merging concepts to vision-language models by selectively merging redundant background tokens based on dominant attention proxies.

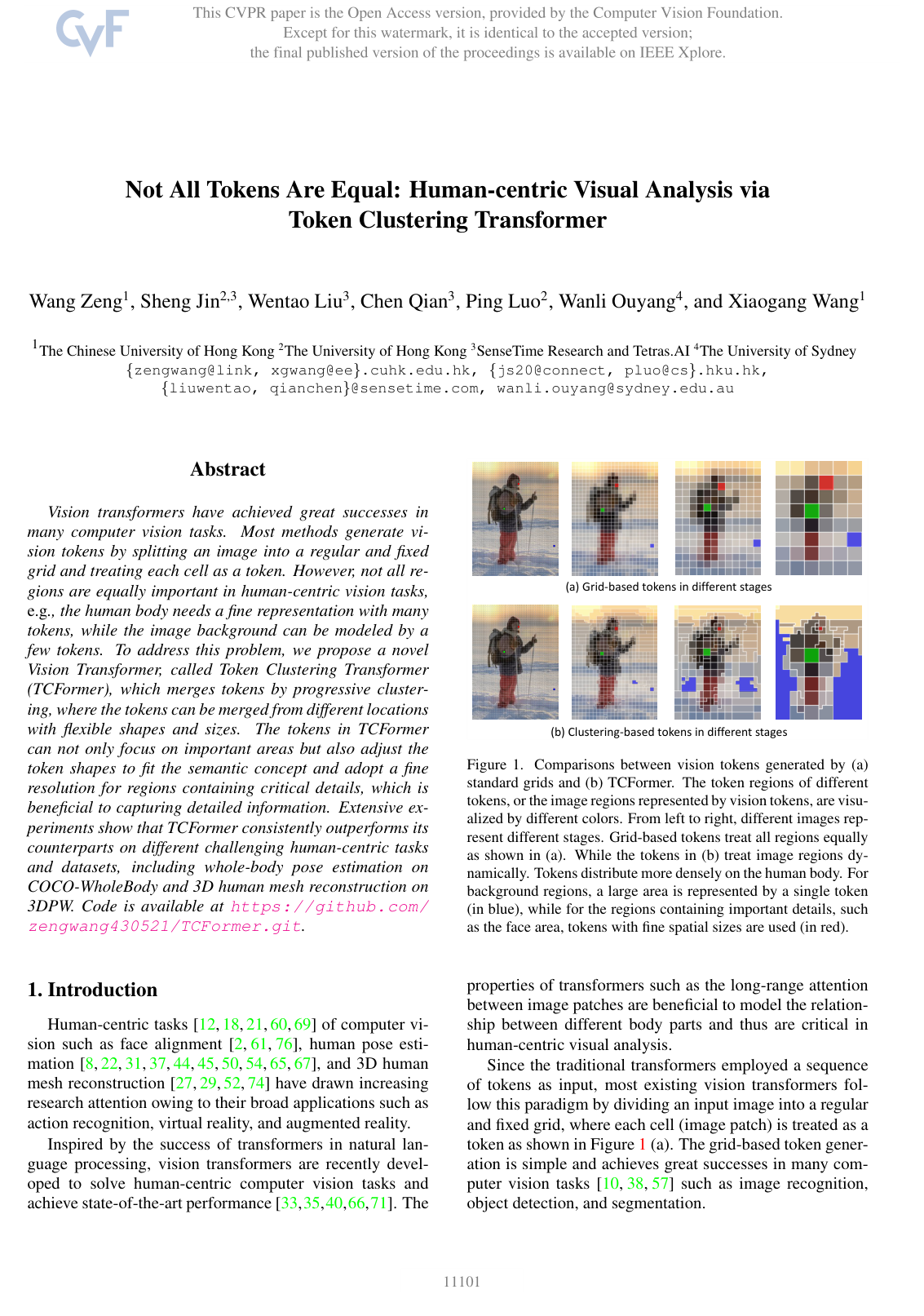

Cover for Not All Tokens Are Equal: Human-centric Visual Analysis via Token Clustering Transformer

Abstract

Vision transformers have achieved great successes in many computer vision tasks. Most methods generate vision tokens by splitting an image into a regular and fixed grid and treating each cell as a token. However, not all regions are equally important in human-centric vision tasks, e.g., the human body needs a fine representation with many tokens, while the image background can be modeled by a few tokens. To address this problem, we propose a novel Vision Transformer, called Token Clustering Transformer (TCFormer), which merges tokens by progressive clustering, where the tokens can be merged from different locations with flexible shapes and sizes. The tokens in TCFormer can not only focus on important areas but also adjust the token shapes to fit the semantic concept and adopt a fine resolution for regions containing critical details, which is beneficial to capturing detailed information. Extensive experiments show that TCFormer consistently outperforms its counterparts on different challenging human-centric tasks and datasets, including whole-body pose estimation on COCO-WholeBody and 3D human mesh reconstruction on 3DPW. Code is available at https://github.com/zengwang430521/TCFormer.git.

Topics

clustering methods computer vision encoder-decoder pose estimation reconstruction semantic gap visual analysis

Keywords

Token Clustering Transformer human-centric visual analysis clustering-based token merge multi-stage token aggregation token upsampling progressive clustering human pose estimation face alignment vision transformers

1. Introduction
2. Related Works
2.1. Transformers in Human-Centric Vision Tasks
2.2. Dynamic Token Generation
2.3. Clustering for Feature Aggregation
3. Method
3.1. Overview Architecture
3.2. Transformer Block
3.3. Clustering-based Token Merge (CTM) Block
3.4. Multi-stage Token Aggregation (MTA) Head
3.5. Implementation Details
4. Experiments
4.1. 2D Whole-body Pose Estimation
4.2. 3D Human Mesh Reconstruction
4.3. 2D Face Keypoint Localization
4.4. Image Classification
4.5. Ablation Study
4.6. Qualitative Evaluation
5. Analysis
6. Conclusions and Limitations
References

Knowls

Knowl 1 — Token Clustering Transformer Architecture
model/method
The Token Clustering Transformer (TCFormer) is a hierarchical vision transformer designed for human-centric visual analysis tasks (such as 2D whole-body pose estimation, 3D human mesh recovery, and face alignment). Standard vision transformers divide an image into fixed, uniform grid tokens regardless of image content. TCFormer dynamically adjusts token location, shape, and spatial scale across 4 hierarchical stages through progressive semantic clustering, allocating dense, fine-grained tokens to semantically critical regions (e.g., human faces, hands, and body joints) and sparse, coarse tokens to background regions.

The overall architecture consists of:
1. Initial Tokenization: A convolutional embedding layer transforms the input RGB image into a regular feature map where each pixel is initialized as an individual token.
2. Hierarchical Stages: 4 sequential stages containing stacked transformer blocks. In each block, spatial reduction layers reduce key/value resolution to bound computational complexity, and depth-wise convolutional layers capture local spatial context and implicit positional information without hand-crafted explicit positional embeddings.
3. Clustering-based Token Merge (CTM) Blocks: Inserted between consecutive stages to group semantically similar tokens via density peaks clustering, reducing the token count by a factor of 4 between adjacent stages.
4. Multi-stage Token Aggregation (MTA) Head: Aggregates multi-scale token representations from all stages top-down at the token level, preserving fine-grained details before projecting to the final output representation.
Knowl 2 — Clustering-based Token Merge via Density Peaks Clustering
algorithm
The Clustering-based Token Merge (CTM) module reduces the token sequence between adjacent transformer stages by clustering tokens according to their feature representations using a $k$ -nearest-neighbor density peaks clustering algorithm (DPC-KNN).
Input: Token feature set $X = \{x_1, x_2, \dots, x_N\}$ with $x_i \in \mathbb{R}^d$ , number of target clusters $M = N/4$ , neighborhood size $k$
Output: Merged cluster token features $Y = \{y_1, y_2, \dots, y_M\}$ , cluster assignments $C = \{C_1, C_2, \dots, C_M\}$
for each token $x_i \in X$ do
    Find $k$ -nearest neighbors $\mathrm{KNN}(x_i)$ based on Euclidean distance in feature space
    Compute local density $\rho_i = \exp\left(-\frac{1}{k} \sum_{x_j \in \mathrm{KNN}(x_i)} \|x_i - x_j\|_2^2\right)$
end for
for each token $x_i \in X$ do
    if there exists $j$ such that $\rho_j > \rho_i$ then
        Compute distance indicator $\delta_i = \min_{j: \rho_j > \rho_i} \|x_i - x_j\|_2$
    else
        Compute distance indicator $\delta_i = \max_j \|x_i - x_j\|_2$
    end if
    Compute cluster center priority score $S_i = \rho_i \times \delta_i$
end for
Select the $M$ tokens with the highest priority score $S_i$ as cluster centers $\{\mu_1, \mu_2, \dots, \mu_M\}$
Assign each token $x_i \in X$ to the cluster $C_m$ of its nearest cluster center $\mu_m$ in Euclidean feature space
The spatial extent (token region) of each merged cluster token $y_m$ is defined as the union of the spatial token regions belonging to all constituent tokens in cluster $C_m$ .
Knowl 3 — Importance-Guided Token Feature Merging and Attention Weighting
model/method
Within the Clustering-based Token Merge (CTM) module, tokens grouped into the same cluster $C_i$ are merged into a single representative token feature $y_i$ using an importance-weighted average rather than uniform averaging. An importance score $p_j \in \mathbb{R}$ is estimated for each token $x_j$ from its feature vector via a lightweight projection:

$y_i = \frac{\sum_{j \in C_i} e^{p_j} x_j}{\sum_{j \in C_i} e^{p_j}}$

where $C_i$ is the index set of tokens assigned to the $i$ -th cluster, $x_j$ is the feature vector of token $j$ , and $p_j$ is the predicted importance score of token $j$ .

Following feature merging, the merged cluster tokens serve as queries $Q \in \mathbb{R}^{M \times d_k}$ and interact with the original pre-merge tokens serving as keys $K \in \mathbb{R}^{N \times d_k}$ and values $V \in \mathbb{R}^{N \times d_k}$ via a cross-attention transformer layer. The token importance score vector $P \in \mathbb{R}^{1 \times N}$ is directly incorporated into the attention matrix to bias attention toward high-importance tokens:

$\operatorname{Attention}(Q, K, V) = \operatorname{softmax}\left(\frac{Q K^T}{\sqrt{d_k}} + P\right) V$

where $d_k$ is the channel dimension of the queries. This allows the newly generated cluster tokens to selectively aggregate critical detailed features from the original fine tokens.
Knowl 4 — Multi-stage Token Aggregation Head
model/method
The Multi-stage Token Aggregation (MTA) head aggregates hierarchical features across all transformer stages without converting intermediate tokens into low-resolution convolutional feature maps, preventing the information loss that occurs when averaging fine tokens over coarse pixel grids.

MTA operates top-down starting from the coarsest stage (Stage 4) to the finest stage (Stage 1):
1. Token Upsampling: Using the cluster assignment relationships recorded during the forward pass of each Clustering-based Token Merge (CTM) module, each merged cluster token feature is copied and broadcast back to all original tokens that formed that cluster.
2. Feature Fusion: The upsampled token features from the deeper stage are element-wise added to the corresponding token features of the preceding shallower stage.
3. Transformer Refinement: The fused token sequence is processed through a transformer block to harmonize features across scales.
4. Progressive Recursion: The upsample-fuse-refine sequence repeats recursively until the tokens reach Stage 1 resolution, where each token corresponds directly to a single pixel on the initial high-resolution grid.
5. Final Output: The Stage 1 tokens are reshaped into a standard 2D feature map and processed by a convolutional prediction head to produce keypoint heatmaps.
Knowl 5 — Bidirectional Mapping Between Irregular Vision Tokens and Grid Feature Maps
model/method
Because convolutional operations and spatial reduction modules require regular 2D feature grid representations, TCFormer employs area-weighted bidirectional mappings between irregular semantic tokens and standard rectangular grid feature maps:
1. Tokens to Feature Map: Each grid pixel is treated as a rectangular geometric unit. To construct the feature for a given pixel, all vision tokens whose spatial coverage areas overlap with that pixel's grid cell are identified. The pixel feature is computed as the weighted average of these token features, with weights proportional to the intersection area between the token's spatial region and the pixel's grid cell.
2. Feature Map to Tokens: When transforming a regular 2D feature map back into vision tokens, each token's feature vector is computed by taking the spatial average of the feature map values across all grid pixels contained within that token's defined spatial region.

Knowl 6 — Whole-Body Human Pose Estimation Benchmark on COCO-WholeBody

data/table

TCFormer was evaluated on the COCO-WholeBody V1.0 test dataset containing 133 whole-body keypoints (17 body, 6 feet, 68 face, 42 hands). Evaluation metrics are Object Keypoint Similarity (OKS)-based Average Precision (AP) and Average Recall (AR) across individual body parts and the whole body.

Method	Resolution	body		foot		face		hand		whole-body
		AP	AR	AP	AR	AP	AR	AP	AR	AP	AR
SN*	480 × 480	0.427	0.583	0.099	0.369	0.649	0.697	0.408	0.580	0.327	0.456
OpenPose	480 × 480	0.563	0.612	0.532	0.645	0.765	0.840	0.386	0.433	0.442	0.523
PAF*	480 × 480	0.381	0.526	0.053	0.278	0.655	0.701	0.359	0.528	0.295	0.405
AE + HRNet-w48	512 × 512	0.592	0.686	0.443	0.595	0.619	0.674	0.347	0.438	0.422	0.532
HigherHRNet-w48	512 × 512	0.630	0.706	0.440	0.573	0.730	0.777	0.389	0.477	0.487	0.574
ZoomNet	384 × 288	0.743	0.802	0.798	0.869	0.623	0.701	0.401	0.498	0.541	0.658
SBL-Res50	256 × 192	0.652	0.739	0.614	0.746	0.608	0.716	0.460	0.584	0.520	0.633
SBL-Res101	256 × 192	0.670	0.754	0.640	0.767	0.611	0.723	0.463	0.589	0.533	0.647
SBL-Res152	256 × 192	0.682	0.764	0.662	0.788	0.624	0.728	0.482	0.606	0.548	0.661
HRNet-w32	256 × 192	0.700	0.746	0.567	0.645	0.637	0.688	0.473	0.546	0.553	0.626
TCFormer w/o CTM	256 × 192	0.667	0.749	0.562	0.695	0.617	0.621	0.479	0.590	0.535	0.639
TCFormer w/o MTA Head	256 × 192	0.679	0.761	0.658	0.780	0.634	0.732	0.499	0.619	0.553	0.662
TCFormer	256 × 192	0.691	0.770	0.698	0.813	0.649	0.746	0.535	0.650	0.572	0.678

TCFormer achieves 0.572 whole-body AP, outperforming HRNet-w32 by 1.9% AP at the same input resolution ( $256 \times 192$ ). On hand keypoints—which occupy small spatial areas and depend heavily on high-resolution details—TCFormer achieves 0.535 AP, exceeding HRNet-w32 by 6.2% AP and SBL-Res152 by 5.3% AP.

Knowl 7 — Ablation of Token Clustering Merge and Multi-stage Token Aggregation Head
empirical result
Ablation studies on COCO-WholeBody pose estimation at $256 \times 192$ resolution isolate the individual contributions of the Clustering-based Token Merge (CTM) module and the Multi-stage Token Aggregation (MTA) head:
- Impact of CTM: Replacing the CTM block with a standard strided convolutional downsampling layer causes the overall whole-body performance to drop by 3.7% AP (from 57.2% to 53.5%) and 3.9% AR (from 67.8% to 63.9%). The performance drop is most pronounced on parts requiring high detail: foot AP drops by 13.6% (from 69.8% to 56.2%) and hand AP drops by 5.6% (from 53.5% to 47.9%), whereas main body AP decreases by only 2.4% (from 69.1% to 66.7%).
- Impact of MTA Head: Replacing the token-level MTA head with a standard deconvolutional head leads to an overall drop of 1.9% AP (from 57.2% to 55.3%) and 1.6% AR (from 67.8% to 66.2%). Performance drops on foot AP by 4.0% and hand AP by 3.6%, demonstrating that token-level aggregation prevents the loss of fine details caused by intermediate rasterization into coarse feature maps.

Knowl 8 — 3D Human Mesh Reconstruction on 3DPW and Human3.6M

data/table

TCFormer combined with a standard HMR regression head was evaluated on 3D human pose and mesh estimation using the 3DPW (in-the-wild) and Human3.6M (indoor) benchmarks. Metrics reported are Mean Per Joint Position Error (MPJPE in mm) and Procrustes-Aligned MPJPE (PA-MPJPE in mm).

Method	3DPW		Human3.6M
	PA-MPJPE $\downarrow$	MPJPE $\downarrow$	PA-MPJPE $\downarrow$	MPJPE $\downarrow$
HMR*	76.7	130.0	56.8	88.0
SPIN*	59.2	96.9	41.1	62.5
Zanfir et al.	57.1	90.0	-	-
EFT	52.2	-	43.8	-
DSR	51.7	85.7	41.4	62.0
TCFormer (Ours)	49.3	80.6	42.8	62.9

On 3DPW, TCFormer achieves 49.3 mm PA-MPJPE and 80.6 mm MPJPE, outperforming prior model-based regression frameworks (including EFT at 52.2 mm and DSR with dense supervision at 51.7 mm PA-MPJPE) at an input resolution of $224 \times 224$ .

Knowl 9 — 2D Facial Landmark Localization on WFLW

data/table

A lightweight variant (TCFormer-Light) was evaluated on the WFLW dataset (98 facial landmarks; 7,500 train, 2,500 test images) across the full test set and 6 specific subsets: Large Pose (LP), Expression (Expr.), Illumination (Illu.), Make-up (Mu.), Occlusion (Occu.), and Blur. The evaluation metric is Normalized Mean Error (NME in %), normalized by inter-ocular distance.

Method	Backbone	Test $\downarrow$	LP $\downarrow$	Expr. $\downarrow$	Illu. $\downarrow$	Mu. $\downarrow$	Occu. $\downarrow$	Blur $\downarrow$
ESR	-	11.13	25.88	11.47	10.49	11.05	13.75	12.20
SDM	-	10.29	24.10	11.45	9.32	9.38	13.03	11.28
CFSS	-	9.07	21.36	10.09	8.30	8.74	11.76	9.96
DVLN	VGG-16	6.08	11.54	6.78	5.73	5.98	7.33	6.88
HRNetV2	HRNetV2-W18	4.60	7.94	4.85	4.55	4.29	5.44	5.42
TCFormer (Ours)	TCFormer-Light	4.28	7.27	4.56	4.18	4.27	5.18	4.87
Models trained with extra information
LAB (w/ B)	Hourglass	5.27	10.24	5.51	5.23	5.15	6.79	6.32
PDB (w/ DA)	ResNet-50	5.11	8.75	5.36	4.93	5.41	6.37	5.81

TCFormer-Light achieves an overall NME of 4.28% on the WFLW test set, improving over HRNetV2-W18 (4.60%) and outperforming methods that use extra boundary supervision (LAB, 5.27%) or stronger data augmentations (PDB, 5.11%).

Knowl 10 — Computational Complexity Limitation of DPC-KNN Token Clustering
limitation
The primary computational bottleneck in TCFormer stems from the Density Peaks Clustering algorithm based on $k$ -nearest neighbors (DPC-KNN) used inside the Clustering-based Token Merge (CTM) block. The pairwise distance computation in DPC-KNN scales quadratically ( $O(N^2)$ ) with respect to the total number of input tokens $N$ . While GPU implementation keeps clustering and merging to 9.4% of the forward pass time under standard human-centric input resolutions ( $256 \times 192$ or $224 \times 224$ ), the quadratic scaling limits inference throughput when scaling to very large input image resolutions. This can be alleviated by partitioning tokens spatially into independent sub-regions and executing clustering part-wise.

Coverage note — ImageNet-1K classification benchmark results (Table 4) were omitted as ImageNet was solely included as an auxiliary verification of general vision feature representation, whereas the paper's core contributions and evaluations center on human-centric visual analysis tasks.
