Sim-to-Real Transfer of Robotic Control with Dynamics Randomization

Xue Bin PengMarcin AndrychowiczWojciech ZarembaPieter Abbeel

article2017IEEE International Conference on Robotics and Automation1,840 citations

Demonstrates that randomizing physical dynamics during simulation training enables robotic control policies to transfer directly to physical hardware without requiring real-world data or exact model calibration.

Listen

Training advanced robotic control systems using reinforcement learning requires massive amounts of trial-and-error data, which presents major safety hazards, hardware wear, and prohibitive time costs when conducted directly on physical machines. While computer simulations offer a fast and risk-free environment for training, policies developed in simulation often fail when deployed in the real world due to unavoidable modeling inaccuracies and calibration errors—a challenge known as the reality gap.

The article demonstrates that training recurrent neural network policies with dynamics randomization allows robotic controllers to transfer directly from low-fidelity simulations to real-world hardware without requiring real-world training data or precise system calibration.

To evaluate this approach, the authors trained a robotic controller exclusively in simulation to push an object to arbitrary target locations using a physical seven-degree-of-freedom robotic arm. The simulated training process applied broad randomization across 95 physical parameters, including object mass, joint friction, table height, control latency, and sensor noise. Rather than using standard memoryless architectures, the policy employed a recurrent neural network—specifically Long Short-Term Memory units—allowing the controller to implicitly infer environmental physical properties over time from its history of actions and sensory states. The model was trained entirely using sparse binary goal rewards combined with hindsight experience replay techniques.

When deployed directly onto the physical robot, the recurrent policy trained with dynamics randomization achieved an 89% success rate, closely matching its 91% success rate in simulation. In contrast, standard feedforward policies trained without randomization failed completely in the real world (0% success), while feedforward networks with access to recent history reached only a 70% success rate. Ablation analyses revealed that randomizing control latency and observation noise was critical, as omitting either dropped real-world success rates to below 30%. Furthermore, the system showed remarkable physical robustness: when friction dynamics were drastically altered by attaching a snack bag to the target puck, the policy maintained a 91% success rate and autonomously adopted complex correction strategies, such as tilting the puck to slide it into position.

These findings indicate that organizations can bypass costly, labor-intensive system calibration and avoid the hazards of real-world exploratory training. By randomizing dynamic simulation parameters, developers can rely on lower-fidelity simulators to produce adaptive controllers that are resilient to latency, sensor inaccuracies, and changing operating environments. This substantially reduces development timelines, equipment wear, and safety risks in robotic deployments.

Organizations developing autonomous manipulation systems should adopt dynamics randomization alongside recurrent memory architectures rather than investing excessive resources into ultra-high-fidelity simulation calibration. Follow-on research and development should prioritize extending this framework to more complex robotic tasks and integrating additional sensory modalities, such as vision.

While the demonstrated performance is high, readers should note that the evaluation was confined to a single non-grasping manipulation task (tabletop pushing) using motion-capture tracking rather than camera vision. Additional validation is required to ensure these results generalize to multi-stage assembly, grasping, and dynamic multi-agent environments.

OpenAI University of California Berkeley design decisions real robot robotic arms dynamics randomization sim-to-real transfer robotic control

arXiv: 1710.06537

Paper: Domain randomization for transferring deep neural networks from simulation to the real world, Josh Tobin et al. (2017). This foundational work introduced domain randomization for visual perception in sim-to-real transfer, providing the direct conceptual template that the source adapts to simulator physical dynamics.
Paper: Continuous control with deep reinforcement learning, T. Lillicrap et al. (2015). It introduces Deep Deterministic Policy Gradient (DDPG), establishing the continuous-action deep reinforcement learning paradigm used to train simulated robotic control policies.
Paper: Deterministic Policy Gradient Algorithms, David Silver et al. (2014). It derives the deterministic policy gradient theorem that underpins the continuous control algorithms employed in modern simulation-to-real policy learning.
Paper: High-Dimensional Continuous Control Using Generalized Advantage Estimation, John Schulman et al. (2016). It establishes Generalized Advantage Estimation for variance reduction in policy optimization, forming core optimization machinery for high-dimensional robotic continuous control.
Paper: Policy Gradient Methods for Reinforcement Learning with Function Approximation, Richard S. Sutton et al. (1999). It proves the foundational Policy Gradient Theorem with function approximation, providing the theoretical basis for parameterized policy optimization in robotics.

Paper: Learning dexterous in-hand manipulation, Marcin Andrychowicz et al. (2018). It directly scales dynamics randomization and recurrent policy architectures to master complex, physical five-fingered in-hand dexterous manipulation.
Paper: Learning agile and dynamic motor skills for legged robots, Jemin Hwangbo et al. (2019). It extends sim-to-real dynamics randomization by coupling physical parameter randomization with learned neural actuator models for agile quadrupedal locomotion.
Paper: Isaac Gym: High Performance GPU-Based Physics Simulation For Robot Learning, Viktor Makoviychuk et al. (2021). It builds high-performance GPU-native simulation environments to scale mass parallel dynamics randomization pipelines for complex robotic control.
Paper: Robust Reinforcement Learning via Genetic Curriculum, Yeeho Song et al. (2022). It improves upon uniform dynamics randomization by using genetic algorithms to discover and curriculum-train on failure-inducing parameter distributions.
Paper: Generalizing to Unseen Domains: A Survey on Domain Generalization, Jindong Wang et al. (2021). It provides a broad taxonomy and review of domain generalization methodologies, classifying techniques like domain and dynamics randomization within overarching generalization frameworks.

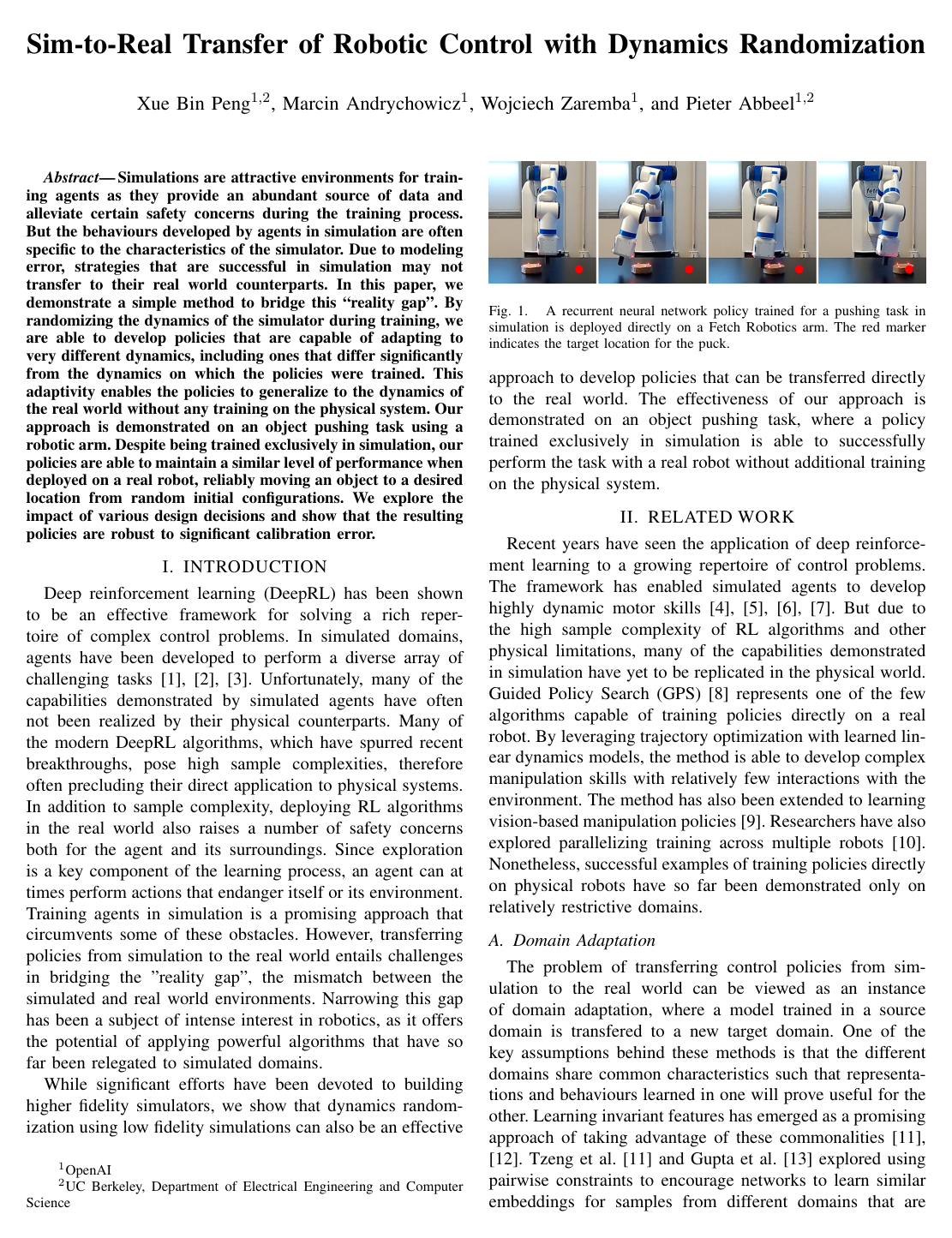

Cover for Sim-to-Real Transfer of Robotic Control with Dynamics Randomization

Abstract

Simulations are attractive environments for training agents as they provide an abundant source of data and alleviate certain safety concerns during the training process. But the behaviours developed by agents in simulation are often specific to the characteristics of the simulator. Due to modeling error, strategies that are successful in simulation may not transfer to their real world counterparts. In this paper, we demonstrate a simple method to bridge this "reality gap". By randomizing the dynamics of the simulator during training, we are able to develop policies that are capable of adapting to very different dynamics, including ones that differ significantly from the dynamics on which the policies were trained. This adaptivity enables the policies to generalize to the dynamics of the real world without any training on the physical system. Our approach is demonstrated on an object pushing task using a robotic arm. Despite being trained exclusively in simulation, our policies are able to maintain a similar level of performance when deployed on a real robot, reliably moving an object to a desired location from random initial configurations. We explore the impact of various design decisions and show that the resulting policies are robust to significant calibration error.

Topics

design decisions real robot robotic arms multiagent system robot system stochastic dynamics

Keywords

dynamics randomization sim-to-real transfer robotic control deterministic policy gradient deep reinforcement learning domain randomization domain adaptation trajectory optimization recurrent policies

I INTRODUCTION
II RELATED WORK
II-A Domain Adaptation
II-B Domain Randomization
II-C Non-prehensile Manipulation
III BACKGROUND
III-A Policy Gradient Methods
III-B Hindsight Experience Replay
IV METHOD
IV-A Tasks
IV-B State and Action
IV-C Dynamics Randomization
IV-D Adaptive Policy
IV-E Recurrent Deterministic Policy Gradient
IV-F Network Architecture
V EXPERIMENTS
V-A Comparison of Architectures
V-B Ablation
V-C Robustness
VI Conclusions
VII Acknowledgement
References

Knowls

Knowl 1 — Dynamics Randomization Objective for Policy Generalization
model/method
To transfer control policies directly from simulation to the real world without training on the physical robot, training is conducted across a parameterized distribution of simulated dynamics models. Let $p^*(s_{t+1} \mid s_t, a_t)$ denote the true dynamics of the physical environment, and let $\hat{p}(s_{t+1} \mid s_t, a_t, \mu)$ denote an approximate simulated transition model parameterized by physical dynamics parameters $\mu$ (such as mass, damping, friction, latency, and sensor noise).

Given a distribution over dynamics parameters $\rho_\mu$ , the reinforcement learning objective is to optimize policy parameters to maximize the expected discounted return over randomized dynamics:

$\mathbb{E}_{\mu \sim \rho_\mu} \left[ \mathbb{E}_{\tau \sim p(\tau \mid \pi, \mu)} \left[ \sum_{t=0}^{T-1} r(s_t, a_t) \right] \right]$

where $\tau = (s_0, a_0, s_1, \dots, s_T)$ is the trajectory sampled under the simulator dynamics $\hat{p}(\cdot \mid \cdot, \cdot, \mu)$ governed by policy $\pi$ , $r(s_t, a_t)$ is the reward at timestep $t$ , and $T$ is the episode horizon. By exposing the policy to high variability during training, the policy learns control strategies that generalize to unmodeled real-world physical dynamics.
Knowl 2 — Implicit System Identification via Recurrent Policy Architecture
model/method
Rather than using an explicit system identification module to predict estimated physical parameters $\hat{\mu} = \phi(s_t, h_t)$ from trajectory history $h_t = [a_{t-1}, s_{t-1}, a_{t-2}, s_{t-2}, \dots]$ , system identification is implicitly learned end-to-end using a recurrent neural network architecture $\pi(a_t \mid s_t, z_t, g)$ , where $z_t = z(h_t)$ represents an internal memory state summarizing past observations.

The policy network consists of two branches:
1. A recurrent branch that receives the current state $s_t$ and the previous action $a_{t-1}$ to infer dynamics properties online. It comprises a fully-connected embedding layer of 128 units followed by a recurrent layer of 128 LSTM units.
2. A feedforward branch that receives the current state $s_t$ directly (providing direct access without filtering through memory) and the goal vector $g$ . The goal vector $g$ is excluded from the recurrent branch because it contains task objective information rather than system dynamics information.
The feature outputs from both branches are concatenated and passed through 2 fully connected layers of 128 units each. Hidden layers use ReLU activations. The output layer uses $\tanh$ activation units scaled to the control bounds of each action parameter.
Knowl 3 — Omniscient Critic for Recurrent Deterministic Policy Gradients
model/method
In the actor-critic framework for recurrent continuous control policies, an asymmetric information structure is used between the policy (actor) and the value function (critic).

The universal action-value function is modeled as $Q(s_t, a_t, y_t, g, \mu)$ , where $s_t$ is the current state, $a_t$ is the candidate action, $y_t = y(h_t)$ is the value function's recurrent memory over trajectory history $h_t$ , $g$ is the goal, and $\mu$ represents the exact dynamics parameters sampled in simulation for that episode.

Because the critic is utilized only during offline simulation training, providing the privileged dynamics parameters $\mu$ as an explicit input to the critic (an omniscient critic) reduces variance in the temporal-difference error and policy gradients. Conversely, the deployable policy $\pi(s_t, z_t, g)$ does not receive $\mu$ , forcing the policy to rely solely on its recurrent internal memory $z_t$ to infer the environment dynamics.
Knowl 4 — Dynamics Randomization Training with HER and RDPG
algorithm
The control policy is trained in simulation by combining Recurrent Deterministic Policy Gradients (RDPG), Hindsight Experience Replay (HER), dynamics parameter randomization, and an omniscient critic.
Input: Policy network $\pi_\theta$ , omniscient critic network $Q_\phi$ , goal distribution $\rho_g$ , dynamics parameter distribution $\rho_\mu$ , replay buffer $M$ , HER replay probability $k$ , discount factor $\gamma$ , learning rate $\alpha$
Initialize network weights $\theta$ and $\phi$ randomly
while training not finished do
    Sample goal $g \sim \rho_g$
    Sample dynamics parameters $\mu \sim \rho_\mu$
    Generate rollout trajectory $\tau = (s_0, a_0, s_1, a_1, \dots, s_T)$ in simulator configured with $\mu$
    for $t = 0$ to $T-1$ do
        Compute sparse reward $r_t \leftarrow r(s_t, g)$
    end for
    Store episode $(\tau, \{r_t\}_{t=0}^{T-1}, g, \mu)$ in replay buffer $M$
    Sample an episode $(\tau, \{r_t\}_{t=0}^{T-1}, g, \mu)$ from $M$
    with probability $k$ do
         $g \leftarrow$ goal satisfied in final state $s_T$
        for $t = 0$ to $T-1$ do
             $r_t \leftarrow r(s_t, g)$
        end for
    end with
    for $t = 0$ to $T-1$ do
        Update recurrent memory states $z_t, z_{t+1}$ for policy and $y_t, y_{t+1}$ for critic
         $\hat{a}_{t+1} \leftarrow \pi_\theta(s_{t+1}, z_{t+1}, g)$
         $\hat{a}_t \leftarrow \pi_\theta(s_t, z_t, g)$
         $q_t \leftarrow r_t + \gamma Q_\phi(s_{t+1}, \hat{a}_{t+1}, y_{t+1}, g, \mu)$
         $\Delta q_t \leftarrow q_t - Q_\phi(s_t, a_t, y_t, g, \mu)$
    end for
    Compute critic gradient $\nabla_\phi = \frac{1}{T} \sum_{t=0}^{T-1} \Delta q_t \frac{\partial Q_\phi(s_t, a_t, y_t, g, \mu)}{\partial \phi}$
    Compute policy gradient $\nabla_\theta = \frac{1}{T} \sum_{t=0}^{T-1} \left. \frac{\partial Q_\phi(s_t, a, y_t, g, \mu)}{\partial a} \right|_{a=\hat{a}_t} \frac{\partial \pi_\theta(s_t, z_t, g)}{\partial \theta}$
    Update parameters $\phi$ and $\theta$ via Adam optimizer using $\nabla_\phi$ and $\nabla_\theta$
end while
Training uses Adam optimizer with learning rate $5 \times 10^{-4}$ , mini-batches of 128 episodes (100 steps per episode), and HER goal replay probability $k = 0.8$ . Training completes in approximately 8000 updates (~100 million environment steps).

Knowl 5 — Dynamics Parameter Randomization Ranges and Distributions

data/table

In the simulated environment, 95 dynamics parameters are randomized across physical robot links, contact surfaces, actuator latencies, and sensor noise. Mass, damping, friction, and controller gains are sampled logarithmically from uniform intervals in log-space. Table height is sampled uniformly. The action delay $\Delta t$ varies per timestep according to $\Delta t \sim \Delta t_0 + \text{Exp}(\lambda)$ , where $\Delta t_0 = 0.04\text{ s}$ is the base control timestep, and the exponential rate parameter $\lambda$ is sampled uniformly once per episode. Independent zero-mean Gaussian noise is added to state features at every timestep with standard deviation equal to $5\%$ of each feature's running standard deviation.

Parameter	Range
Link Mass	$[0.25, 4] \times$ default mass of each link
Joint Damping	$[0.2, 20] \times$ default damping of each joint
Puck Mass	$[0.1, 0.4]\text{ kg}$
Puck Friction	$[0.1, 5]$
Puck Damping	$[0.01, 0.2]\text{ Ns/m}$
Table Height	$[0.73, 0.77]\text{ m}$
Controller Gains	$[0.5, 2] \times$ default gains
Action Timestep $\lambda$	$[125, 1000]\text{ s}^{-1}$

Knowl 6 — Fetch Robotic Puck-Pushing Experimental Setup
experimental setup
The experimental environment consists of a 7-DOF Fetch Robotics arm tasked with pushing a cylindrical puck (mass $\approx 0.2\text{ kg}$ , radius $0.065\text{ m}$ ) across a table to a randomly designated target position within a $0.3\text{ m} \times 0.3\text{ m}$ region.
- State space (52D continuous): Joint positions and velocities of the 7 robot arm joints, 3D position of the gripper, and 3D position, orientation quaternion/Euler angles, linear velocity, and angular velocity of the puck. Real-world puck pose is tracked via an optical motion capture system.
- Action space (7D continuous): Commanded target joint angles for the robot's low-level joint position controller, expressed as relative angle offsets from current joint positions. Control frequency is approximately $25\text{ Hz}$ (nominal $\Delta t_0 = 0.04\text{ s}$ ).
- Reward function: Sparse binary reward $r(s, g) = 0$ if the Euclidean distance between the center of the puck and the target position $g$ is less than or equal to $0.07\text{ m}$ , and $r(s, g) = -1$ otherwise.

Knowl 7 — Sim-to-Real Transfer Performance Across Policy Architectures

data/table

Control policies trained exclusively in simulation were evaluated in simulation (100 test trials with randomized dynamics) and on a physical Fetch robot without real-world fine-tuning. Performance is measured by task success rate (proportion of episodes where the puck is within $0.07\text{ m}$ of the goal at episode termination). Four architectures are compared: LSTM policy, memoryless feedforward trained without dynamics randomization (FF no Rand), memoryless feedforward trained with dynamics randomization (FF), and feedforward augmented with an 8-step history of past states and actions (FF + Hist).

Model	Success (Sim)	Success (Real)	Trials (Real)
LSTM	$0.91 \pm 0.03$	$0.89 \pm 0.06$	28
FF no Rand	$0.51 \pm 0.05$	$0.00 \pm 0.00$	10
FF	$0.83 \pm 0.04$	$0.67 \pm 0.14$	12
FF + Hist	$0.87 \pm 0.03$	$0.70 \pm 0.10$	20

The LSTM architecture achieves near-identical success rates in the real world ( $89\%$ ) and simulation ( $91\%$ ). Feedforward policies trained without randomization fail completely on the physical system ( $0\%$ ). While feeding explicit observation histories (FF + Hist) improves real-world transfer to $70\%$ , the recurrent LSTM policy adapts significantly better to physical dynamics.

Knowl 8 — Ablation Analysis of Randomized Dynamics Parameters on Real Robot Transfer

data/table

To determine the contribution of individual randomized physical parameters to sim-to-real transfer success, LSTM policies were trained in simulation with specific parameter randomizations disabled and subsequently evaluated on the physical Fetch robot.

Randomization Condition	Success Rate (Real)	Trials (Real)
All parameters randomized	$0.89 \pm 0.06$	28
Fixed action timestep	$0.29 \pm 0.11$	17
No observation noise	$0.25 \pm 0.12$	12
Fixed link mass	$0.64 \pm 0.10$	22
Fixed puck friction	$0.48 \pm 0.10$	27

Fixing the action timestep (disabling latency randomization) and disabling sensor observation noise cause the largest drops in transfer performance (down to $29\%$ and $25\%$ success, respectively), demonstrating that controller latency variations and sensor noise are the most critical factors in bridging the sim-to-real gap for continuous manipulation.

Knowl 9 — Robustness of Recurrent Policies to Real-World Contact Dynamics Perturbations
empirical result
The robustness of the simulation-trained LSTM policy to unmodeled real-world dynamics was evaluated on the physical Fetch robot by modifying the contact surface of the puck. A packet of chips was attached to the bottom of the puck, altering both the sliding friction against the table surface and the internal mass/force distribution.

Under this contact perturbation, the LSTM policy achieved a real-world task success rate of $0.91 \pm 0.04$ over 28 trials, which is statistically indistinguishable from the unmodified baseline puck success rate of $0.89 \pm 0.06$ . The policy adapted online by executing emergent corrective strategies, such as pressing down on one edge to partially tilt the puck before pushing, modulating push trajectories from sides or top depending on alignment, and actively recovering when the puck overshot the target location.

Coverage note — None was omitted; all key contributed methods, architectures, algorithms, experimental parameters, and empirical results have been captured.

References

1.V. Mnih, K. Kavukcuoglu, D. Silver, A. A. Rusu, J. Veness, M. G. Bellemare, A. Graves, M. Riedmiller, A. K. Fidjeland, G. Ostrovski, S. Petersen, C. Beattie, A. Sadik, I. Antonoglou, H. King, D. Kumaran, D. Wierstra, S. Legg, and D. Hassabis, ‐Human-level control through deep reinforcement learning,‐ Nature, vol. 518, no. 7540, pp. 529–533, 02 2015. [Online]. Available: http://dx.doi.org/10.1038/nature14236
2.T. P. Lillicrap, J. J. Hunt, A. Pritzel, N. Heess, T. Erez, Y. Tassa, D. Silver, and D. Wierstra, ‐Continuous control with deep reinforcement learning,‐ CoRR, vol. abs/1509.02971, 2015. [Online]. Available: http://arxiv.org/abs/1509.02971
3.Y. Duan, X. Chen, R. Houthooft, J. Schulman, and P. Abbeel, ‐Benchmarking deep reinforcement learning for continuous control,‐ CoRR, vol. abs/1604.06778, 2016. [Online]. Available: http://arxiv. org/abs/1604.06778
4.X. B. Peng, G. Berseth, and M. van de Panne, ‐Terrain-adaptive locomotion skills using deep reinforcement learning,‐ ACM Transactions on Graphics (Proc. SIGGRAPH 2016), vol. 35, no. 4, 2016.
5.X. B. Peng, G. Berseth, K. Yin, and M. van de Panne, ‐Deeploco: Dynamic locomotion skills using hierarchical deep reinforcement learning,‐ ACM Transactions on Graphics (Proc. SIGGRAPH 2017), vol. 36, no. 4, 2017.
6.L. Liu and J. Hodgins, ‐Learning to schedule control fragments for physics-based characters using deep q-learning,‐ ACM Trans. Graph., vol. 36, no. 3, pp. 29:1–29:14, Jun. 2017. [Online]. Available: http://doi.acm.org/10.1145/3083723
7.N. Heess, D. TB, S. Sriram, J. Lemmon, J. Merel, G. Wayne, Y. Tassa, T. Erez, Z. Wang, S. M. A. Eslami, M. A. Riedmiller, and D. Silver, ‐Emergence of locomotion behaviours in rich environments,‐ CoRR, vol. abs/1707.02286, 2017. [Online]. Available: http://arxiv.org/abs/1707.02286
8.S. Levine, N. Wagener, and P. Abbeel, ‐Learning contact-rich manipulation skills with guided policy search,‐ CoRR, vol. abs/1501.05611, 2015. [Online]. Available: http://arxiv.org/abs/1501.05611
9.S. Levine, C. Finn, T. Darrell, and P. Abbeel, ‐End-to-end training of deep visuomotor policies,‐ CoRR, vol. abs/1504.00702, 2015. [Online]. Available: http://arxiv.org/abs/1504.00702
10.S. Levine, P. Pastor, A. Krizhevsky, and D. Quillen, ‐Learning hand-eye coordination for robotic grasping with deep learning and large-scale data collection,‐ CoRR, vol. abs/1603.02199, 2016. [Online]. Available: http://arxiv.org/abs/1603.02199
11.E. Tzeng, C. Devin, J. Hoffman, C. Finn, X. Peng, S. Levine, K. Saenko, and T. Darrell, ‐Adapting deep visuomotor representations with weak pairwise constraints,‐ CoRR, vol. abs/1511.07111, 2015. [Online]. Available: http://arxiv.org/abs/1511.07111
12.Y. Ganin, E. Ustinova, H. Ajakan, P. Germain, H. Larochelle, F. Laviolette, M. Marchand, and V. Lempitsky, ‐Domain-adversarial training of neural networks,‐ J. Mach. Learn. Res., vol. 17, no. 1, pp. 2096–2030, Jan. 2016. [Online]. Available: http://dl.acm.org/citation.cfm?id=2946645.2946704
13.A. Gupta, C. Devin, Y. Liu, P. Abbeel, and S. Levine, ‐Learning invariant feature spaces to transfer skills with reinforcement learning,‐ CoRR, vol. abs/1703.02949, 2017. [Online]. Available: http://arxiv.org/abs/1703.02949
14.S. Daftry, J. A. Bagnell, and M. Hebert, ‐Learning transferable policies for monocular reactive MAV control,‐ CoRR, vol. abs/1608.00627, 2016. [Online]. Available: http://arxiv.org/abs/1608.00627
15.M. Wulfmeier, I. Posner, and P. Abbeel, ‐Mutual alignment transfer learning,‐ CoRR, vol. abs/1707.07907, 2017. [Online]. Available: http://arxiv.org/abs/1707.07907
16.A. A. Rusu, M. Vecerik, T. Rothorl, N. Heess, R. Pascanu, ¨ and R. Hadsell, ‐Sim-to-real robot learning from pixels with progressive nets,‐ CoRR, vol. abs/1610.04286, 2016. [Online]. Available: http://arxiv.org/abs/1610.04286
17.P. Christiano, Z. Shah, I. Mordatch, J. Schneider, T. Blackwell, J. Tobin, P. Abbeel, and W. Zaremba, ‐Transfer from simulation to real world through learning deep inverse dynamics model,‐ CoRR, vol. abs/1610.03518, 2016. [Online]. Available: http://arxiv.org/abs/ 1610.03518
18.F. Sadeghi and S. Levine, ‐Cad2rl: Real single-image flight without a single real image,‐ CoRR, vol. abs/1611.04201, 2016. [Online]. Available: http://arxiv.org/abs/1611.04201
19.J. Tobin, R. Fong, A. Ray, J. Schneider, W. Zaremba, and P. Abbeel, ‐Domain randomization for transferring deep neural networks from simulation to the real world,‐ CoRR, vol. abs/1703.06907, 2017. [Online]. Available: http://arxiv.org/abs/1703.06907
20.S. James and E. Johns, ‐3d simulation for robot arm control with deep q-learning,‐ CoRR, vol. abs/1609.03759, 2016. [Online]. Available: http://arxiv.org/abs/1609.03759
21.I. Mordatch, K. Lowrey, and E. Todorov, ‐Ensemble-cio: Full-body dynamic motion planning that transfers to physical humanoids,‐ in 2015 IEEE/RSJ International Conference on Intelligent Robots and Systems, IROS 2015, Hamburg, Germany, September 28 - October 2, 2015, 2015, pp. 5307–5314. [Online]. Available: https://doi.org/10.1109/IROS.2015.7354126
22.A. Rajeswaran, S. Ghotra, S. Levine, and B. Ravindran, ‐Epopt: Learning robust neural network policies using model ensembles,‐ CoRR, vol. abs/1610.01283, 2016. [Online]. Available: http://arxiv. org/abs/1610.01283
23.L. Pinto, J. Davidson, R. Sukthankar, and A. Gupta, ‐Robust adversarial reinforcement learning,‐ CoRR, vol. abs/1703.02702, 2017. [Online]. Available: http://arxiv.org/abs/1703.02702
24.W. Yu, C. K. Liu, and G. Turk, ‐Preparing for the unknown: Learning a universal policy with online system identification,‐ CoRR, vol. abs/1702.02453, 2017. [Online]. Available: http://arxiv.org/abs/1702. 02453
25.R. Antonova, S. Cruciani, C. Smith, and D. Kragic, ‐Reinforcement learning for pivoting task,‐ CoRR, vol. abs/1703.00472, 2017. [Online]. Available: http://arxiv.org/abs/1703.00472
26.K. Yu, M. Bauza, N. Fazeli, and A. Rodriguez, ‐More than a million ´ ways to be pushed: A high-fidelity experimental data set of planar pushing,‐ CoRR, vol. abs/1604.04038, 2016. [Online]. Available: http://arxiv.org/abs/1604.04038
27.K. M. Lynch and M. T. Mason, ‐Stable pushing: Mechanics, controllability, and planning,‐ The International Journal of Robotics Research, vol. 15, no. 6, pp. 533–556, 1996.
28.M. Dogar and S. Srinivasa, ‐A framework for push-grasping in clutter,‐ in Robotics: Science and Systems VII. Pittsburgh, PA: MIT Press, July 2011.
29.N. Fazeli, R. Kolbert, R. Tedrake, and A. Rodriguez, ‐Parameter and contact force estimation of planar rigid-bodies undergoing frictional contact,‐ The International Journal of Robotics Research, vol. 0, no. 0, p. 0278364917698749, 2016.
30.S. Akella and M. T. Mason, ‐Posing polygonal objects in the plane by pushing,‐ The International Journal of Robotics Research, vol. 17, no. 1, pp. 70–88, 1998.
31.C. Finn, I. J. Goodfellow, and S. Levine, ‐Unsupervised learning for physical interaction through video prediction,‐ CoRR, vol. abs/1605.07157, 2016. [Online]. Available: http://arxiv.org/abs/1605. 07157
32.D. H. Ignasi Clavera and P. Abbeel, ‐Policy transfer via modularity,‐ in IROS. IEEE, 2017.
33.R. S. Sutton, D. Mcallester, S. Singh, and Y. Mansour, ‐Policy gradient methods for reinforcement learning with function approximation,‐ in In Advances in Neural Information Processing Systems 12. MIT Press, 2000, pp. 1057–1063.
34.T. Schaul, D. Horgan, K. Gregor, and D. Silver, ‐Universal value function approximators,‐ in Proceedings of the 32nd International Conference on Machine Learning, ser. Proceedings of Machine Learning Research, F. Bach and D. Blei, Eds., vol. 37. Lille, France: PMLR, 07–09 Jul 2015, pp. 1312–1320. [Online]. Available: http://proceedings.mlr.press/v37/schaul15.html
35.M. Andrychowicz, F. Wolski, A. Ray, J. Schneider, R. Fong, P. Welinder, B. McGrew, J. Tobin, P. Abbeel, and W. Zaremba, ‐Hindsight experience replay,‐ in Advances in Neural Information Processing Systems, 2017.
36.N. Heess, J. J. Hunt, T. P. Lillicrap, and D. Silver, ‐Memory-based control with recurrent neural networks,‐ CoRR, vol. abs/1512.04455, 2015. [Online]. Available: http://arxiv.org/abs/1512.04455
37.J. N. Foerster, Y. M. Assael, N. de Freitas, and S. Whiteson, ‐Learning to communicate with deep multi-agent reinforcement learning,‐ CoRR, vol. abs/1605.06676, 2016. [Online]. Available: http://arxiv.org/abs/1605.06676
38.R. Lowe, Y. Wu, A. Tamar, J. Harb, P. Abbeel, and I. Mordatch, ‐Multi-agent actor-critic for mixed cooperative-competitive environments,‐ CoRR, vol. abs/1706.02275, 2017. [Online]. Available: http://arxiv.org/abs/1706.02275
39.E. Todorov, T. Erez, and Y. Tassa, ‐Mujoco: A physics engine for model-based control.‐ in IROS. IEEE, 2012, pp. 5026–5033.
40.D. P. Kingma and J. Ba, ‐Adam: A method for stochastic optimization,‐ CoRR, vol. abs/1412.6980, 2014. [Online]. Available: http://arxiv.org/abs/1412.6980
