Adaptive Smoothing Gradient Learning for Spiking Neural Networks

Ziming WangRunhao JiangShuang LianRui YanHuajin Tang

article2023ICML67 citations

Proposes an adaptive smoothing gradient learning method that eliminates gradient mismatch in spiking neural networks by incorporating learnable relaxation factors with random spike noise, achieving state-of-the-art accuracy across vision and audio tasks.

Listen

Artificial intelligence applications running on edge devices face severe energy constraints. Spiking neural networks offer an appealing solution because they process information using sparse binary pulses, drastically lowering energy consumption on specialized hardware. However, training these networks is difficult because binary pulses create a mathematical discontinuity that prevents standard optimization algorithms from computing exact gradients. While current methods approximate these gradients using fixed smoothing curves, this approximation creates a persistent mismatch between estimated gradients and actual network behavior, leading to unstable training, degraded accuracy, and severe sensitivity to manual tuning.

The article demonstrates a novel training framework called adaptive smoothing gradient learning to eliminate this gradient mismatch and automate hyperparameter tuning. The method introduces a dual-mode training approach where standard continuous activations are injected with random binary pulse noise. By isolating pulse activations from backward error calculation and making the smoothing factor a learnable parameter, the network naturally adapts its gradient estimates during training. Over successive optimization steps, the hybrid architecture progressively converges into a pure, energy-efficient spiking neural network without requiring manual intervention.

The authors validated this approach across diverse benchmark datasets spanning static images, neuromorphic event streams, human speech, and musical instruments. Key findings show that the proposed method consistently achieves state-of-the-art performance across all tested domains. On static image recognition benchmarks, the model reached 95.35% accuracy on CIFAR-10 and 77.74% on CIFAR-100 within only four time steps, while consuming only 8.96% of the energy required by an equivalent non-spiking network. On dynamic sensory tasks, it achieved 84.50% accuracy on DVS-CIFAR10 and 97.90% on gesture recognition. Crucially, the approach eliminated sensitivity to initial smoothness settings: while conventional methods suffered catastrophic performance drops of up to 60 percentage points when smoothness factors were misconfigured, the adaptive method maintained stable, high accuracy.

These results demonstrate that organizations can achieve deep learning accuracy at a fraction of the computational power cost, reducing operational expenses and latency for edge intelligence without incurring expensive hyperparameter search costs. Decision-makers should consider piloting this adaptive training methodology for battery-powered, real-time, or edge-deployed vision and audio systems. Future work should focus on validating this technique on larger-scale foundational models and testing its deployment across diverse physical neuromorphic hardware architectures.

Zhejiang Lab Zhejiang University Zhejiang University of Technology backpropagation algorithm optimization spiking neural networks spiking neural networks spike-based backpropagation gradient learning

Wang et al (2023).pdf

Paper: Surrogate Gradient Learning in Spiking Neural Networks: Bringing the Power of Gradient-based optimization to spiking neural networks, Emre O. Neftci et al. (2019). This seminal survey establishes the surrogate gradient learning framework for spiking neural networks, providing the core background on non-differentiable threshold approximations that the source paper directly seeks to adapt and improve.
Paper: Spatio-Temporal Backpropagation for Training High-Performance Spiking Neural Networks, Yujie Wu et al. (2017). This foundational work introduces spatio-temporal backpropagation with fixed surrogate derivative curves for spiking neural networks, establishing the exact baseline methodology and gradient mismatch problem addressed by the source paper.
Paper: Temporal Efficient Training of Spiking Neural Network via Gradient Re-weighting, Shikuang Deng et al. (2022). This paper analyzes gradient mismatch and loss landscape instability in directly trained spiking neural networks, offering key insights into optimization challenges resolved by adaptive gradient methods.
Paper: RecDis-SNN: Rectifying Membrane Potential Distribution for Directly Training Spiking Neural Networks, Yufei Guo et al. (2022). This study details the direct training difficulties of membrane potential shifts and gradient mismatch in deep spiking neural networks, motivating the need for refined gradient smoothing strategies.
Paper: Estimating or Propagating Gradients Through Stochastic Neurons for Conditional Computation, Yoshua Bengio et al. (2013). This foundational paper explores gradient propagation through stochastic binary neurons via noise injection and smooth approximations, establishing theoretical concepts directly utilized in the source paper's dual-mode training approach.
Paper: Deep Learning in Spiking Neural Networks, Amirhossein Tavanaei et al. (2018). This comprehensive review covers direct and conversion-based deep learning methods in spiking neural networks, framing the broader training landscape for energy-efficient edge computation.
Paper: Training High-Performance Low-Latency Spiking Neural Networks by Differentiation on Spike Representation, Qingyan Meng et al. (2022). This work explores alternative differentiable representations for low-latency spiking neural network training, contrasting surrogate gradient approximations with continuous representation mapping.

Paper: SpikingResformer: Bridging ResNet and Vision Transformer in Spiking Neural Networks, Xinyu Shi et al. (2024). This work extends low-timestep, directly trained spiking neural network principles to modern vision transformer architectures by integrating residual backbones and spike-driven self-attention.
Paper: SpikingBERT: Distilling BERT to Train Spiking Language Models Using Implicit Differentiation, Malyaban Bal et al. (2024). This paper extends direct spiking network optimization to large language models by utilizing equilibrium-based implicit differentiation and distillation without relying on standard surrogate gradient histories.
Paper: Resource-Efficient Neural Networks for Embedded Systems, Wolfgang Roth et al. (2024). This survey evaluates the practical edge deployment and embedded hardware implications of discrete, resource-efficient neural network architectures like those trained in the source paper.

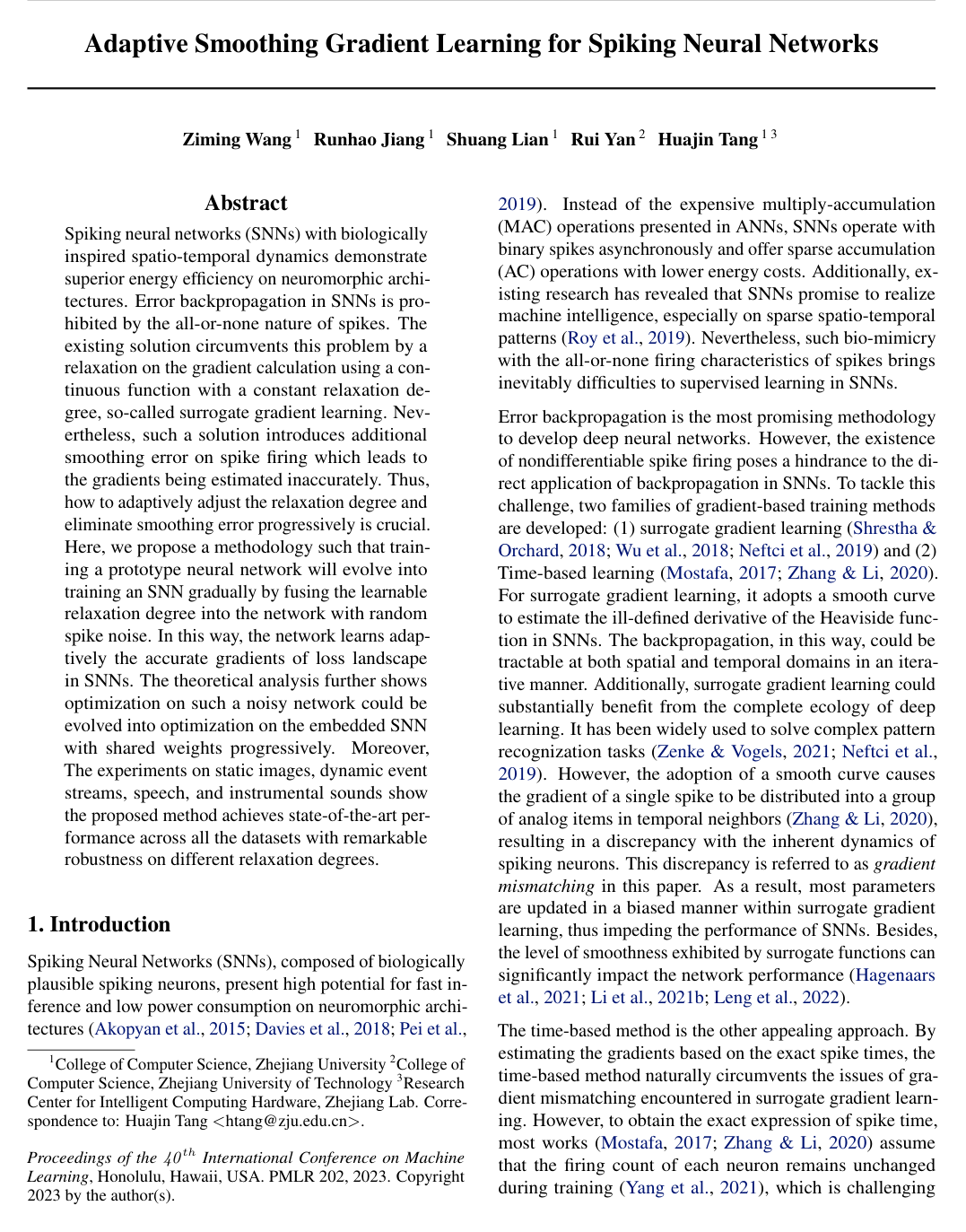

Cover for Adaptive Smoothing Gradient Learning for Spiking Neural Networks

Abstract

Spiking neural networks (SNNs) with biologically inspired spatio-temporal dynamics demonstrate superior energy efficiency on neuromorphic architectures. Error backpropagation in SNNs is prohibited by the all-or-none nature of spikes. The existing solution circumvents this problem by a relaxation on the gradient calculation using a continuous function with a constant relaxation degree, so-called surrogate gradient learning. Nevertheless, such a solution introduces additional smoothing error on spike firing which leads to the gradients being estimated inaccurately. Thus, how to adaptively adjust the relaxation degree and eliminate smoothing error progressively is crucial. Here, we propose a methodology such that training a prototype neural network will evolve into training an SNN gradually by fusing the learnable relaxation degree into the network with random spike noise. In this way, the network learns adaptively the accurate gradients of loss landscape in SNNs. The theoretical analysis further shows optimization on such a noisy network could be evolved into optimization on the embedded SNN with shared weights progressively. Moreover, the experiments on static images, dynamic event streams, speech, and instrumental sounds show the proposed method achieves state-of-the-art performance across all the datasets with remarkable robustness on different relaxation degrees.

1. Introduction
2. Related Works
3. Preliminary
4. Method
4.1. Spike-based Backpropagation
4.2. Design of ASGL
4.3. Theoretical Analysis
5. Experiments
5.1. Ablation Study
5.2. Performance on Static Images
5.3. Performance on Spatio-temporal Patterns.
5.4. Effect of Noise Probability
5.5. Network Evolution
6. Conclusion
Acknowledgements
References
A. Detailed Derivation and Neuron Dynamics
A.1. Spike-based Backpropagation incorporated with Adaptive Width
A.2. Theory Analysis for Error Decomposition
A.3. C-LIF Model
A.4. Reccurent Connections
B.3. Ablation Study on Image Reconstruction
B.4. Experiments on MedlyDB, DVS128 Gesture
B.5. Ablation Study on ResNet-19
B.6. Width Update
B.7. Effect of fixed α
B.8. Effect of Adaptive α ( α ↛ 0 )
B.9. Results without Auto-Augment and Cutout

Knowls

Knowl 1 — Dual-Mode Forward Activation with Detached Spike Noise Injection
model/method
Adaptive Smoothing Gradient Learning (ASGL) resolves gradient mismatching in Spiking Neural Networks (SNNs) by replacing the non-differentiable Heaviside step function $\Theta(x)$ during training with a hybrid activation $\hat{H}_\alpha(x)$ that couples continuous analog activation $H_\alpha(x)$ with binary spike noise. Here, $H_\alpha(x) = \int_{-\infty}^x h_\alpha(u) \, du$ is the antiderivative of the chosen surrogate gradient function $h_\alpha(x)$ . For the rectangular surrogate gradient $h_\alpha(x) = \frac{1}{\alpha} \operatorname{sign}(|x| < \frac{\alpha}{2})$ , the corresponding continuous activation is the shifted clipping function:

$H_\alpha(x) = \operatorname{clip}\left(\frac{1}{\alpha}x + \frac{1}{2}, 0, 1\right)$

During training forward propagation, given the normalized membrane potential difference $\hat{u}^l[t] = u^l[t] - \vartheta$ (where $u^l[t]$ is the membrane potential at layer $l$ and time step $t$ , and $\vartheta$ is the firing threshold), the layer activation $\hat{H}_\alpha(\hat{u}^l[t])$ is computed as:

$\hat{H}_\alpha(\hat{u}^l[t]) = H_\alpha(\hat{u}^l[t]) + m \odot \Phi\left(\Theta(\hat{u}^l[t]) - H_\alpha(\hat{u}^l[t])\right)$

where $m \sim \operatorname{Bernoulli}(p)$ is an independent binary random mask with spike noise probability $p \in (0, 1]$ , $\odot$ represents element-wise multiplication, and $\Phi$ is an identity mapping in forward propagation that detaches gradients during backward propagation (such that $\frac{\partial \Phi(x)}{\partial x} = 0$ ). By detaching the gradient of the binary spikes, backpropagation flows entirely through the continuous function $H_\alpha(x)$ , eliminating surrogate gradient mismatching while exposing the network to spike-induced perturbations. During validation/inference, the deterministic binary activation $s^l[t] = \Theta(\hat{u}^l[t])$ is used exclusively.
Knowl 2 — ASGL Dual-Mode Spike Activation Procedure
algorithm
The core activation algorithm in ASGL conditionally switches between stochastic noise injection during training and discrete spike firing during inference.
Input: Normalized membrane potential $\hat{u}^l[t] = u^l[t] - \vartheta$
Input: Mode indicator $T$ ( $T = \text{true}$ for training, $T = \text{false}$ for validation)
Input: Learnable width parameter $\alpha$ , noise probability $p$
Output: Output activation $s^l[t]$
if $T$ is true then
    Sample random mask $m \sim \operatorname{Bernoulli}(p)$
    Compute continuous activation $H_\alpha(\hat{u}^l[t]) = \operatorname{clip}(\frac{1}{\alpha}\hat{u}^l[t] + \frac{1}{2}, 0, 1)$
    Compute binary spike $\Theta(\hat{u}^l[t])$
     $s^l[t] = H_\alpha(\hat{u}^l[t]) + m \odot \Phi(\Theta(\hat{u}^l[t]) - H_\alpha(\hat{u}^l[t]))$
else
     $s^l[t] = \Theta(\hat{u}^l[t])$
end if
return $s^l[t]$
Here, $\Phi$ detaches gradients from the spike discrepancy $\Theta(\hat{u}^l[t]) - H_\alpha(\hat{u}^l[t])$ , allowing exact gradient updates with respect to $H_\alpha$ and the learnable width $\alpha$ across spatial and temporal dimensions.
Knowl 3 — Spatial-Temporal Gradient Formulation for Learnable Smoothing Width Parameter
equation
In ASGL, the surrogate function width parameter $\alpha^l$ at layer $l$ is treated as a learnable parameter optimized end-to-end via spatio-temporal backpropagation. For a network with $N$ discrete time steps, target label $y$ , predicted softmax output $\hat{y} = \operatorname{softmax}(\bar{c}^L)$ where $\bar{c}^L = \frac{1}{N} \sum_{t=1}^N c^L[t]$ is the time-averaged postsynaptic current at the final layer $L$ , the loss gradient with respect to $\alpha^l$ is:

$\nabla \alpha^l = -\frac{y^T - \hat{y}^T}{N} \sum_{t^*=1}^N \frac{\partial c^L[t^*]}{\partial \alpha^l}$

where for any target time step $t^*$ , the temporal partial derivative is decomposed as:

$\frac{\partial c^L[t^*]}{\partial \alpha^l} = \sum_{t=1}^{t^*} \left( \delta^{l+1}[t] W^{l+1} - \gamma \delta^l[t+1] \operatorname{diag}(u^l[t]) \right) \frac{\partial s^l[t]}{\partial \alpha^l[t]}$

In this expression, $\delta^l[t] = \frac{\partial c^L[t^*]}{\partial u^l[t]}$ is the credit assigned to the membrane potential $u^l[t]$ , $W^{l+1}$ is the forward weight matrix to layer $l+1$ , $\gamma = 1 - 1/\tau_m$ is the membrane leak factor, and the derivative of the shifted clipping activation $H_\alpha$ with respect to $\alpha$ is:

$\frac{\partial s^l[t]}{\partial \alpha^l[t]} = \frac{\partial H_\alpha(\hat{u}^l[t])}{\partial \alpha} = \begin{cases} 0, & \text{if } |\hat{u}^l[t]| > \frac{1}{2}\alpha \\ -\operatorname{diag}\left(\frac{1}{\alpha^2} \odot \hat{u}^l[t]\right), & \text{otherwise} \end{cases}$
Knowl 4 — Equivalence of ASGL Optimization to Regularized SNN Loss Minimization
theoretical result
Let $F_{\text{noise}}$ denote the training network utilizing mixed analog activations $H_\alpha(x)$ with random binary spike masking, and let $F_{\text{snn}}$ denote the target embedded SNN using purely discrete spike activations $\Theta(x)$ . Let $\ell_{\text{noise}}(F, s) \triangleq \mathbb{E}_{\hat{m}}[\ell(F_{\text{noise}}(s))] = \mathbb{E}_{\hat{m}}[\ell(F_{\text{snn}}(s, \hat{m}))]$ represent the expected loss of the hybrid network over the normalized random mask $\hat{m} = m/p$ , where $p$ is the spike noise probability.

Via second-order Taylor expansion around the perturbation $\Delta = (1 - \hat{m}^l) \odot (H_\alpha(\hat{u}^l) - \Theta(\hat{u}^l))$ , the expected noisy loss $\ell_{\text{noise}}(F, s)$ is approximated by the target SNN loss $\ell_{\text{snn}}(F, s)$ regularized by the layer-wise distance between continuous activations $H_\alpha(\hat{u}^l)$ and binary activations $\Theta(\hat{u}^l)$ :

$\ell_{\text{noise}}(F, s) \approx \ell_{\text{snn}}(F, s) + \frac{1-p}{2p} \sum_{l=1}^L \left\langle C^l, \operatorname{diag}\left(H_\alpha(\hat{u}^l) - \Theta(\hat{u}^l)\right)^{\odot 2} \right\rangle$

where $C^l = D^2(\ell \circ \mathbb{E}_{\hat{m}}[G^l])[s^l]$ represents the Hessian (second derivative) of the loss function $\ell$ with respect to the $l$ -th layer spike activation $s^l$ through the subnetwork $G^l$ (which employs mixed activations after layer $l$ and fully discrete spikes in the preceding $l$ layers). Under alternating optimization of weights $W$ and learnable width $\alpha$ , minimizing $\ell_{\text{noise}}$ dynamically contracts the activation discrepancy $\|H_\alpha(\hat{u}^l) - \Theta(\hat{u}^l)\|^2$ , driving the dynamics of the hybrid network to converge into those of the embedded SNN.

Knowl 5 — Robustness of ASGL to Smoothing Width Initialization

data/table

Standard surrogate gradient (SG) learning exhibits extreme sensitivity to the surrogate width parameter $\alpha$ , where poor choices cause severe gradient vanishing (dead neurons) or excessive smoothing errors. In contrast, ASGL incorporates a learnable $\alpha$ , making network accuracy robust across a wide range of initial widths $\alpha$ .

Width ( $\alpha$ )	CIFAR-10 (ResNet-19, $N=3$ )		CIFAR-100 (ResNet-18, $N=3$ )
	SG Acc. (%)	ASGL Acc. (%)	SG Acc. (%)	ASGL Acc. (%)
0.5	93.19	94.11	75.76	76.54
1.0	93.78	94.30	65.19	76.09
2.5	90.68	94.09	15.12	76.18
5.0	62.34	93.61	8.04	76.68
10.0	30.85	93.53	6.14	76.00

While standard SG performance collapses completely on CIFAR-100 when $\alpha$ increases from $0.5$ to $10.0$ (falling from $75.76\%$ to $6.14\%$ , a $69.62\%$ drop), ASGL maintains stable performance across all initializations ( $76.00\%$ to $76.68\%$ ).

Knowl 6 — Direct Training Performance on Static Image Benchmarks

data/table

ASGL achieves state-of-the-art accuracy when directly training spiking neural networks on CIFAR-10, CIFAR-100, and Tiny-ImageNet under ultra-low latency ( $N = 2, 4, 8$ time steps) without requiring pretrained ANN initialization or Time Inheritance Training.

Dataset	Method	Architecture	Time steps ( $N$ )	Accuracy (%)
CIFAR-10	TET	ResNet-19	4	$94.44 \pm 0.08$
	TET	ResNet-19	2	$94.16 \pm 0.03$
	SpikeDHS	SpikeDHS-CLA (n4s1)	6	$94.68 \pm 0.05$
	GLIF	ResNet-18	4	$94.67 \pm 0.05$
	GLIF	ResNet-18	2	$94.15 \pm 0.04$
	ASGL (Ours)	CifarNet	4	$94.74 \pm 0.10$
	ASGL (Ours)	CifarNet	2	$93.80 \pm 0.11$
	ASGL (Ours)	ResNet-18	4	$\mathbf{95.35 \pm 0.25}$
	ASGL (Ours)	ResNet-18	2	$\mathbf{95.27 \pm 0.06}$
CIFAR-100	TET	ResNet-19	4	$74.47 \pm 0.15$
	TET	ResNet-19	2	$72.87 \pm 0.10$
	Dspike	ResNet-18	4	$73.35 \pm 0.14$
	SpikeDHS	SpikeDHS-CLA (n4s1)	6	$76.03 \pm 0.20$
	ASGL (Ours)	CifarNet	4	$74.59 \pm 0.07$
	ASGL (Ours)	ResNet-18	4	$\mathbf{77.74 \pm 0.07}$
	ASGL (Ours)	ResNet-18	2	$\mathbf{76.59 \pm 0.05}$
Tiny-ImageNet	Online LTL	VGG-13	16	54.82
	Offline LTL	VGG-13	16	55.37
	ASGL (Ours)	VGG-13	8	$\mathbf{56.81}$
	ASGL (Ours)	VGG-13	4	$\mathbf{56.57}$

On CIFAR-10 ResNet-18, ASGL reaches $95.27\%$ accuracy with only 2 time steps. On CIFAR-100 ResNet-18, ASGL obtains $77.74\%$ accuracy at 4 time steps. On Tiny-ImageNet (200 classes, $64\times 64$ resolution), ASGL achieves $56.57\%$ at $N=4$ and $56.81\%$ at $N=8$ , outperforming previous tandem learning approaches that required 16 time steps.

Knowl 7 — Performance on Neuromorphic and Audio Spatio-Temporal Datasets

data/table

ASGL was evaluated across diverse spatio-temporal benchmarks including event-camera streams (DVS-CIFAR10, DVS128 Gesture) and audio/speech recognition (Spiking Heidelberg Digits SHD, MedleyDB music instruments).

Dataset	Method	Architecture	Time steps ( $N$ )	Metric / Acc. (%)
DVS-CIFAR10	PLIF-SNN	CifarNet-C	20	74.80
	Dspike	ResNet-18	10	75.45
	TET	VGGSNN	10	$83.17 \pm 0.15$
	ASGL (Ours)	VGGSNN	10	$\mathbf{84.50 \pm 0.08}$
DVS128 Gesture	STBP-tdBN	SNN (ResNet17)	60	96.87
	PLIF-SNN	SNN (8 layers)	60	97.57
	PointNet-like ANN	DNN	60	95.32
	RG-CNN	DNN	60	97.20
	ASGL (Ours)	SNN (8 layers)	60	$\mathbf{97.90}$
SHD	SG (Cramer et al.)	700-240-20 SNN	250	$83.2 \pm 1.3$
	EventProp	700-240-20 SNN	250	$84.8 \pm 1.5$
	ASGL (Ours)	700-240-20 SNN	250	$\mathbf{86.9 \pm 1.0}$
MedleyDB	STCA	384-700-10 SNN	500	F1: 97.25
	CNN (direct BP)	CNN (76.9w)	500	F1: 97.51
	ASGL (Ours)	384-700-10 SNN	500	F1: 98.59

On DVS-CIFAR10, ASGL achieves $84.50\%$ , improving over TET by $1.33\%$ . On DVS128 Gesture, ASGL reaches $97.90\%$ , exceeding specialized event DNNs. On SHD, ASGL reaches $86.9\%$ , outperforming exact-gradient EventProp by $2.1\%$ . On MedleyDB, ASGL achieves an F1-score of $98.59\%$ , outperforming both surrogate gradient SNNs and spectrogram CNNs.

Knowl 8 — Tradeoff Between Dead Neurons and Smoothing Error in Surrogate Width Optimization
empirical result
Analyzing spiking neurons across the width parameter $\alpha$ reveals an inherent tension:
1. Dead Neuron Proportion: As width $\alpha$ decreases toward zero, the derivative $h_\alpha(x)$ becomes non-zero over an increasingly narrow band. Neurons whose membrane potential falls outside $[-\alpha/2, \alpha/2]$ receive zero gradient, causing the proportion of inactive/dead neurons to rise sharply.
2. Smoothing Error: Conversely, as $\alpha$ increases, the continuous surrogate activation deviates further from the true step function $\Theta(x)$ . Measuring the mismatch via the metric $\operatorname{err} = 1 - \cos(a^l, s^l)$ (where $a^l$ and $s^l$ are analog and binary activations respectively) shows that smoothing error grows monotonically with larger $\alpha$ .
Because the optimal trade-off point between gradient propagation (preventing dead neurons) and gradient accuracy (minimizing smoothing error) varies across layers and training epochs, fixed-width surrogate gradients fail. Learnable $\alpha$ in ASGL resolves this trade-off adaptively: $\alpha$ does not simply shrink to zero during training, but stabilizes at layer-specific non-zero values (e.g., higher $\alpha$ in final layers and lower $\alpha$ in intermediate layers), achieving over $9\%$ higher cosine similarity between hybrid and target SNN activations than training with a fixed width.
Knowl 9 — Energy Consumption and Synaptic Operations Efficiency of ASGL SNNs
empirical result
The computational overhead of SNNs is evaluated by counting total Synaptic Operations (SOP) across all $T$ time steps and $L-1$ synaptic layers:

$N_{\text{AC}} = \sum_{t=1}^T \sum_{l=1}^{L-1} \sum_{i=1}^{N_l} f_i^l s_i^l[t]$

where $f_i^l$ is the fan-out (outgoing connection count) of neuron $i$ at layer $l$ , $N_l$ is the number of neurons in layer $l$ , and $s_i^l[t] \in \{0, 1\}$ is the binary spike event. In contrast, an equivalent ANN requires fixed Multiply-Accumulate (MAC) operations:

$N_{\text{MAC}} = \sum_{l=1}^{L-1} \sum_{i=1}^{N_l} f_i^l$

Using standard 45nm CMOS hardware energy estimates (32-bit floating-point AC at $0.9\text{ pJ}$ per operation and 32-bit floating-point MAC at $4.6\text{ pJ}$ per operation, with MAC used for the direct-current first layer in SNNs), a spiking ResNet-18 trained with ASGL under 2 time steps achieves $94.11\%$ accuracy on CIFAR-10 while consuming only $8.96\%$ of the energy of an equivalent ANN architecture.
Knowl 10 — Effective Soft-Reset Dynamics Induced by Dual-Mode Forwarding
model/method
In standard LIF neurons with hard reset, the membrane potential resets to zero when a spike is emitted: $u^l[t] = \gamma u^l[t-1] \odot (1 - s^l[t-1]) + c^l[t]$ . During ASGL training, replacing the discrete spike $s^l[t-1] = \Theta(\hat{u}^l[t-1])$ with the hybrid activation $\hat{H}_\alpha(\hat{u}^l[t-1])$ naturally transforms the hard reset into an expected soft reset:

$\mathbb{E}[u^l[t]] = \gamma u^l[t-1] \odot \left(1 - H_\alpha(\hat{u}^l[t-1])\right) + c^l[t]$

Under this formulation, $H_\alpha(u[t])$ acts as the expected firing probability within the discrete time step. Rather than forcing the post-spike voltage immediately to zero, residual membrane potential exceeding the threshold is retained with probability $1 - H_\alpha(u[t])$ , smoothly interpolating temporal reset behavior during training without modifying the deterministic hard reset used in deployment.

Coverage note — None was omitted; all key theoretical derivations, algorithmic components, static/spatio-temporal benchmark results, ablation studies, and architectural variants (LIF, C-LIF, Recurrent SNN) are comprehensively covered.
