QSGD: Communication-Efficient SGD via Gradient Quantization and Encoding

Dan AlistarhDemjan GrubicJungshian LiRyota TomiokaMilan Vojnovic

article2016NeurIPS1,789 citations

Proposes Quantized SGD (QSGD), a communication-efficient gradient compression scheme with provable convergence guarantees that significantly accelerates distributed deep learning without sacrificing model accuracy.

Listen

Training modern machine learning models across multiple processors is essential for handling massive datasets and large neural network architectures. However, distributed training faces a major physical bottleneck: the high network bandwidth required to constantly transmit multi-million-dimensional gradient updates between nodes. As parallel hardware scales, communication delays increasingly dominate total training time. While heuristic compression methods exist to shrink gradient sizes, they frequently lack mathematical convergence guarantees and can cause optimization to diverge.

The article introduces Quantized Stochastic Gradient Descent (QSGD), a principled family of compression and encoding schemes designed to evaluate whether data transmission during parallel training can be drastically reduced without compromising mathematical convergence guarantees or baseline model accuracy.

To demonstrate this, the authors designed a framework combining unbiased randomized rounding with specialized integer encoding. They analytically proved its convergence rates across smooth convex, non-convex, and asynchronous optimization settings, including variance-reduced techniques. The authors then empirically validated the system using Microsoft Cognitive Toolkit on multi-GPU Amazon EC2 instances, testing various deep learning architectures across standard vision and speech recognition benchmarks.

The evaluation revealed several key findings. First, QSGD achieves significant bandwidth savings, enabling gradient transfers in roughly 2.8 bits per dimension (a 5.7-fold reduction compared to standard 32-bit floating-point values) with only a minimal two-fold increase in variance. Second, these communication savings translate into substantial end-to-end acceleration: multi-GPU training time decreased by 2.5 times for AlexNet on 16 GPUs, 2.7 times for speech recognition models on two GPUs, and approximately 1.8 to 2 times for computationally heavy vision models such as ResNet-152. Third, using 4-bit or 8-bit quantization reliably matches or slightly exceeds the final top-1 predictive accuracy of full-precision 32-bit baselines, acting as beneficial regularization noise during training. Fourth, communication savings scale favorably as processor counts increase, where standard 32-bit setups spend over 70 to 80 percent of training time merely waiting on network exchanges.

These findings imply that distributed machine learning workflows can achieve substantially higher computational throughput and lower cloud infrastructure costs without requiring architecture-specific hyperparameter retuning. Unlike existing sign-based heuristics, QSGD guarantees provable convergence without the memory overhead of local error-accumulation buffers.

Organizations training large-scale deep models should consider adopting 4-bit or 8-bit QSGD with gradient bucketing for distributed multi-GPU workloads to improve cluster utilization. Future implementations should explore native message-passing support for sparse data structures and evaluate the algorithm's scaling limits in high-performance supercomputing environments.

Decision-makers should note that the primary operational limitation lies in tuning quantization aggressiveness against network architecture sensitivity. Highly convolutional vision networks show performance degradation under aggressive 2-bit compression, requiring moderate 4-bit or 8-bit settings, whereas recurrent speech networks tolerate lower precision well. Overall confidence in the system's efficacy is high, as the analytical convergence bounds are directly supported by rigorous multi-GPU empirical benchmarks.

ETH Zurich Google Institute of Science and Technology Austria London School of Economics Massachusetts Institute of Technology Microsoft classification communication overheads compression methods communication-efficient SGD gradient quantization data-parallel SGD

arXiv: 1610.02132

Paper: Accelerating Stochastic Gradient Descent using Predictive Variance Reduction, Rie Johnson et al. (2013). Learn how variance reduction stabilizes stochastic optimization, providing foundational convergence mechanics that motivate gradient compression schemes in stochastic gradient descent.
Paper: Deep Compression: Compressing Deep Neural Network with Pruning, Trained Quantization and Huffman Coding, Song Han et al. (2015). Understand the foundational techniques of neural network weight quantization and Huffman coding that directly inspire gradient quantization and encoding methods.
Paper: Optimization Methods for Large-Scale Machine Learning, Léon Bottou et al. (2016). Gain essential theoretical background on the convergence behavior and computational complexity trade-offs of stochastic gradient descent at large scale.
Paper: Estimating or Propagating Gradients Through Stochastic Neurons for Conditional Computation, Yoshua Bengio et al. (2013). Explore stochastic gradient estimation through discrete operations, which underpins the design of unbiased stochastic rounding and quantization operators.
Paper: DoReFa-Net: Training Low Bitwidth Convolutional Neural Networks with Low Bitwidth Gradients, Shuchang Zhou et al. (2016). Examine how stochastic low-bitwidth gradient approximations are applied during neural network backpropagation to enable efficient training.

Paper: Deep Gradient Compression: Reducing the Communication Bandwidth for Distributed Training, Yujun Lin et al. (2018). See how extreme gradient compression scales beyond quantization by combining aggressive sparsification with momentum correction and local gradient accumulation.
Paper: Federated Learning: Strategies for Improving Communication Efficiency, Jakub Konečný et al. (2016). Extend quantized communication concepts into federated learning frameworks using structured updates and sketched probabilistic quantization.
Paper: PyTorch Distributed: Experiences on Accelerating Data Parallel Training, Shen Li et al. (2020). Discover how production-grade data-parallel distributed training systems integrate communication overlapping and gradient bucketing.
Paper: Accurate, Large Minibatch SGD: Training ImageNet in 1 Hour, Priya Goyal et al. (2017). Examine the scaling limits of distributed synchronous SGD and complementary learning rate schedules across hundreds of GPUs.
Paper: Deep Leakage from Gradients, Ligeng Zhu et al. (2019). Explore the privacy vulnerabilities inherent in exchanging gradients across distributed nodes and how gradient transmission can expose private data.

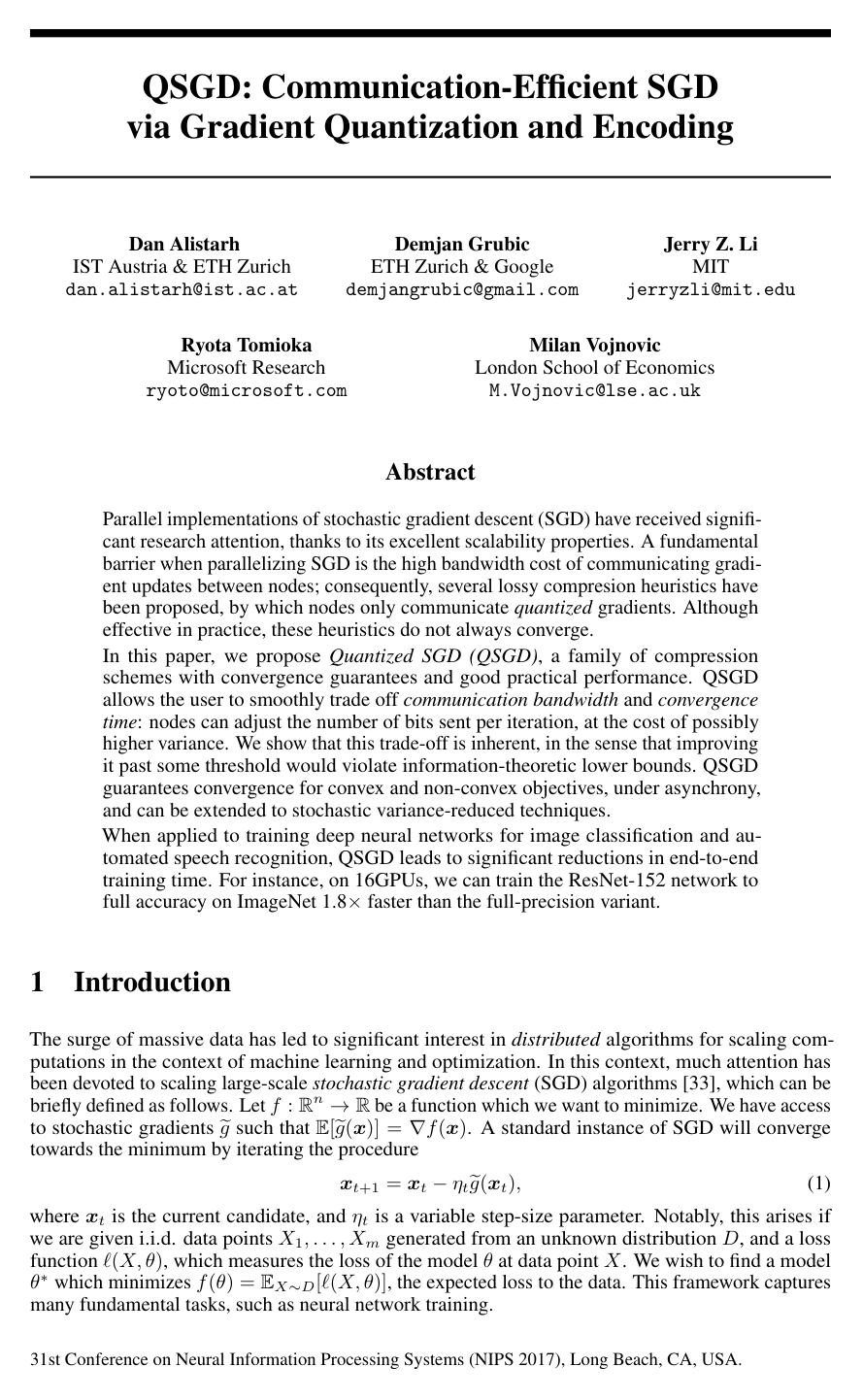

Cover for QSGD: Communication-Efficient SGD via Gradient Quantization and Encoding

Abstract

Parallel implementations of stochastic gradient descent (SGD) have received significant research attention, thanks to excellent scalability properties of this algorithm, and to its efficiency in the context of training deep neural networks. A fundamental barrier for parallelizing large-scale SGD is the fact that the cost of communicating the gradient updates between nodes can be very large. Consequently, lossy compression heuristics have been proposed, by which nodes only communicate quantized gradients. Although effective in practice, these heuristics do not always provably converge, and it is not clear whether they are optimal.

In this paper, we propose Quantized SGD (QSGD), a family of compression schemes which allow the compression of gradient updates at each node, while guaranteeing convergence under standard assumptions. QSGD allows the user to trade off compression and convergence time: it can communicate a sublinear number of bits per iteration in the model dimension, and can achieve asymptotically optimal communication cost. We complement our theoretical results with empirical data, showing that QSGD can significantly reduce communication cost, while being competitive with standard uncompressed techniques on a variety of real tasks.

In particular, experiments show that gradient quantization applied to training of deep neural networks for image classification and automated speech recognition can lead to significant reductions in communication cost, and end-to-end training time. For instance, on 16 GPUs, we are able to train a ResNet-152 network on ImageNet 1.8x faster to full accuracy. Of note, we show that there exist generic parameter settings under which all known network architectures preserve or slightly improve their full accuracy when using quantization.

Topics

classification communication overheads compression methods gpus image classification lossy compressions neural networks parallel implementations parallelizing stochastic

Keywords

communication-efficient SGD gradient quantization data-parallel SGD stochastic gradient descent stochastic quantization SVRG variance reduction parallel SVRG communication complexity convex optimization

1 Introduction
2 Preliminaries
3 Quantized Stochastic Gradient Descent (QSGD)
3.1 Generalized Stochastic Quantization and Coding
3.2 QSGD Guarantees
3.3 Quantized Variance-Reduced SGD
4 QSGD Variants
5 Experiments
6 Conclusions and Future Work
7 Acknowledgments
References
A Proof of Lemmas and Theorems
A.1 Proof of Lemma
A.2 A Compression Scheme for QsQ_{s} Matching Theorem
A.3 A Compression Scheme for QsQ_{s} Matching Theorem
B Quantized SVRG
C Quantization for Non-convex SGD
D Asynchronous QSGD
E Experiments
F Quantized Gradient Descent: Description and Analysis
G Quantized SVRG

Knowls

Knowl 1 — Generalized Stochastic Quantization Operator
definition
For any non-zero vector $v \in \mathbb{R}^n$ and an integer parameter $s \ge 1$ denoting the number of quantization levels, the stochastic quantization operator $Q_s(v)$ is defined coordinate-wise by:

$Q_s(v_i) = \|v\|_2 \cdot \operatorname{sgn}(v_i) \cdot \xi_i(v, s)$

where $\operatorname{sgn}(v_i) \in \{-1, +1\}$ denotes the sign of $v_i$ (with $\operatorname{sgn}(0) = 1$ ), and the random variables $\xi_i(v, s)$ are independent. For an integer $\ell$ satisfying $0 \le \ell < s$ such that $\frac{|v_i|}{\|v\|_2} \in \left[\frac{\ell}{s}, \frac{\ell+1}{s}\right]$ , $\xi_i(v, s)$ is distributed as:

$\xi_i(v, s) = \begin{cases} \frac{\ell}{s} & \text{with probability } 1 - p\left(\frac{|v_i|}{\|v\|_2}, s\right) \\ \frac{\ell+1}{s} & \text{with probability } p\left(\frac{|v_i|}{\|v\|_2}, s\right) \end{cases}$

where $p(a, s) = as - \ell$ for any $a \in [0, 1]$ . For $v = 0$ , the operator is defined as $Q_s(0) = 0$ .

For any vector $v \in \mathbb{R}^n$ , the stochastic quantization function satisfies three fundamental properties:
1. Unbiasedness: $\mathbb{E}[Q_s(v)] = v$ .
2. Variance Bound: $\mathbb{E}\left[\|Q_s(v) - v\|_2^2\right] \le \min\left(\frac{n}{s^2}, \frac{\sqrt{n}}{s}\right)\|v\|_2^2$ .
3. Expected Sparsity: $\mathbb{E}\left[\|Q_s(v)\|_0\right] \le s(s + \sqrt{n})$ , where $\|\cdot\|_0$ denotes the number of non-zero coordinates.
Knowl 2 — Lossless Elias Encoding Bounds for Quantized Gradients
theoretical result
A quantized gradient $Q_s(v) \in \mathbb{R}^n$ is uniquely represented by the tuple $(\|v\|_2, \sigma, \zeta)$ , where the $\ell_2$ -norm $\|v\|_2$ is stored as a single-precision float using $F = 32$ bits, $\sigma \in \{-1, +1\}^n$ is the coordinate sign vector, and $\zeta \in \{0, 1, \dots, s\}^n$ contains the quantized integer levels $\zeta_i = s \cdot \xi_i(v, s)$ . Coordinates and distance offsets between non-zero coordinates are encoded using recursive Elias omega integer coding, which encodes any positive integer $k$ in $|\operatorname{Elias}(k)| \le (1 + o(1))\log_2 k + 1$ bits.

The expected communication lengths under this encoding scheme satisfy:
1. General Sparse Regime ( $s \ge 2$ ): By encoding distances between non-zero coordinates, the expected number of transmitted bits for $Q_s(v)$ is at most:
$\left(3 + \left(\frac{3}{2} + o(1)\right)\log_2\left(\frac{2(s^2+n)}{s(s+\sqrt{n})}\right)\right)s(s+\sqrt{n}) + 32$
1. Extreme Sparse Regime ( $s = 1$ ): When quantizing coordinates to $\{-1, 0, 1\}$ , the expected bit length is at most $O(\sqrt{n}\log n)$ bits per vector, with a variance blowup factor of at most $\sqrt{n}$ .
2. Dense Regime ( $s = \sqrt{n}$ ): When encoding each coordinate sequentially with offset Elias coding $\operatorname{Elias}'(k) = \operatorname{Elias}(k+1)$ , the expected number of bits communicated per update is bounded by:
$\mathbb{E}\left[|\operatorname{Code}'_{\sqrt{n}}(Q_{\sqrt{n}}(v))|\right] \le 2.8n + 32$

In this regime, the multiplicative variance blowup factor $\min(n/s^2, \sqrt{n}/s)$ is at most $1$ , so $\mathbb{E}[\|Q_{\sqrt{n}}(v)\|_2^2] \le 2\|v\|_2^2$ .
Knowl 3 — Synchronous Parallel Quantized Stochastic Gradient Descent
algorithm
Synchronous parallel Quantized Stochastic Gradient Descent (QSGD) performs distributed data-parallel optimization across $K$ parallel worker processors. Each processor computes a local stochastic gradient on its local data partition, compresses the gradient vector via stochastic quantization and lossless Elias coding, exchanges compressed messages with all other workers, decodes the updates, and applies the averaged gradient step to its local copy of the parameter vector.
Input: Initial parameter vector $x_0 \in \mathbb{R}^n$ , total iterations $T$ , step sizes $(\eta_t)_{t=0}^{T-1}$ , number of quantization levels $s \ge 1$ , $K$ worker processors.
Output: Final parameter vector $x_T$ or iterate average $\frac{1}{T}\sum_{t=0}^{T-1} x_t$ .
for iteration $t = 0, 1, \dots, T-1$ do
    for each processor $i \in \{1, \dots, K\}$ in parallel do
        Compute local stochastic gradient $\tilde{g}_i(x_t)$ satisfying $\mathbb{E}[\tilde{g}_i(x_t)] = \nabla f(x_t)$
        Quantize and encode: $M_i \leftarrow \operatorname{Encode}(Q_s(\tilde{g}_i(x_t)))$
        Broadcast message $M_i$ to all peer processors
        for each peer processor $\ell \in \{1, \dots, K\}$ do
            Receive message $M_\ell$ from processor $\ell$
            Decode update: $\hat{g}_\ell \leftarrow \operatorname{Decode}(M_\ell)$
        Compute aggregate gradient: $\bar{g} \leftarrow \frac{1}{K} \sum_{\ell=1}^K \hat{g}_\ell$
        Update parameter: $x_{t+1} \leftarrow x_t - \eta_t \bar{g}$
Knowl 4 — Convergence Rate of QSGD for Smooth Convex Functions
theoretical result
Let $\mathcal{X} \subseteq \mathbb{R}^n$ be a convex set, and let $f: \mathcal{X} \to \mathbb{R}$ be a convex, $L$ -smooth objective function. Suppose $K$ parallel processors have access to independent stochastic gradients with second moment bounded by $\mathbb{E}[\|\tilde{g}(x)\|_2^2] \le B$ for all $x \in \mathcal{X}$ . Let $x_0 \in \mathcal{X}$ be the initial iterate and $R = \sup_{x \in \mathcal{X}} \|x - x_0\|_2$ .

When parallel QSGD is executed with $s$ quantization levels, step size $\eta_t = 1 / (L + \sqrt{K}/\gamma)$ with $\gamma = \frac{R}{B'} \sqrt{\frac{2}{T}}$ and effective second moment $B' = \min\left(\frac{n}{s^2}, \frac{\sqrt{n}}{s}\right)B$ , achieving an expected suboptimality gap:

$\mathbb{E}\left[ f\left( \frac{1}{T} \sum_{t=0}^T x_t \right) \right] - \min_{x \in \mathcal{X}} f(x) \le \epsilon$

requires a total iteration count of:

$T = O\left( R^2 \cdot \max\left( \frac{2 B'}{K \epsilon^2}, \frac{L}{\epsilon} \right) \right)$

In the dense regime with $s = \sqrt{n}$ , communication is at most $2.8n + 32$ bits per processor per iteration, and the variance bound satisfies $B' \le B$ , requiring at most $2\times$ the number of iterations of full-precision parallel SGD.
Knowl 5 — Convergence Rate of QSGD for Smooth Non-Convex Functions
theoretical result
Let $f: \mathbb{R}^n \to \mathbb{R}$ be an $L$ -smooth (possibly non-convex) function with global infimum $f^* = \inf_{x} f(x)$ , and let $x_1 \in \mathbb{R}^n$ be an initial candidate. Assume access to unbiased stochastic gradients $\tilde{g}(x)$ with second moment bounded by $\mathbb{E}[\|\tilde{g}(x)\|_2^2] \le B$ .

For any quantization level $s > 0$ and target iteration budget $N$ , QSGD with constant step size $\eta = O(1/L)$ guarantees the existence of a random stopping time $R$ uniformly supported on $\{1, \dots, N\}$ such that the expected squared gradient norm satisfies:

$\frac{1}{L} \mathbb{E}\left[ \|\nabla f(x_R)\|_2^2 \right] \le O\left( \frac{\sqrt{L(f(x_1) - f^*)}}{N} + \frac{\min(n/s^2, \sqrt{n}/s)B}{L} \right)$

The per-iteration communication cost is bounded by the same lossless Elias encoding bounds as in the convex case (at most $2.8n + 32$ bits per worker per step when $s = \sqrt{n}$ ).
Knowl 6 — Quantized Stochastic Variance-Reduced Gradient Method and Convergence
model/method
Quantized SVRG (QSVRG) extends stochastic variance-reduced gradient descent to communication-constrained distributed environments by quantizing both the snapshot full gradient and the individual stochastic updates using $Q(v, \sqrt{n})$ . Let $f(x) = \frac{1}{m} \sum_{i=1}^m f_i(x)$ be $\ell$ -strongly convex on $\mathbb{R}^n$ , where each component function $f_i$ is convex and $L$ -smooth. The data is partitioned across $K$ processors, where processor $i$ knows $h_i(x) = \frac{1}{m}\sum_{j=im/K}^{(i+1)m/K - 1} f_j(x)$ .

At the beginning of epoch $p$ , each processor broadcasts its snapshot gradient $H_{p,i} = Q(\nabla h_i(y^{(p)}), \sqrt{n})$ so that workers assemble $H_p = \sum_{i=1}^K H_{p,i}$ . In each iteration $t = 1, \dots, T$ of epoch $p$ , processor $i$ draws an independent random sample $j_{i,t}^{(p)} \in \{1, \dots, m\}$ and broadcasts:

$u_{t,i}^{(p)} = Q\left( \nabla f_{j_{i,t}^{(p)}}(x_t^{(p)}) - \nabla f_{j_{i,t}^{(p)}}(y^{(p)}) + H_p, \sqrt{n} \right)$

Processors aggregate $u_t^{(p)} = \frac{1}{K} \sum_{i=1}^K u_{t,i}^{(p)}$ , update $x_{t+1}^{(p)} = x_t^{(p)} - \eta u_t^{(p)}$ , and set the epoch checkpoint $y^{(p+1)} = \frac{1}{T} \sum_{t=1}^T x_t^{(p)}$ .

With step size $\eta = O(1/L)$ and epoch length $T = O(L/\ell)$ , QSVRG achieves linear convergence:

$\mathbb{E}\left[ f(y^{(p+1)}) \right] - f(x^*) \le 0.9^p \left( f(y^{(1)}) - f(x^*) \right)$

where $x^*$ is the unique minimizer of $f$ . Over $P$ epochs and $T$ iterations per epoch, each processor transmits at most $P(F + 2.8n)(T + 1)$ bits, where $F = 32$ is the bit width of the norm scaling factor.
Knowl 7 — Ergodic Convergence of QSGD in Asynchronous Parameter-Server Settings
theoretical result
Consider an asynchronous parameter-server architecture where worker nodes independently compute stochastic gradients, quantize them using $Q_s$ , and transmit updates to a central parameter server. Gradients are applied with a bounded staleness delay of at most $T$ iterations relative to the current master parameter vector.

Let $f: \mathbb{R}^n \to \mathbb{R}$ be $L$ -smooth with infimum $f^* = \inf_x f(x)$ . Let stochastic gradients have variance bounded by $\sigma^2$ , and define the effective quantized variance as $\sigma_s^2 = \left(1 + \min\left(\frac{n}{s^2}, \frac{\sqrt{n}}{s}\right)\right)\sigma^2$ . For $K$ total iterations and minibatch size $M$ , if the step size sequence $\{\gamma_k\}_{k=1}^K$ satisfies:

$LM \gamma_k + 2L^2 M^2 T \gamma_k \sum_{\kappa=1}^T \gamma_{k+\kappa} \le 1, \quad \forall k \ge 1$

then defining $\Gamma = \sum_{k=1}^K \gamma_k$ , the iterates generated by asynchronous QSGD satisfy:

$\frac{\sum_{k=1}^K \gamma_k \mathbb{E}[\|\nabla f(x_k)\|_2]}{\Gamma} \le \frac{2(f(x_1) - f^*) + \sum_{k=1}^K \left(\gamma_k^2 M L + 2 L^2 M^2 \gamma_k \sum_{j=k-T}^{k-1} \gamma_j^2 \right) \sigma_s^2}{M \Gamma}$
Knowl 8 — Variance Reduction via Gradient Bucketing and Max-Norm Scaling
model/method
In practical implementations of QSGD, two modifications to basic stochastic quantization control variance and maintain accuracy:
1. Gradient Bucketing: A gradient vector $v \in \mathbb{R}^n$ is divided into contiguous sub-vectors (buckets) of fixed dimension $d \le n$ , where the $i$ -th bucket is $v[(i-1)d + 1 : i \cdot d]$ . Quantization $Q_s$ is applied independently to each bucket, attaching an individual float scaling factor per bucket. This makes the variance blowup depend on the bucket dimension $d$ rather than the full parameter dimension $n$ :
$\mathbb{E}\left[ \|Q_s(v_{\text{bucket}}) - v_{\text{bucket}}\|_2^2 \right] \le \min\left(\frac{d}{s^2}, \frac{\sqrt{d}}{s}\right) \|v_{\text{bucket}}\|_2^2$

For example, using bucket size $d = 512$ with 4-bit quantization ( $s = 16$ ), the variance blowup factor is bounded by $\frac{\sqrt{512}}{16} \approx 1.41$ .
1. Max-Norm Scaling: Rather than scaling by the $\ell_2$ -norm $\|v\|_2$ , each bucket is normalized by its maximum coordinate magnitude $\|v\|_\infty = \max_i |v_i|$ . This preserves higher dynamic range and improves empirical convergence accuracy at the expense of coordinate sparsity.
Knowl 9 — Linear Convergence of Deterministic Quantized Gradient Descent
theoretical result
For standard (non-stochastic) gradient descent with communication constraints between computation and parameter storage nodes, a deterministic quantization operator $Q(v)$ is defined by selecting the smallest index set $I(v)$ of largest components such that $\sum_{i \in I(v)} |v_i| \ge \|v\|_2$ , setting $Q(v)_i = \|v\|_2 \operatorname{sgn}(v_i)$ for $i \in I(v)$ and $Q(v)_i = 0$ otherwise.

The deterministic quantization function satisfies:
1. $v^T Q(v) \ge \|v\|_2^2$ ,
2. Sparsity bound: $|I(v)| \le \sqrt{n}$ ,
3. Norm bound: $\|Q(v)\|_2^2 \le \sqrt{n} \|v\|_2^2$ ,
4. Bit length: $|\operatorname{Code}(Q(v))| \le \sqrt{n}(\log_2 n + 1 + \log_2 e) + F$ bits, where $F$ is the float bit width.
For an $\ell$ -strongly convex, $L$ -smooth function $f: \mathbb{R}^n \to \mathbb{R}$ with condition number $\kappa = L/\ell$ and unique minimizer $x^*$ , running quantized gradient descent $x_{t+1} = x_t - \eta Q(\nabla f(x_t))$ with step size $\eta \le O\left(\frac{\ell}{L^2 \sqrt{n}}\right)$ achieves linear convergence:

$f(x_T) - f(x^*) \le \exp\left( -\Omega\left( \frac{1}{\kappa^2 \sqrt{n}} \right) T \right) (f(x_0) - f(x^*))$

Knowl 10 — Multi-GPU End-to-End Training Accuracy and Speedup with QSGD

data/table

Distributed neural network training with QSGD was evaluated in Microsoft CNTK on Amazon EC2 p2.16xlarge instances (up to 16 NVIDIA K80 GPUs). Quantization was applied to all parameter matrices with $>10\text{K}$ elements (covering $>99\%$ of model parameters) while preserving standard full-precision hyperparameters.

Network	Dataset	Params	Init. Rate	Top-1 (32bit)	Top-1 (QSGD)	Speedup (8 GPUs)
AlexNet	ImageNet	62M	0.07	59.50%	60.05% (4bit)	2.05 $\times$
ResNet152	ImageNet	60M	1.0	77.00%	76.74% (8bit)	1.56 $\times$
ResNet50	ImageNet	25M	1.0	74.68%	74.76% (4bit)	1.26 $\times$
ResNet110	CIFAR-10	1M	0.1	93.86%	94.19% (4bit)	1.10 $\times$
BN-Inception	ImageNet	11M	3.6	–	–	1.16 $\times$ (projected)
VGG19	ImageNet	143M	0.1	–	–	2.25 $\times$ (projected)
LSTM	AN4	13M	0.5	81.13%	81.15% (4bit)	2.00 $\times$ (2 GPUs)

On communication-intensive models (AlexNet, VGG19, LSTM), 4-bit and 8-bit QSGD match or slightly improve upon full-precision top-1 test accuracy while delivering significant end-to-end acceleration. On 16 GPUs, 4-bit QSGD reduces AlexNet communication time by $4\times$ and epoch time by $2.5\times$ . On 2 GPUs for LSTM on AN4, communication time drops by $6.8\times$ and epoch time by $2.7\times$ . Computation-heavy architectures (ResNet-152) also experience end-to-end training speedups ( $1.56\times$ on 8 GPUs, $\approx 2\times$ on 16 GPUs) without loss of classification accuracy.

Coverage note — Proofs, intermediate algebraic bounds (such as Jensen's inequality bounds on Elias code length), and general lower-bound literature connections for distributed mean estimation were deliberately omitted in accordance with the extraction rules.
