Denoising Diffusion Restoration Models

Bahjat KawarMichael EladS. ErmonJiaming Song

article2022NeurIPS1,395 citations

Proposes Denoising Diffusion Restoration Models (DDRM), an unsupervised method that leverages pre-trained unconditional diffusion models to efficiently solve diverse linear inverse problems—such as super-resolution, deblurring, and inpainting—in as few as 20 steps without requiring task-specific training.

Listen

Real-world image restoration tasks, such as enhancing resolution, removing blur, filling in missing regions, and adding color, are fundamental across fields like medical imaging and consumer photography. Existing machine learning solutions present a difficult trade-off: supervised methods deliver fast results but require specialized retraining for every new type of degradation, while flexible unsupervised methods that use pre-trained image models typically rely on slow, computationally demanding iterative procedures requiring hundreds or thousands of steps.

The article demonstrates an unsupervised restoration framework called Denoising Diffusion Restoration Models (DDRM). The objective of the work is to show that a single pre-trained generative diffusion model can solve diverse linear inverse image restoration tasks efficiently and accurately without requiring task-specific retraining.

The authors designed a mathematical approach that transforms degraded image measurements into their underlying spectral components, aligning the measurement noise directly with the diffusion model's denoising schedule. To validate performance, the authors conducted extensive experiments across standard benchmarks, evaluating image fidelity, structural similarity, and perceptual visual quality. The evaluation tested tasks such as super-resolution, deblurring, inpainting, and colorization under both clean and heavily noisy conditions, comparing the method against existing unsupervised algorithms on diverse datasets such as ImageNet.

The evaluation revealed several key findings. First, DDRM achieved state-of-the-art reconstruction accuracy and perceptual quality using as few as 20 computational steps, operating at least 50 times faster than prior sampling-based methods that demand 1,000 or more steps. Second, the method maintained strong restoration fidelity when handling substantial measurement noise, avoiding the severe visual artifacts that degrade competing optimization techniques. Third, the framework successfully restored general natural images lying entirely outside the domain of its original training dataset, demonstrating robust cross-domain flexibility.

These findings indicate that organizations can deploy a single pre-trained foundation model to handle multiple distinct imaging problems, significantly reducing compute costs, operational latency, and the need for expensive model retraining pipelines. Furthermore, the framework's resilience against measurement noise improves reliability in mission-critical applications where input data is imperfect.

Decision-makers should consider adopting diffusion-based spectral restoration pipelines where flexible, multi-task image recovery is required at low inference budgets. For future work, development teams should explore expanding the technique to non-linear degradation settings and scenarios where the precise mathematical distortion model is unknown.

Confidence in these findings is high for linear degradation problems with known mathematical operators. However, users should exercise caution when applying the method to non-linear physical distortions or uncharacterized imaging systems, as these scenarios lie outside the current mathematical formulation.

NVIDIA Stanford University Technion – Israel Institute of Technology budgets inference measurement noise denoising diffusion restoration models linear inverse problems image restoration

arXiv: 2201.11793 bahjat-kawar/ddrm

Paper: Denoising Diffusion Probabilistic Models, Jonathan Ho et al. (2020). Establishes the fundamental mathematical formulations and U-Net training techniques for Denoising Diffusion Probabilistic Models (DDPM) that DDRM uses as foundational generative priors.
Paper: Denoising Diffusion Implicit Models, Jiaming Song et al. (2021). Introduces non-Markovian sampling trajectories (DDIM) that enable accelerated diffusion inference schedules upon which DDRM builds its efficient spectral restoration steps.
Paper: Diffusion Models Beat GANs on Image Synthesis, Prafulla Dhariwal et al. (2021). Demonstrates scaled diffusion architectures and guidance principles that provide the high-capacity generative image priors leveraged in zero-shot restoration frameworks.
Paper: Improved Denoising Diffusion Probabilistic Models, Alex Nichol et al. (2021). Refines noise schedules and variance formulations in diffusion models, offering foundational insights for accelerating reverse sampling schedules.
Paper: RePaint: Inpainting using Denoising Diffusion Probabilistic Models, Andreas Lugmayr et al. (2022). Pioneers the use of unconditional pre-trained diffusion models for inverse problems via modified reverse sampling trajectories, serving as direct motivation for DDRM's generalized spectral framework.
Paper: Learning Deep CNN Denoiser Prior for Image Restoration, Kai Zhang et al. (2017). Presents the plug-and-play optimization paradigm for using deep denoisers as explicit priors to solve linear inverse problems.
Paper: Deep Image Prior, Dmitry Ulyanov et al. (2017). Introduces the concept of utilizing unsupervised deep network representations as natural image priors for inverse tasks like super-resolution and inpainting without task-specific retraining.

Paper: Diffusion Posterior Sampling for General Noisy Inverse Problems, Hyungjin Chung et al. (2022). Generalizes diffusion-based inverse solving beyond DDRM's linear operator assumption by introducing Tweedie-based posterior approximations for general noisy and nonlinear inverse problems.
Paper: Diffusion Models: A Comprehensive Survey of Methods and Applications, Ling Yang et al. (2022). Provides a comprehensive taxonomy and survey of diffusion models, contextualizing unsupervised inverse problem solvers like DDRM within broader generative vision methodologies.
Paper: Diffusion Models in Vision: A Survey, Florinel-Alin Croitoru et al. (2022). Surveys the landscape of diffusion models across computer vision tasks, reviewing foundational techniques and modern conditioning methods for image restoration.
Paper: Variational Flow Maps: Make Some Noise for One-Step Conditional Generation, Abbas Mammadov et al. (2026). Advances conditional generation and linear inverse problem recovery by reformulating observation constraints into fast, one-step variational flow maps.

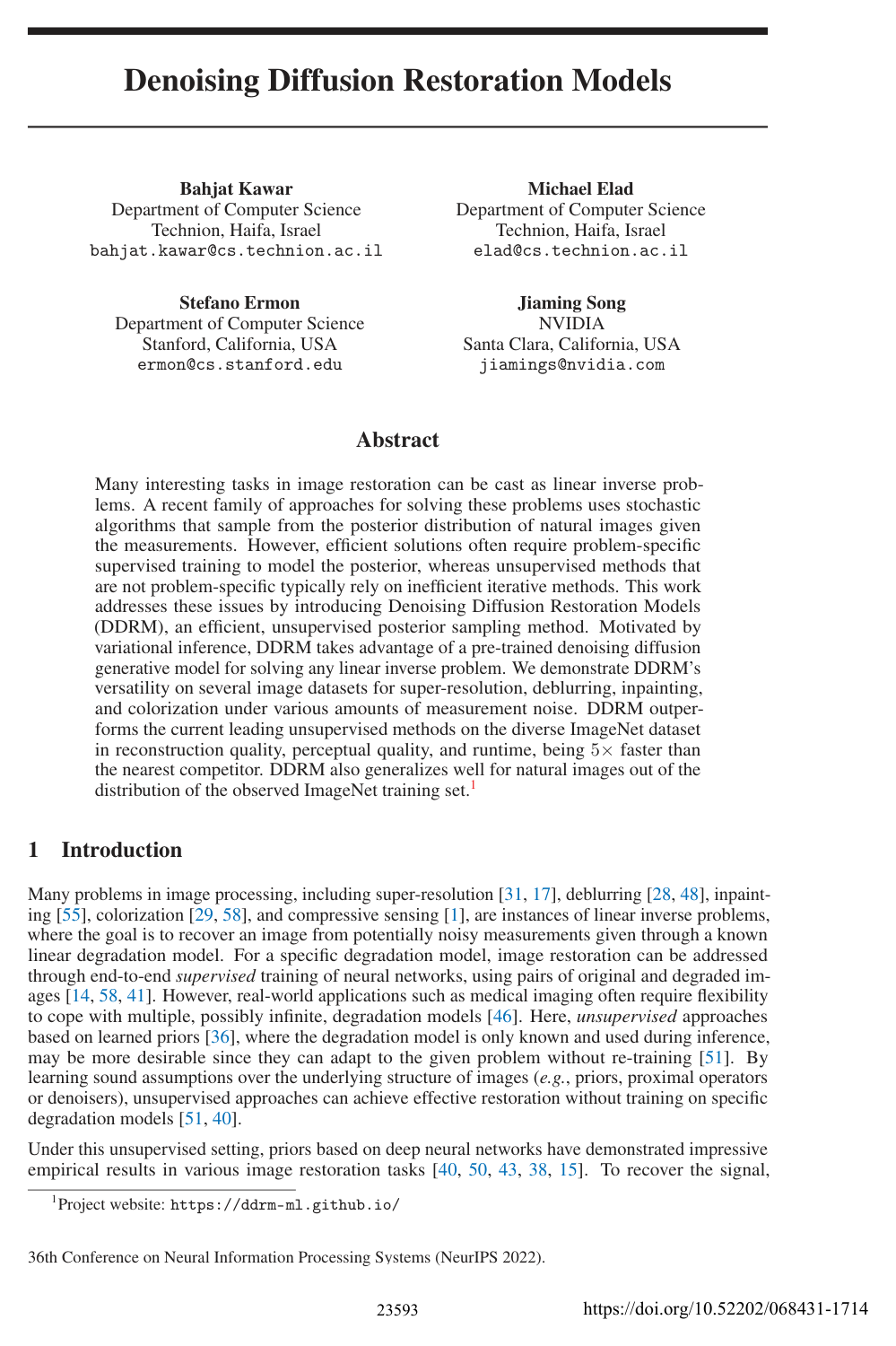

Cover for Denoising Diffusion Restoration Models

Abstract

Many interesting tasks in image restoration can be cast as linear inverse problems. A recent family of approaches for solving these problems uses stochastic algorithms that sample from the posterior distribution of natural images given the measurements. However, efficient solutions often require problem-specific supervised training to model the posterior, whereas unsupervised methods that are not problem-specific typically rely on inefficient iterative methods. This work addresses these issues by introducing Denoising Diffusion Restoration Models (DDRM), an efficient, unsupervised posterior sampling method. Motivated by variational inference, DDRM takes advantage of a pre-trained denoising diffusion generative model for solving any linear inverse problem. We demonstrate DDRM’s versatility on several image datasets for super-resolution, deblurring, inpainting, and colorization under various amounts of measurement noise. DDRM outperforms the current leading unsupervised methods on the diverse ImageNet dataset in reconstruction quality, perceptual quality, and runtime, being 5× faster than the nearest competitor. DDRM also generalizes well for natural images out of the distribution of the observed ImageNet training set.

1 Introduction
2 Background
3 Denoising Diffusion Restoration Models
3.1 Variational Objective for DDRM
3.2 A Diffusion Process for Image Restoration
3.3 “Learning” Image Restoration Models
3.4 Accelerated Algorithms for DDRM
3.5 Memory Efficient SVD
4 Related Work
5 Experiments
5.1 Experimental Setup
5.2 Quantitative Experiments
5.3 Qualitative Experiments
6 Conclusions
References
A Details of the DDRM ELBO objective
B Equivalence between “Variance Preserving” and “Variance Exploding” Diffusion Models
C Proofs
D Memory Efficient SVD
D.1 Denoising
D.2 Inpainting
D.3 Super Resolution
D.4 Colorization
D.5 Deblurring
E Ablation Studies on Hyperparameters
F Experimental Setup of DGP, RED, and SNIPS
G Runtime of Algorithms
H ILVR as a special case of DDRM
I Additional Results

Knowls

Knowl 1 — Spectral Space Representation for Linear Inverse Problems
definition
A linear inverse problem seeks to recover a clean signal $\mathbf{x} \in \mathbb{R}^n$ from degraded measurements $\mathbf{y} \in \mathbb{R}^m$ governed by the observation model:

$\mathbf{y} = \mathbf{H}\mathbf{x} + \mathbf{z}$

where $\mathbf{H} \in \mathbb{R}^{m \times n}$ (with $m \le n$ ) is a known linear degradation operator, and $\mathbf{z} \sim \mathcal{N}(0, \sigma_y^2 \mathbf{I}_m)$ is additive Gaussian noise with known standard deviation $\sigma_y$ .

Using the Singular Value Decomposition (SVD) of the degradation matrix:

$\mathbf{H} = \mathbf{U}\mathbf{\Sigma}\mathbf{V}^\top$

where $\mathbf{U} \in \mathbb{R}^{m \times m}$ and $\mathbf{V} \in \mathbb{R}^{n \times n}$ are orthogonal matrices, and $\mathbf{\Sigma} \in \mathbb{R}^{m \times n}$ is a rectangular diagonal matrix with ordered singular values $s_1 \ge s_2 \ge \dots \ge s_m \ge 0$ (with $s_i = 0$ defined for $i \in [m+1, n]$ ), the spectral-space representations of a diffusion state $\mathbf{x}_t \in \mathbb{R}^n$ and the measurement $\mathbf{y} \in \mathbb{R}^m$ are given by:

$\bar{\mathbf{x}}_t = \mathbf{V}^\top \mathbf{x}_t, \quad \bar{\mathbf{y}} = \mathbf{\Sigma}^\dagger \mathbf{U}^\top \mathbf{y}$

where $\mathbf{\Sigma}^\dagger \in \mathbb{R}^{n \times m}$ is the Moore–Penrose pseudoinverse of $\mathbf{\Sigma}$ . The $i$ -th coordinate of these spectral vectors is denoted by $\bar{x}_t^{(i)}$ and $\bar{y}^{(i)}$ respectively, and the signal $\mathbf{x}_t$ can be recovered exactly via $\mathbf{x}_t = \mathbf{V}\bar{\mathbf{x}}_t$ .
Knowl 2 — DDRM Forward Variational Inference Distribution
model/method
Given a sequence of strictly increasing noise levels $0 = \sigma_0 < \sigma_1 < \sigma_2 < \dots < \sigma_T$ satisfying $\sigma_T \ge \sigma_y / s_i$ for all $s_i > 0$ , Denoising Diffusion Restoration Models (DDRM) define a factorized variational distribution $q(\mathbf{x}_{1:T} | \mathbf{x}_0, \mathbf{y}) = q^{(T)}(\mathbf{x}_T | \mathbf{x}_0, \mathbf{y}) \prod_{t=0}^{T-1} q^{(t)}(\mathbf{x}_t | \mathbf{x}_{t+1}, \mathbf{x}_0, \mathbf{y})$ .

Operating coordinate-wise on the spectral space $\bar{\mathbf{x}}_t = \mathbf{V}^\top \mathbf{x}_t$ , the forward distributions are defined by:

$q^{(T)}(\bar{x}_T^{(i)} | \mathbf{x}_0, \mathbf{y}) = \begin{cases} \mathcal{N}\left(\bar{y}^{(i)},\, \sigma_T^2 - \frac{\sigma_y^2}{s_i^2}\right) & \text{if } s_i > 0 \\ \mathcal{N}\left(\bar{x}_0^{(i)},\, \sigma_T^2\right) & \text{if } s_i = 0 \end{cases}$

and for each timestep $t \in \{0, \dots, T-1\}$ :

$q^{(t)}(\bar{x}_t^{(i)} | \mathbf{x}_{t+1}, \mathbf{x}_0, \mathbf{y}) = \begin{cases} \mathcal{N}\left(\bar{x}_0^{(i)} + \sqrt{1 - \eta^2}\sigma_t \frac{\bar{x}_{t+1}^{(i)} - \bar{x}_0^{(i)}}{\sigma_{t+1}},\, \eta^2\sigma_t^2\right) & \text{if } s_i = 0 \\[2ex] \mathcal{N}\left(\bar{x}_0^{(i)} + \sqrt{1 - \eta^2}\sigma_t \frac{\bar{y}^{(i)} - \bar{x}_0^{(i)}}{\sigma_y / s_i},\, \eta^2\sigma_t^2\right) & \text{if } \sigma_t < \frac{\sigma_y}{s_i} \\[2ex] \mathcal{N}\left((1 - \eta_b)\bar{x}_0^{(i)} + \eta_b \bar{y}^{(i)},\, \sigma_t^2 - \frac{\sigma_y^2}{s_i^2}\eta_b^2\right) & \text{if } \sigma_t \ge \frac{\sigma_y}{s_i} \end{cases}$

where $\eta \in (0, 1]$ is a hyperparameter governing the stochasticity of the transitions, and $\eta_b$ is a scaling hyperparameter.
Knowl 3 — Marginal Gaussianity of DDRM Forward Latents
theoretical result
Let the forward transition distributions $q^{(T)}(\bar{\mathbf{x}}_T | \mathbf{x}_0, \mathbf{y})$ and $q^{(t)}(\bar{\mathbf{x}}_t | \mathbf{x}_{t+1}, \mathbf{x}_0, \mathbf{y})$ be defined according to the DDRM forward variational process. For any time step $t \in \{0, \dots, T\}$ , marginalizing over all intermediate future latents $\mathbf{x}_{t'}$ (for all $t' > t$ ) and over the measurement distribution $q(\mathbf{y} | \mathbf{x}_0) = \mathcal{N}(\mathbf{H}\mathbf{x}_0, \sigma_y^2 \mathbf{I}_m)$ yields isotropic Gaussian marginals:

$q(\mathbf{x}_t | \mathbf{x}_0) = \mathcal{N}(\mathbf{x}_0, \sigma_t^2 \mathbf{I}_n)$

This property guarantees that the marginal distribution of latent representations at every step $t$ matches that of standard unconditional variance-exploding diffusion models.
Knowl 4 — DDRM Reverse Transition Sampling Distribution
model/method
DDRM models the posterior distribution via a conditional Markov chain $p_\theta(\mathbf{x}_{0:T} | \mathbf{y}) = p_\theta^{(T)}(\mathbf{x}_T | \mathbf{y}) \prod_{t=0}^{T-1} p_\theta^{(t)}(\mathbf{x}_t | \mathbf{x}_{t+1}, \mathbf{y})$ .

At each step $t$ , an unconditional or class-conditional denoising neural network $f_\theta(\mathbf{x}_{t+1}, t+1): \mathbb{R}^n \times \mathbb{R} \to \mathbb{R}^n$ produces an estimate $\mathbf{x}_{\theta,t}$ of the clean image $\mathbf{x}_0$ . In the spectral space, $\bar{\mathbf{x}}_{\theta,t} = \mathbf{V}^\top \mathbf{x}_{\theta,t}$ . The reverse conditionals in spectral space are parameterized as:

$p_\theta^{(T)}(\bar{x}_T^{(i)} | \mathbf{y}) = \begin{cases} \mathcal{N}\left(\bar{y}^{(i)},\, \sigma_T^2 - \frac{\sigma_y^2}{s_i^2}\right) & \text{if } s_i > 0 \\ \mathcal{N}\left(0,\, \sigma_T^2\right) & \text{if } s_i = 0 \end{cases}$

and for $t = T-1, \dots, 0$ :

$p_\theta^{(t)}(\bar{x}_t^{(i)} | \mathbf{x}_{t+1}, \mathbf{y}) = \begin{cases} \mathcal{N}\left(\bar{x}_{\theta,t}^{(i)} + \sqrt{1 - \eta^2}\sigma_t \frac{\bar{x}_{t+1}^{(i)} - \bar{x}_{\theta,t}^{(i)}}{\sigma_{t+1}},\, \eta^2\sigma_t^2\right) & \text{if } s_i = 0 \\[2ex] \mathcal{N}\left(\bar{x}_{\theta,t}^{(i)} + \sqrt{1 - \eta^2}\sigma_t \frac{\bar{y}^{(i)} - \bar{x}_{\theta,t}^{(i)}}{\sigma_y / s_i},\, \eta^2\sigma_t^2\right) & \text{if } \sigma_t < \frac{\sigma_y}{s_i} \\[2ex] \mathcal{N}\left((1 - \eta_b)\bar{x}_{\theta,t}^{(i)} + \eta_b \bar{y}^{(i)},\, \sigma_t^2 - \frac{\sigma_y^2}{s_i^2}\eta_b^2\right) & \text{if } \sigma_t \ge \frac{\sigma_y}{s_i} \end{cases}$
Knowl 5 — Equivalence of DDRM ELBO to Unconditional Denoising Objective
theoretical result
Assume that the denoising network components $f_\theta^{(t)}$ and $f_\theta^{(t')}$ do not share weights whenever $t \ne t'$ . When setting the transition hyperparameters to $\eta = 1$ and $\eta_b = \frac{2\sigma_t^2}{\sigma_t^2 + \sigma_y^2 / s_i^2}$ , the evidence lower bound (ELBO) objective for training DDRM on a linear inverse problem reduces to the standard unconditional denoising autoencoder objective:

$\sum_{t=1}^T \gamma_t \mathbb{E}_{(\mathbf{x}_0, \mathbf{x}_t) \sim q(\mathbf{x}_0)q(\mathbf{x}_t | \mathbf{x}_0)} \left[ \|\mathbf{x}_0 - f_\theta^{(t)}(\mathbf{x}_t)\|_2^2 \right]$

where $\gamma_t > 0$ are positive coefficients depending on $q(\mathbf{x}_{1:T} | \mathbf{x}_0)$ .

Because the ELBO decomposes into a weighted sum of squared errors in spectral space, pre-trained unconditional Denoising Diffusion Probabilistic Models (DDPM) or Denoising Diffusion Implicit Models (DDIM) serve as solutions to the DDRM inference problem across any linear inverse problem without retraining.
Knowl 6 — DDRM Sampling Procedure
algorithm
DDRM solves linear inverse problems by generating a sample $\mathbf{x}_0$ from degraded measurements $\mathbf{y}$ across $T$ discrete reverse diffusion steps using a pre-trained unconditional or class-conditional denoiser $f_\theta$ .
Input: Measurements $\mathbf{y} \in \mathbb{R}^m$ , degradation SVD components $\mathbf{U}, \mathbf{\Sigma}, \mathbf{V}$ , noise standard deviation $\sigma_y$ , noise schedule $\sigma_1 < \sigma_2 < \dots < \sigma_T$ , hyperparameters $\eta, \eta_b$ , denoiser $f_\theta$
Output: Reconstructed signal $\mathbf{x}_0 \in \mathbb{R}^n$
Compute $\bar{\mathbf{y}} = \mathbf{\Sigma}^\dagger \mathbf{U}^\top \mathbf{y}$
Initialize $\bar{\mathbf{x}}_T \in \mathbb{R}^n$
for each spectral index $i = 1, \dots, n$ do
    Sample $\epsilon \sim \mathcal{N}(0, 1)$
    if $s_i > 0$ then
         $\bar{x}_T^{(i)} = \bar{y}^{(i)} + \sqrt{\sigma_T^2 - \sigma_y^2 / s_i^2} \cdot \epsilon$
    else
         $\bar{x}_T^{(i)} = \sigma_T \cdot \epsilon$
    end if
end for
$\mathbf{x}_T = \mathbf{V}\bar{\mathbf{x}}_T$
for $t = T-1$ down to $0$ do
     $\mathbf{x}_{\theta,t} = f_\theta(\mathbf{x}_{t+1}, t+1)$
     $\bar{\mathbf{x}}_{\theta,t} = \mathbf{V}^\top \mathbf{x}_{\theta,t}$
     $\bar{\mathbf{x}}_{t+1} = \mathbf{V}^\top \mathbf{x}_{t+1}$
    for each spectral index $i = 1, \dots, n$ do
        Sample $\epsilon \sim \mathcal{N}(0, 1)$
        if $s_i == 0$ then
             $\mu = \bar{x}_{\theta,t}^{(i)} + \sqrt{1 - \eta^2}\sigma_t \frac{\bar{x}_{t+1}^{(i)} - \bar{x}_{\theta,t}^{(i)}}{\sigma_{t+1}}$
             $\bar{x}_t^{(i)} = \mu + \eta \sigma_t \cdot \epsilon$
        else if $\sigma_t < \sigma_y / s_i$ then
             $\mu = \bar{x}_{\theta,t}^{(i)} + \sqrt{1 - \eta^2}\sigma_t \frac{\bar{y}^{(i)} - \bar{x}_{\theta,t}^{(i)}}{\sigma_y / s_i}$
             $\bar{x}_t^{(i)} = \mu + \eta \sigma_t \cdot \epsilon$
        else
             $\mu = (1 - \eta_b)\bar{x}_{\theta,t}^{(i)} + \eta_b \bar{y}^{(i)}$
             $\bar{x}_t^{(i)} = \mu + \sqrt{\sigma_t^2 - (\sigma_y^2 / s_i^2)\eta_b^2} \cdot \epsilon$
        end if
    end for
     $\mathbf{x}_t = \mathbf{V}\bar{\mathbf{x}}_t$
end for
return $\mathbf{x}_0$
Knowl 7 — Memory-Efficient Linear Transformations for Inverse Problems
model/method
Explicit storage of the right singular matrix $\mathbf{V} \in \mathbb{R}^{n \times n}$ requires $\Theta(n^2)$ space, which presents a memory bottleneck for large images ( $n = d \times d \times C$ ). For standard linear inverse tasks, structural properties of $\mathbf{H}$ reduce storage and computation to $\Theta(n)$ space:
1. Inpainting: $\mathbf{H}$ is a diagonal masking matrix, yielding $\mathbf{V} = \mathbf{I}$ with no storage overhead.
2. Deblurring: Circular convolution operators are diagonalized by the 2D Discrete Fourier Transform (DFT). Applying $\mathbf{V}^\top$ and $\mathbf{V}$ corresponds to 2D Fast Fourier Transforms (FFT), executed in $O(n \log n)$ time with $\Theta(n)$ auxiliary space.
3. Super-resolution: Uniform block-averaging downsampling decomposes into 1D orthogonal block filters via 2D Kronecker products, allowing transformation of spatial dimensions independently.
4. Colorization: Channel averaging applies an identical $1 \times 3$ operator across all spatial locations, allowing per-pixel orthogonal transforms with $O(1)$ extra memory.

Knowl 8 — ImageNet Restoration Performance under Noiseless Conditions

data/table

Evaluation of unsupervised restoration methods on $256 \times 256$ ImageNet validation images (1 image per each of the 1000 classes) for noiseless $4\times$ super-resolution (block averaging) and uniform deblurring ( $9 \times 9$ kernel). DDRM achieves state-of-the-art PSNR and SSIM within 20 neural function evaluations (NFEs), providing up to a $50\times$ reduction in NFEs compared to sampling baselines.

Method	$4\times$ super-resolution				Deblurring
Method	PSNR $\uparrow$	SSIM $\uparrow$	KID $\downarrow$	NFEs $\downarrow$	PSNR $\uparrow$	SSIM $\uparrow$	KID $\downarrow$	NFEs $\downarrow$
Baseline	25.65	0.71	44.90	0	19.26	0.48	38.00	0
DGP	23.06	0.56	21.22	1500	22.70	0.52	27.60	1500
RED	26.08	0.73	53.55	100	26.16	0.76	21.21	500
SNIPS	17.58	0.22	35.17	1000	34.32	0.87	0.49	1000
DDRM	26.55	0.72	7.22	20	35.64	0.95	0.71	20
DDRM-CC	26.55	0.74	6.56	20	35.65	0.96	0.70	20

KID values are multiplied by $10^3$ . Baseline refers to bicubic upscaling for super-resolution and the blurry image for deblurring. DDRM-CC incorporates ground-truth class labels.

Knowl 9 — ImageNet Restoration Performance under Measurement Noise

data/table

Evaluation of unsupervised restoration methods on $256 \times 256$ ImageNet validation images (1 image per each of the 1000 classes) under additive Gaussian measurement noise with $\sigma_y = 0.05$ . Optimization- and projection-based baselines (DGP, RED, SNIPS) degrade substantially in the presence of noise, whereas DDRM maintains high fidelity and perceptual quality at 20 NFEs.

Method	$4\times$ super-resolution				Deblurring
Method	PSNR $\uparrow$	SSIM $\uparrow$	KID $\downarrow$	NFEs $\downarrow$	PSNR $\uparrow$	SSIM $\uparrow$	KID $\downarrow$	NFEs $\downarrow$
Baseline	22.55	0.46	67.86	0	18.35	0.20	75.50	0
DGP	20.69	0.43	42.17	1500	21.20	0.45	34.02	1500
RED	22.90	0.49	43.45	100	14.69	0.08	121.82	500
SNIPS	16.30	0.14	67.77	1000	16.37	0.14	77.96	1000
DDRM	25.21	0.66	12.43	20	25.45	0.66	15.24	20
DDRM-CC	25.22	0.67	10.82	20	25.46	0.67	13.49	20

KID values are multiplied by $10^3$ . Measurements have additive Gaussian noise $\sigma_y = 0.05$ added before reconstruction.

Knowl 10 — Methodological Limitations of DDRM
limitation
DDRM has several structural limitations:
1. Linear Degradation Restriction: The formulation strictly assumes a linear degradation operator $\mathbf{H}$ with a computationally tractable Singular Value Decomposition (SVD); it is not directly applicable to non-linear inverse problems.
2. Known Forward Model and Noise Level: The exact degradation matrix $\mathbf{H}$ and measurement noise variance $\sigma_y^2$ must be known a priori at inference time, precluding blind restoration without explicit extensions.
3. Heuristic Hyperparameter Tuning: Hyperparameters including transition stochasticity $\eta$ , scaling factor $\eta_b$ , and the step-skipping schedule are selected via empirical heuristics rather than derived adaptively or learned end-to-end.

Coverage note — None was omitted; all primary theoretical formulations, equivalence theorems, algorithmic definitions, empirical results on ImageNet, memory optimizations, and stated limitations were included.
