CCNet: Criss-Cross Attention for Semantic Segmentation

Zilong HuangXinggang WangLichao HuangChang HuangYunchao WeiHumphrey ShiWenyu Liu

article2019ICCV3,087 citations

Introduces CCNet, a criss-cross attention network that captures global visual context for semantic segmentation while reducing GPU memory usage by eleven times and computation by 85 percent compared to standard non-local blocks.

Listen

Semantic segmentation assigns class labels to every pixel in an image and supports key applications such as autonomous driving and remote sensing. Conventional fully convolutional networks capture only local context, which reduces accuracy, while prior attention methods that gather full-image context incur high computational and memory costs that limit practical use.

The work set out to deliver full-image contextual information for semantic segmentation at far lower cost than existing attention mechanisms. The authors introduced the Criss-Cross Network (CCNet), which replaces dense attention with a recurrent criss-cross attention module. Each pixel aggregates information only along its horizontal and vertical paths; two successive modules allow every pixel to reach all other pixels. A category-consistent loss further encourages discriminative features, and the module extends naturally to three-dimensional video data.

Extensive experiments on Cityscapes, ADE20K, LIP, CamVid, and COCO show that CCNet reaches new state-of-the-art mean intersection-over-union scores of 81.9 percent, 45.76 percent, and 55.47 percent on the respective test or validation sets. The recurrent criss-cross module uses roughly one-eleventh the GPU memory and 85 percent fewer floating-point operations than a non-local block while still delivering higher accuracy. Adding the category-consistent loss yields an additional 0.7-point gain, and the same module improves instance segmentation when inserted into Mask R-CNN.

These results indicate that dense prediction tasks can obtain global context without prohibitive resource demands, lowering barriers to deployment on edge devices and in real-time systems. The approach also generalizes across image and video segmentation benchmarks.

The source code is publicly released, enabling immediate integration into existing fully convolutional pipelines. Further work could explore larger-scale video datasets and hardware-specific optimizations. The main limitations are that performance gains were measured on standard academic benchmarks rather than production-scale data, and the method still requires careful hyper-parameter tuning of the loss weights. Overall, the evidence supports confident adoption for accuracy-critical segmentation workloads where memory or compute budgets are constrained.

Horizon Robotics Huazhong University of Science and Technology University of Illinois Urbana-Champaign University of Oregon University of Technology Sydney computational efficiency object detection parsing algorithm recurrent criss-cross attention semantic segmentation full-image contextual information

arXiv: 1811.11721 speedinghzl/CCNet

Paper: Non-local Neural Networks, Xiaolong Wang et al. (2018). Reading non-local neural networks first provides the essential background on non-local attention operations that CCNet adapts and makes more efficient via criss-cross paths.

Paper: Dual Attention Network for Scene Segmentation, Jun Fu et al. (2019). This paper extends the contextual attention paradigm by introducing parallel position and channel attention modules for scene segmentation.

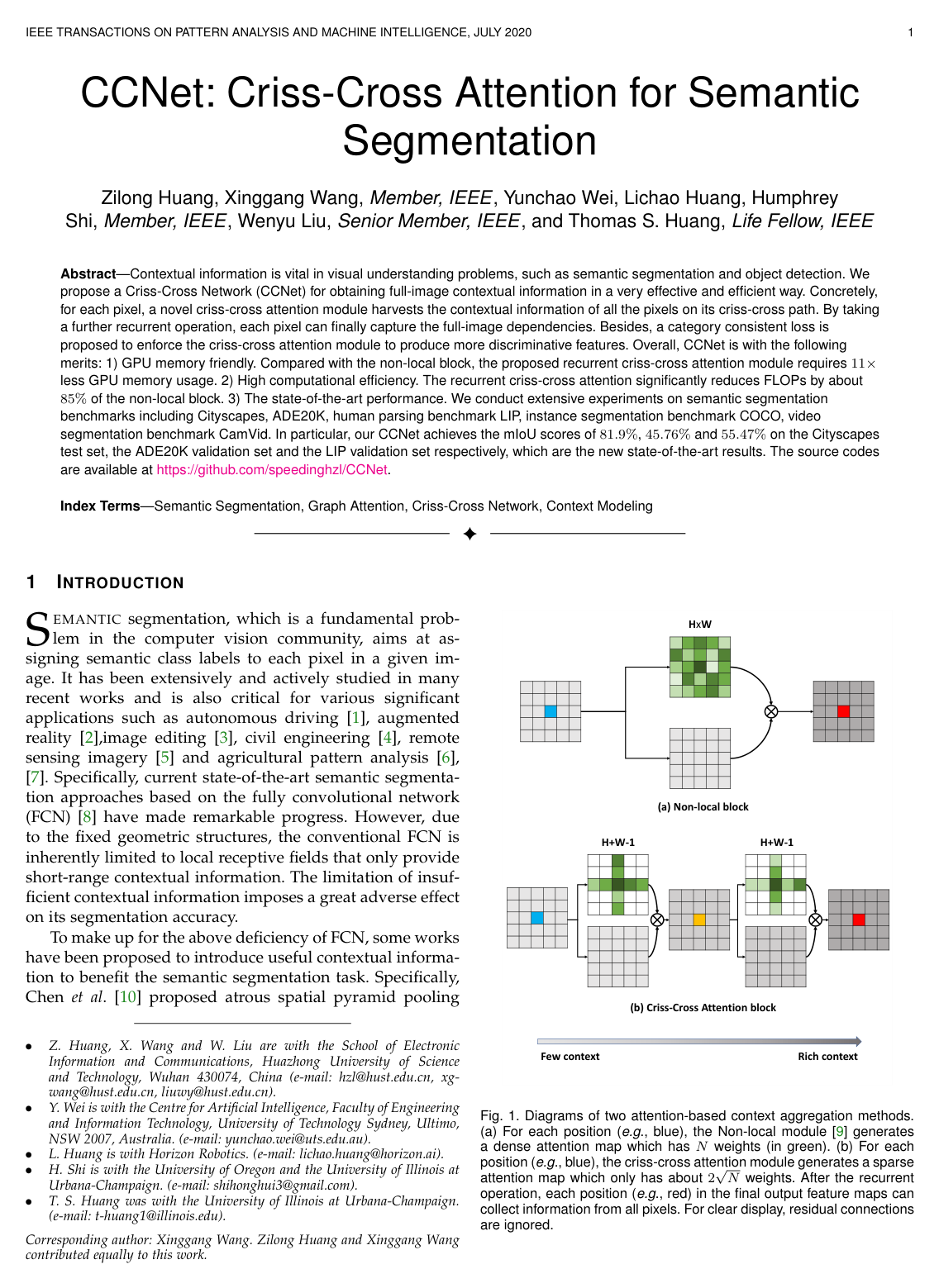

Cover for CCNet: Criss-Cross Attention for Semantic Segmentation

Abstract

Contextual information is vital in visual understanding problems, such as semantic segmentation and object detection. We propose a Criss-Cross Network (CCNet) for obtaining full-image contextual information in a very effective and efficient way. Concretely, for each pixel, a novel criss-cross attention module harvests the contextual information of all the pixels on its criss-cross path. By taking a further recurrent operation, each pixel can finally capture the full-image dependencies. Besides, a category consistent loss is proposed to enforce the criss-cross attention module to produce more discriminative features. Overall, CCNet is with the following merits: 1) GPU memory friendly. Compared with the non-local block, the proposed recurrent criss-cross attention module requires 11x less GPU memory usage. 2) High computational efficiency. The recurrent criss-cross attention significantly reduces FLOPs by about 85% of the non-local block. 3) The state-of-the-art performance. We conduct extensive experiments on semantic segmentation benchmarks including Cityscapes, ADE20K, human parsing benchmark LIP, instance segmentation benchmark COCO, video segmentation benchmark CamVid. In particular, our CCNet achieves the mIoU scores of 81.9%, 45.76% and 55.47% on the Cityscapes test set, the ADE20K validation set and the LIP validation set respectively, which are the new state-of-the-art results. The source codes are available at \url{this https URL}.

Topics

computational efficiency object detection parsing algorithm source codes test samples validation source nodes user context object segmentation semantic information

Keywords

recurrent criss-cross attention semantic segmentation full-image contextual information spatial attention instance segmentation dense prediction tasks scene understanding COCO dataset

2 RELATED WORK
2.1 Semantic segmentation
2.2 Contextual information aggregation
2.3 Graph neural networks
3 APPROACH
3.1 Network Architecture
3.2 Criss-Cross Attention
3.3 Recurrent Criss-Cross Attention (RCCA)
3.4 Learning Category Consistent Features
3.5 3D Criss-Cross Attention
4 EXPERIMENTS
4.1 Datasets and Evaluation Metrics
4.2 Implementation Details
4.3 Experiments on Cityscapes
4.3.1 Comparisons with state-of-the-arts
4.4 Experiments on ADE20K
4.5 Experiments on LIP
4.6 Experiments on COCO
4.7 Experiments on CamVid
5 CONCLUSION AND FUTURE WORK
ACKNOWLEDGEMENTS
REFERENCES

Knowls

Knowl 1 — Criss-Cross Attention Module for 2D Dense Context Aggregation
model/method
The Criss-Cross Attention (CCA) module captures contextual dependencies along the horizontal and vertical paths of each pixel at a reduced computational cost compared to dense self-attention mechanisms.

Given an input feature map $H \in \mathbb{R}^{C \times H \times W}$ , the module applies two parallel $1 \times 1$ convolutional layers to generate projected query and key representations $Q, K \in \mathbb{R}^{C' \times H \times W}$ , where $C' < C$ reduces channel dimensionality. For each spatial location $u = (u_x, u_y)$ , the feature vector is $Q_u \in \mathbb{R}^{C'}$ . A set of key vectors $\Omega_u \in \mathbb{R}^{(H+W-1) \times C'}$ is extracted from $K$ corresponding to all positions located in the same row or column as $u$ . The affinity correlation $d_{i,u}$ between $Q_u$ and the $i$ -th element $\Omega_{i,u} \in \Omega_u$ is given by:

$d_{i,u} = Q_u \Omega_{i,u}^T$

where $i \in \{1, \dots, H+W-1\}$ . Applying a softmax normalization along the channel dimension of the correlation tensor $D \in \mathbb{R}^{(H+W-1) \times (H \times W)}$ yields the sparse attention map $A \in \mathbb{R}^{(H+W-1) \times (H \times W)}$ .

A third $1 \times 1$ convolution transforms $H$ into an adapted feature representation $V \in \mathbb{R}^{C \times H \times W}$ . For each location $u$ , the set $\Phi_u \in \mathbb{R}^{(H+W-1) \times C}$ contains the feature vectors of $V$ lying on the same horizontal and vertical lines as $u$ . The aggregated feature $H'_u$ is computed as:

$H'_u = \sum_{i=0}^{H+W-1} A_{i,u} \Phi_{i,u} + H_u$

where $H'_u \in \mathbb{R}^C$ is the updated feature vector at location $u$ , and $A_{i,u}$ is the attention weight corresponding to index $i$ and position $u$ . This operation reduces the spatial complexity from $O(N^2)$ (where $N = H \times W$ ) to $O(N\sqrt{N})$ per operation.
Knowl 2 — Recurrent Criss-Cross Attention for Full-Image Context Modeling
model/method
While a single pass through a Criss-Cross Attention (CCA) module collects context exclusively along a pixel's horizontal and vertical axes, a recurrent operation (RCCA) enables full-image, dense context propagation across all spatial locations without altering the parameter count.

The RCCA module unrolls the CCA operation into $R$ successive loops where the network parameters of the CCA module are shared across all loops. In loop $R=1$ , the module takes the input feature map $H$ and produces intermediate features $H'$ containing direct row and column dependencies. In loop $R=2$ , the module takes $H'$ as input and generates $H''$ .

For any target coordinate $u = (u_x, u_y)$ and an arbitrary coordinate $\theta = (\theta_x, \theta_y)$ not initially in the criss-cross path of $u$ (i.e., $\theta_x \neq u_x$ and $\theta_y \neq u_y$ ):
1. In the first loop, the context from $\theta$ propagates directly to the intermediate positions $(u_x, \theta_y)$ and $(\theta_x, u_y)$ , because both lie on the horizontal and vertical axes of $\theta$ .
2. In the second loop, because $(u_x, \theta_y)$ and $(\theta_x, u_y)$ lie on the criss-cross path of $u$ , their updated representations (which now encode information from $\theta$ ) propagate into $u$ .
Consequently, setting $R=2$ allows every spatial location to harvest full-image dependencies across all $H \times W$ positions while retaining an overall time and memory complexity of $O(N\sqrt{N})$ instead of $O(N^2)$ .
Knowl 3 — Category Consistent Loss with Robust Piece-Wise Distance
equation
To prevent feature over-smoothing in graph-like recurrent attention mechanisms and to encourage high intra-class compactness and inter-class separability, a category consistent loss (CCL) is applied to the dimension-reduced output features of the RCCA module:

$\ell = \ell_{\text{seg}} + \alpha \ell_{\text{var}} + \beta \ell_{\text{dis}} + \gamma \ell_{\text{reg}}$

where $\ell_{\text{seg}}$ is the standard cross-entropy segmentation loss, and $\alpha, \beta, \gamma$ are weighting hyper-parameters set to $\alpha = 1.0$ , $\beta = 1.0$ , and $\gamma = 0.001$ .

The three constituent loss components are defined over the set of active classes $C$ present in the mini-batch:

$\ell_{\text{var}} = \frac{1}{|C|} \sum_{c \in C} \frac{1}{N_c} \sum_{i=1}^{N_c} \phi_{\text{var}}(h_i, \mu_c)$

$\ell_{\text{dis}} = \frac{1}{|C|(|C|-1)} \sum_{c_a \in C} \sum_{\substack{c_b \in C \\ c_a \neq c_b}} \phi_{\text{dis}}(\mu_{c_a}, \mu_{c_b})$

$\ell_{\text{reg}} = \frac{1}{|C|} \sum_{c \in C} \|\mu_c\|$

where $N_c$ is the number of pixels belonging to category $c$ , $h_i$ is the feature vector at spatial position $i$ , and $\mu_c = \frac{1}{N_c} \sum_{i=1}^{N_c} h_i$ is the cluster center for category $c$ .

The distance functions $\phi_{\text{var}}$ and $\phi_{\text{dis}}$ employ margins $\delta_v = 0.5$ and $\delta_d = 1.5$ . $\phi_{\text{var}}$ uses a piece-wise formulation (zero within $\delta_v$ , quadratic in $(\delta_v, \delta_d]$ , and linear beyond $\delta_d$ ) to stabilize optimization against large gradient spikes:

$\phi_{\text{var}}(h_i, \mu_c) = \begin{cases} \|\mu_c - h_i\| - \delta_d + (\delta_d - \delta_v)^2, & \text{if } \|\mu_c - h_i\| > \delta_d \\ (\|\mu_c - h_i\| - \delta_v)^2, & \text{if } \delta_v < \|\mu_c - h_i\| \le \delta_d \\ 0, & \text{if } \|\mu_c - h_i\| \le \delta_v \end{cases}$

$\phi_{\text{dis}}(\mu_{c_a}, \mu_{c_b}) = \begin{cases} (2\delta_d - \|\mu_{c_a} - \mu_{c_b}\|)^2, & \text{if } \|\mu_{c_a} - \mu_{c_b}\| \le 2\delta_d \\ 0, & \text{if } \|\mu_{c_a} - \mu_{c_b}\| > 2\delta_d \end{cases}$
Knowl 4 — 3D Criss-Cross Attention for Spatio-Temporal Video Context
model/method
The 3D Criss-Cross Attention module extends 2D spatial context aggregation to spatio-temporal video volumes $H \in \mathbb{R}^{C \times T \times H \times W}$ , where $T$ denotes the temporal/frame dimension.

Two $1 \times 1 \times 1$ convolutions map $H$ to feature representations $Q, K \in \mathbb{R}^{C' \times T \times H \times W}$ . For each voxel position $u = (t, x, y)$ , the vector $Q_u \in \mathbb{R}^{C'}$ interacts with a set $\Omega_u \in \mathbb{R}^{(T+H+W-2) \times C'}$ extracted from $K$ . $\Omega_u$ contains all vectors sharing at least two coordinates with $u$ (i.e., varying along only the temporal dimension, horizontal spatial dimension, or vertical spatial dimension). The affinity correlation is:

$d_{i,u} = Q_u \Omega_{i,u}^T$

where $i \in \{1, \dots, T+H+W-2\}$ . Applying a softmax along the first dimension yields the attention map $A \in \mathbb{R}^{(T+H+W-2) \times T \times H \times W}$ .

A third $1 \times 1 \times 1$ convolution produces $V \in \mathbb{R}^{C \times T \times H \times W}$ , from which a local set $\Phi_u \in \mathbb{R}^{(T+H+W-2) \times C}$ is formed along the 3D criss-cross structure centered at $u$ . The aggregated feature vector $H'_u$ is computed as:

$H'_u = \sum_{i=0}^{T+H+W-2} A_{i,u} \Phi_{i,u} + H_u$

Repeating this module for $R = 3$ iterations allows every voxel to aggregate dense contextual information across the entire spatial and temporal dimensions of the input sequence.
Knowl 5 — CCNet Architecture for Semantic Segmentation
model/method
CCNet incorporates the Recurrent Criss-Cross Attention (RCCA) module into a deep fully convolutional architecture for dense semantic prediction:
1. Feature Extraction: An input image is passed through a convolutional backbone (e.g., ResNet-101) modified by removing the last two downsampling operations and using dilated convolutions with dilation rates of 2 and 4 in stages 4 and 5, producing an output feature map $X \in \mathbb{R}^{C \times H \times W}$ with an output stride of 8 (spatial dimensions $H = H_{\text{in}}/8, W = W_{\text{in}}/8$ ).
2. Context Embedding: A $1 \times 1$ convolution reduces the channel dimension of $X$ to form feature map $H$ . $H$ is processed through the RCCA module for $R=2$ loops to produce the dense full-image contextual feature map $H''$ .
3. Feature Fusion and Prediction: The contextual feature $H''$ is concatenated along channels with the local feature map $X$ . One or more convolutional layers with batch normalization and non-linear activation fuse the concatenated features. A final segmentation layer predicts class probability maps.

Knowl 6 — Efficiency and Resource Comparison: RCCA vs. Non-Local Self-Attention

data/table

On the Cityscapes validation set with an input resolution of $1 \times 3 \times 769 \times 769$ and a ResNet-50 backbone, Recurrent Criss-Cross Attention ( $R=2$ ) achieves higher segmentation accuracy than standard Non-Local (NL) attention while reducing computational cost and memory footprint by substantial margins.

Compared to the Non-Local block (+NL), RCCA ( $R=2$ ) uses $11\times$ less GPU memory overhead ( $127\text{ MB}$ vs. $1411\text{ MB}$ ) and reduces FLOPs by approximately $84.7\%$ ( $16.5\text{ GFLOPs}$ vs. $108\text{ GFLOPs}$ ), while improving mIoU by $1.2\%$ over single-pass Non-Local attention ( $78.5\%$ vs. $77.3\%$ ).

Knowl 7 — Ablation of Recurrence Loops and Loss Functions on Cityscapes

data/table

Ablation experiments on the Cityscapes validation set evaluate the effect of varying RCCA loop counts ( $R$ ) and context modeling configurations on segmentation performance (mIoU).

Setting / Method	Backbone	Memory / Details	mIoU (%)
Baseline	ResNet-101	0 MB $\Delta$ , 0 GFLOPs $\Delta$	75.1
$R = 1$	ResNet-101	53 MB $\Delta$ , 8.3 GFLOPs $\Delta$	78.0
$R = 2$	ResNet-101	127 MB $\Delta$ , 16.5 GFLOPs $\Delta$	79.8
$R = 3$	ResNet-101	208 MB $\Delta$ , 24.7 GFLOPs $\Delta$	80.2
ResNet50 + GCN	ResNet-50	Global conv filters	76.2
ResNet50 + PSP	ResNet-50	Pyramid spatial pooling	76.4
ResNet50 + ASPP	ResNet-50	Multi-dilation conv	77.1
ResNet50 + NL	ResNet-50	Full self-attention	77.3
ResNet50 + HV	ResNet-50	Sequential horiz. + vert.	77.3
ResNet50 + HVVH	ResNet-50	Parallel horiz./vert. sum	77.8
ResNet50 + RCCA ( $R=2$ )	ResNet-50	Criss-cross recurrence	78.5
ResNet50 + RCCA + CCL	ResNet-50	With Category Consistent Loss	79.3
ResNet101 + RCCA ( $R=2$ ) + CCL	ResNet-101	With Category Consistent Loss	80.5

Adding a single criss-cross loop ( $R=1$ ) improves baseline ResNet-101 performance by $2.9\%$ mIoU. Increasing to $R=2$ provides an additional $1.8\%$ mIoU gain, with diminishing returns at $R=3$ ( $+0.4\%$ mIoU). CCL provides a consistent $+0.7\%$ to $+0.8\%$ mIoU boost across both ResNet-50 and ResNet-101 backbones. Training stability tests (10 runs on ResNet-50) show that the piece-wise distance function achieves a $9/10$ success rate (mean mIoU $79.3\%$ ) versus $6/10$ (mean mIoU $79.2\%$ ) for a single quadratic distance function.

Knowl 8 — Semantic Segmentation Benchmarks on Cityscapes Test Set

data/table

When trained on both the train-fine and val-fine sets of Cityscapes using a ResNet-101 backbone, CCNet achieves state-of-the-art performance on the official Cityscapes evaluation server.

Method	Backbone	mIoU (%)
DeepLab-v2	ResNet-101	70.4
RefineNet	ResNet-101	73.6
GCN	ResNet-101	76.9
DUC	ResNet-101	77.6
SAC	ResNet-101	78.1
ResNet-38	WiderResNet-38	78.4
PSPNet	ResNet-101	78.4
BiSeNet	ResNet-101	78.9
AAF	ResNet-101	79.1
DFN	ResNet-101	79.3
PSANet	ResNet-101	80.1
DenseASPP	DenseNet-161	80.6
CCNet	ResNet-101	81.9

CCNet outperforms all existing methods on the Cityscapes test benchmark, including PSANet ( $80.1\%$ ) and DenseASPP with DenseNet-161 ( $80.6\%$ ), achieving $81.9\%$ mIoU under single-scale evaluation.

Knowl 9 — Evaluation on Scene Parsing (ADE20K) and Human Parsing (LIP)

data/table

CCNet achieves state-of-the-art accuracy on the ADE20K validation set (150 categories) and the Look Into Person (LIP) human parsing validation set (20 categories).

Dataset	Method	Backbone	Mean Acc (%)	mIoU (%)
ADE20K (val)	RefineNet	ResNet-152	–	40.70
ADE20K (val)	PSPNet	ResNet-101	–	43.29
ADE20K (val)	PSANet	ResNet-101	–	43.77
ADE20K (val)	EncNet	ResNet-101	–	44.65
ADE20K (val)	CCNet	ResNet-101	–	45.76
LIP (val)	DeepLab (ResNet-101)	ResNet-101	55.63	44.80
LIP (val)	SAN	VGG-16	55.09	44.81
LIP (val)	JPPNet	ResNet-101	62.32	51.37
LIP (val)	CE2P	ResNet-101	63.20	53.10
LIP (val)	CCNet	ResNet-101	63.91	55.47

On ADE20K validation, CCNet with CCL obtains $45.76\%$ mIoU, outperforming EncNet ( $44.65\%$ ) by $1.11\%$ . On LIP validation, CCNet embedded in the CE2P framework achieves $55.47\%$ mIoU and $88.01\%$ pixel accuracy, outperforming the CE2P baseline ( $53.10\%$ ) by $2.37\%$ mIoU.

Knowl 10 — Generalization to Instance and Video Semantic Segmentation (COCO and CamVid)

data/table

Incorporating RCCA into Mask R-CNN on the COCO dataset and utilizing 3D-RCCA on the CamVid video dataset demonstrates generalization beyond 2D static semantic segmentation.

Task / Dataset	Model / Backbone	Metric 1	Metric 2
COCO (val) Instance Seg.	ResNet-50 Baseline	38.2 $\text{AP}^{\text{box}}$	34.8 $\text{AP}^{\text{mask}}$
COCO (val) Instance Seg.	ResNet-50 + NL	39.0 $\text{AP}^{\text{box}}$	35.5 $\text{AP}^{\text{mask}}$
COCO (val) Instance Seg.	ResNet-50 + RCCA	39.3 $\text{AP}^{\text{box}}$	36.1 $\text{AP}^{\text{mask}}$
COCO (val) Instance Seg.	ResNet-101 Baseline	40.1 $\text{AP}^{\text{box}}$	36.2 $\text{AP}^{\text{mask}}$
COCO (val) Instance Seg.	ResNet-101 + NL	40.8 $\text{AP}^{\text{box}}$	37.1 $\text{AP}^{\text{mask}}$
COCO (val) Instance Seg.	ResNet-101 + RCCA	41.0 $\text{AP}^{\text{box}}$	37.3 $\text{AP}^{\text{mask}}$
CamVid (test) Video Seg.	PSPNet (ResNet-50)	–	69.1 mIoU (%)
CamVid (test) Video Seg.	VideoGCRF (ResNet-101)	–	75.2 mIoU (%)
CamVid (test) Video Seg.	CCNet3D ( $T=1$ , ResNet-101)	–	77.9 mIoU (%)
CamVid (test) Video Seg.	CCNet3D ( $T=5$ , ResNet-101)	–	79.1 mIoU (%)

On COCO instance segmentation, adding RCCA before the final residual block of res4 outperforms both standard Mask R-CNN and Non-Local block (+NL) augmentations. On CamVid video segmentation, CCNet3D with $T=5$ frames achieves $79.1\%$ mIoU, improving by $1.2\%$ over the single-frame CCNet3D ( $T=1$ ) and outperforming VideoGCRF ( $75.2\%$ ).

Coverage note — None was omitted; all key architectural components (2D CCA, RCCA, CCL, 3D CCA, CCNet full pipeline) and all experimental benchmarks across Cityscapes, ADE20K, LIP, COCO, and CamVid have been fully captured.
