Toward Machine Emotional Intelligence: Analysis of Affective Physiological State

Rosalind W. PicardElias VyzasJennifer Healey

article2001TPAMI2,462 citations

Demonstrates that machines can accurately classify eight human emotional states from physiological signals collected over multiple weeks by combining Sequential Floating Forward Search with Fisher Projection to resolve day-to-day signal variations.

Listen

Effective human-computer interaction increasingly requires adaptive systems that can recognize user feedback, including emotional states. While outward expressions like speech and facial cues have been widely studied, internal physiological signals offer a less controllable and potentially more direct channel for understanding user affect. However, automated emotion recognition from physiology has historically struggled with inconsistent data, subtle bodily changes, and complex day-to-day variations in sensor and biological baselines.

The article evaluates whether pattern recognition algorithms can accurately classify distinct emotional states from physiological signals collected over multiple weeks, and it demonstrates methods to overcome significant daily signal variations.

To test this, the authors recorded four physiological signals—facial muscle tension, blood volume pressure, skin conductance, and respiration—from a single subject across 20 daily sessions over several weeks. The subject intentionally elicited and felt eight affective states, including neutral, anger, grief, joy, and love. The researchers extracted 40 statistical and physically motivated features and tested multiple classification approaches, notably evaluating a hybrid method that combines Sequential Floating Forward Search for feature selection with Fisher Projection for dimensionality reduction.

The analysis produced several critical findings. First, the hybrid method using all 40 features achieved an 81.25% classification accuracy across all eight emotional states, which is significantly better than random chance and represents the highest reported rate for physiological affect recognition. Second, day-to-day signal variation proved to be a major obstacle: physiological features from different emotions on the same day clustered more tightly than the same emotion across different days. Third, physically motivated features that account for baseline drift and respiration dynamics effectively mitigated this daily variance. Finally, the classifier discriminated valence (positive versus negative emotion) at 87% accuracy and arousal (calm versus excited) at 84% accuracy, disproving the long-held belief that physiology only reflects arousal levels.

These results indicate that internal physiology contains reliable, distinctive patterns for specific emotional states, making it a viable input for intelligent systems. For technology design, this capability enables wearable and adaptive systems to assess user stress, frustration, or engagement without requiring intrusive cameras or active user interruptions, reducing risks of system annoyance and improving user experience.

The article recommends adopting hybrid feature-selection and transformation techniques alongside normalized, physically informed features when developing affective computing applications. Because the best-performing normalization features require full-session data, future implementations should explore trade-offs between real-time processing needs and offline accuracy. Next steps should also include testing these methodologies in naturalistic, event-elicited settings (such as driving or task frustration) and integrating physiological sensors with audio and visual inputs.

Readers should note key limitations: the findings rely on a single subject intentionally experiencing emotions under controlled laboratory conditions, and performance estimates used leave-one-out cross-validation on pre-segmented data. Consequently, while confidence is high that the analytical methodology effectively separates physiological patterns, further validation across broader populations and spontaneous real-world scenarios is necessary before widespread deployment.

IBM Massachusetts Institute of Technology affective state classification intelligence analysts Emotional Intelligence Affective Physiological State Physiological Signal

Picard et al (2001).pdf

Paper: Statistical Pattern Recognition: A Review, Anil K. Jain et al. (2000). Provides the foundational statistical pattern recognition principles, dimensionality reduction concepts, and feature selection methodologies underlying the paper's analytical framework.
Paper: Eigenfaces vs. Fisherfaces: Recognition Using Class Specific Linear Projection, Peter N. Belhumeur et al. (1996). Establishes the mathematical foundation for Fisher linear discriminant projections in pattern recognition that the source directly builds upon to classify emotional states.
Paper: On Combining Classifiers, Josef Kittler et al. (1998). Presents theoretical frameworks for combining multiple classifiers and sensor representations, essential for understanding multi-sensor physiological affect recognition.
Paper: A New Learning Algorithm for Blind Signal Separation, S. Amari et al. (1995). Introduces blind source separation techniques essential for isolating and filtering overlapping biological signal sources and noise artifacts in physiological monitoring.

Paper: Learning with Drift Detection, João Gama et al. (2004). Develops formal statistical frameworks to detect and adapt to concept drift in time-series data, directly addressing the day-to-day physiological baseline shifts identified in the source.
Paper: AffectNet: A Database for Facial Expression, Valence, and Arousal Computing in the Wild, Ali Mollahosseini et al. (2017). Extends the source's dimensional valence and arousal modeling to large-scale in-the-wild facial affect recognition using deep neural networks.
Paper: EEGNet: a compact convolutional neural network for EEG-based brain–computer interfaces, Vernon J. Lawhern et al. (2016). Modernizes bio-signal classification using compact convolutional neural networks capable of learning features directly from physiological time-series without manual feature extraction.
Paper: Multimodal Transformer for Unaligned Multimodal Language Sequences, Yao-Hung Hubert Tsai et al. (2019). Advances affective computing by applying crossmodal transformer architectures to integrate unaligned multimodal streams including gestures, audio, and language.
Paper: Beyond Mind-Reading: Multi-Voxel Pattern Analysis of fMRI Data, Kenneth A. Norman et al. (2006). Applies multivariate pattern classification techniques to decode internal mental and emotional representations from complex human neuroimaging signals.

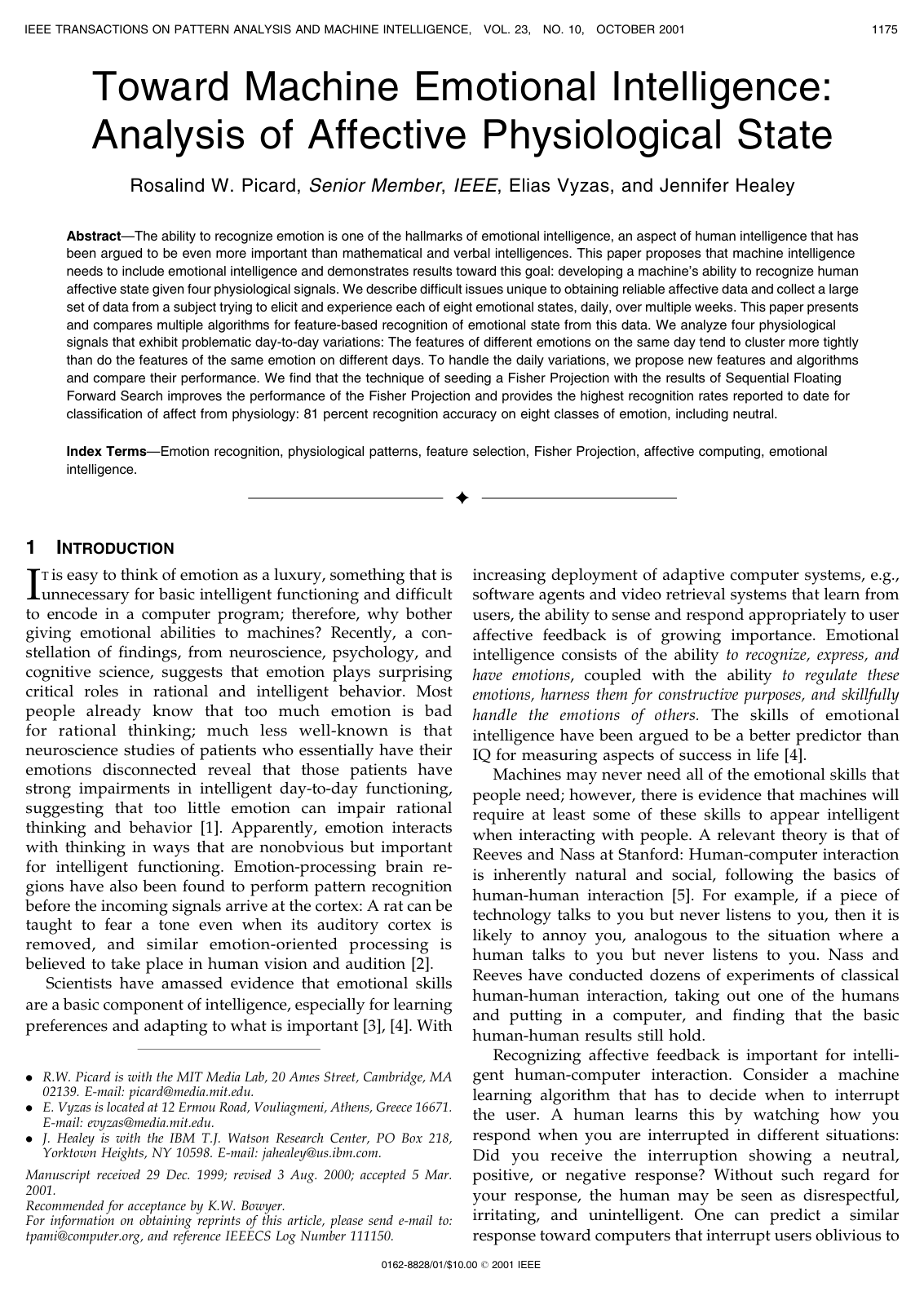

Cover for Toward Machine Emotional Intelligence: Analysis of Affective Physiological State

Abstract

The ability to recognize emotion is one of the hallmarks of emotional intelligence, an aspect of human intelligence that has been argued to be even more important than mathematical and verbal intelligences. This paper proposes that machine intelligence needs to include emotional intelligence and demonstrates results toward this goal: developing a machine’s ability to recognize human affective state given four physiological signals. We describe difficult issues unique to obtaining reliable affective data and collect a large set of data from a subject trying to elicit and experience each of eight emotional states, daily, over multiple weeks. This paper presents and compares multiple algorithms for feature-based recognition of emotional state from this data. We analyze four physiological signals that exhibit problematic day-to-day variations: The features of different emotions on the same day tend to cluster more tightly than do the features of the same emotion on different days. To handle the daily variations, we propose new features and algorithms and compare their performance. We find that the technique of seeding a Fisher Projection with the results of Sequential Floating Forward Search improves the performance of the Fisher Projection and provides the highest recognition rates reported to date for classification of affect from physiology: 81 percent recognition accuracy on eight classes of emotion, including neutral.

Topics

affective state classification intelligence analysts emotion expression human emotion human motions basic emotions

Keywords

Emotional Intelligence Affective Physiological State Physiological Signal Feature Selection Fisher Projection Sequential Floating Forward Search Day-to-Day Variation Emotion Recognition Wearable Sensor Classification Accuracy

1 INTRODUCTION
1.1 Human Emotion Recognition
1.2 Importance of Physiological Emotion Recognition
1.3 Related Research
2 GATHERING GOOD AFFECTIVE DATA
2.1 Five Factors in Eliciting Emotion
2.2 Single-Subject Multiple-Day Data Collection
2.3 Experimental Method and Construction of Data Sets
3 FEATURE EXTRACTION, SELECTION, AND TRANSFORMATION
3.1 Proposed Feature Sets
3.2 Selecting and Transforming Features
4 CLASSIFICATION
4.1 Initial Results—Data Set I
4.2 The Problem of Day-Dependence
4.3 Day Matrix for Handling Day-Dependence
4.4 Baseline Matrix for Handling Day-Dependence
4.5 Better Features for Handling Day-Dependence
4.6 Finding Robust Features
5 CONCLUSIONS
ACKNOWLEDGMENTS
REFERENCES

Knowls

Knowl 1 — Hybrid SFFS with Fisher Projection (SFFS-FP) Classification Algorithm
algorithm
The hybrid Sequential Floating Forward Search with Fisher Projection (SFFS-FP) algorithm combines non-linear feature subset selection with linear dimensionality reduction to classify affective physiological states under leave-one-out cross-validation (LOOCV).
Input: Dataset $D = \{(\mathbf{x}_i, y_i)\}_{i=1}^K$ of $K$ feature vectors $\mathbf{x}_i \in \mathbb{R}^n$ with class labels $y_i \in \{1, \ldots, c\}$
Output: Leave-one-out classification accuracy and predicted labels $\{\hat{y}_i\}_{i=1}^K$
for $i = 1$ to $K$ :
    Set testing instance $(\mathbf{x}_{\text{test}}, y_{\text{test}}) = (\mathbf{x}_i, y_i)$
    Set training set $D_{\text{train}} = D \setminus \{(\mathbf{x}_i, y_i)\}$
    Run SFFS on $D_{\text{train}}$ using a $k$ -nearest-neighbor objective to generate candidate feature subsets $S_m \subseteq \{1, \ldots, n\}$ of size $m$ for $2 \le m \le n$
    for each subset $S_m$ and each projection dimension $d \in \{1, \ldots, \min(m, c) - 1\}$ :
        Compute the $m \times d$ Fisher Projection matrix $\mathbf{W}$ using training data in $D_{\text{train}}$ restricted to features $S_m$
        Project training samples to $\mathbf{z}_j = \mathbf{W}^T \mathbf{x}_j^{(S_m)} \in \mathbb{R}^d$ for all $\mathbf{x}_j \in D_{\text{train}}$
        Fit class-conditional Gaussian distributions $\mathcal{N}(\boldsymbol{\mu}_k, \boldsymbol{\Sigma}_k)$ for each class $k \in \{1, \ldots, c\}$ on projected training data
        Evaluate inner cross-validation classification accuracy on $D_{\text{train}}$ using Maximum a Posteriori (MAP) classification
    Identify best subset $S^*$ and projection dimension $d^*$ that maximized training performance
    Recompute optimal projection matrix $\mathbf{W}^*$ and class Gaussian distributions $\mathcal{N}(\boldsymbol{\mu}_k^*, \boldsymbol{\Sigma}_k^*)$ on $D_{\text{train}}$ using $S^*$ and $d^*$
    Project test feature vector $\mathbf{z}_{\text{test}} = (\mathbf{W}^*)^T \mathbf{x}_{\text{test}}^{(S^*)} \in \mathbb{R}^{d^*}$
    Compute posterior probability $P(y = k \mid \mathbf{z}_{\text{test}})$ for each class $k \in \{1, \ldots, c\}$
    Assign $\hat{y}_i = \arg\max_{k \in \{1, \ldots, c\}} P(y = k \mid \mathbf{z}_{\text{test}})$
Compute overall accuracy as $\frac{1}{K} \sum_{i=1}^K \mathbb{I}(\hat{y}_i = y_i)$
The method leverages SFFS as a non-linear prefilter to prune irrelevant or noisy dimensions before computing the Fisher linear transformation. This prevents Fisher Projection from fitting spurious noise dimensions when the feature count is large relative to the training sample size.
Knowl 2 — Eight-Class Affective State Recognition Accuracy and Valence/Arousal Discrimination
empirical result
Applying the hybrid SFFS-FP classification algorithm to 40 physiological features extracted from 20 days of single-subject recording (Data Set II, 160 total samples) achieved an 8-class classification accuracy of $81.25\%$ ( $130/160$ correct classifications, where random guess is $12.5\%$ ).

The eight affective classes and their respective confusion patterns were:
- Neutral (No Emotion): $17/20$ correct ( $3$ misclassified as Platonic Love)
- Anger: $17/20$ correct ( $2$ as Platonic Love, $1$ as Romantic Love)
- Hate: $14/20$ correct ( $1$ as Grief, $3$ as Joy, $2$ as Reverence)
- Grief: $15/20$ correct ( $1$ as Hate, $4$ as Joy)
- Platonic Love: $17/20$ correct ( $2$ as Romantic Love, $1$ as Joy)
- Romantic Love: $14/20$ correct ( $1$ as Neutral, $1$ as Anger, $3$ as Platonic Love, $1$ as Joy)
- Joy: $17/20$ correct ( $1$ as Hate, $2$ as Grief)
- Reverence: $19/20$ correct ( $1$ as Grief)
When these predictions are grouped along fundamental emotional dimensions:
- Valence discrimination (Very Negative: Anger; Negative: Hate, Grief; Neutral: Neutral, Reverence; Positive: Platonic Love, Romantic Love, Joy) achieved $86.875\%$ accuracy ( $139/160$ correct, chance is $25.0\%$ ).
- Arousal discrimination (Very High: Anger, Romantic Love; Medium High: Joy; High: Grief; Low: Neutral, Hate, Platonic Love; Very Low: Reverence) achieved $84.375\%$ accuracy ( $135/160$ correct, chance is $20.0\%$ ).
The performance difference between valence and arousal classification was not statistically significant, demonstrating that physiological signals contain measurable patterns differentiating both emotional valence and arousal dimensions.
Knowl 3 — Day-Dependence Phenomenon in Physiological Affective Signals
empirical result
Physiological signals recorded across multiple daily sessions exhibit strong day-to-day clustering: features of different emotions recorded on the same day tend to cluster more tightly together in feature space than features of the same emotion recorded across different days.

To quantify this day-dependence effect, Fisher Projection with Gaussian MAP classification under leave-one-out cross-validation was evaluated on Data Set I using 24 raw statistical features ( $\{\mu_X, \sigma_X, \delta_X, \tilde{\delta}_X, \gamma_X, \tilde{\gamma}_X\}$ across electromyogram, blood volume pressure, skin conductance, and respiration):
- Classifying which of the $c = 20$ recording days a sample belonged to yielded an accuracy of $83.0\%$ (where random guessing accuracy is $5.0\%$ ).
- Classifying which of the $c = 8$ emotions was being experienced on the identical dataset and feature space yielded only $40.0\%$ accuracy (where random guessing accuracy is $12.5\%$ ).
This day-dependence arises from three primary sources:
1. Sensor-skin physical variations, including electrode placement shifts, skin hydration differences from hand washing, and contact gel impedance fluctuations.
2. Non-emotional physiological drift driven by systemic factors such as sleep, caffeine intake, diet, and hormone levels.
3. Baseline affective state interactions, wherein the participant's daily background mood alters the physiological baseline from which transient emotional states are elicited.

Knowl 4 — Comparative Emotion Recognition Performance across Feature Spaces and Day-Compensation Methods

data/table

The classification accuracy on Data Set II ( $160$ trials across $20$ days, $8$ classes) demonstrates that expanding feature representations and prefiltering features with SFFS prior to Fisher Projection consistently improves classification accuracy across different initial feature sets.

Initial Feature Space Configuration	Without Day Matrix (%)			With Day Matrix (%)
Initial Feature Space Configuration	SFFS	Fisher	SFFS-FP	Fisher	SFFS-FP
24 statistical features: $X \in \{\mathcal{E}, \mathcal{B}, \mathcal{S}, \mathcal{R}\}$	49.4	51.3	56.9	54.4	63.8
30 statistical features: $X \in \{\mathcal{E}, \mathcal{B}, \mathcal{S}, \mathcal{R}, \mathcal{H}\}$	52.5	56.9	60.0	58.8	63.8
11 physiology features: $f_1, \ldots, f_{10}, \mu_{\mathcal{E}}$	60.6	70.0	70.6	61.3	63.1
40 features: Full combined feature set	65.0	77.5	81.25	77.5	78.8

The table demonstrates three key outcomes:

Cascading SFFS with Fisher Projection (SFFS-FP) consistently outperforms standard Fisher Projection alone across all tested configurations without the day matrix ( $56.9\%$ vs $51.3\%$ , $60.0\%$ vs $56.9\%$ , $70.6\%$ vs $70.0\%$ , and $81.25\%$ vs $77.5\%$ ).
Augmenting feature sets with the 19-dimensional Day Matrix improves classification accuracy when using raw statistical features ( $49.4\% \to 63.8\%$ for 24 features with SFFS-FP), but degrades performance when the physiology-dependent features $f_1 - f_{10}$ are present ( $70.6\% \to 63.1\%$ for 11 features; $81.25\% \to 78.8\%$ for 40 features).
Utilizing all 40 features with SFFS-FP without the day matrix yields the highest recognition rate of $81.25\%$ .

Knowl 5 — Statistical and Physiology-Dependent Feature Set Formulation
equation
Let $X_n$ denote the $n$ -th sample of a physiological signal $X \in \{\mathcal{E}, \mathcal{B}, \mathcal{S}, \mathcal{R}, \mathcal{H}\}$ for an emotion segment of $N$ samples, where $\mathcal{E}$ is electromyogram, $\mathcal{B}$ is blood volume pressure, $\mathcal{S}$ is skin conductance, $\mathcal{R}$ is respiration, and $\mathcal{H}$ is heart rate derived from interbeat intervals of $\mathcal{B}$ . The normalized sample is $\tilde{X}_n = \frac{X_n - \mu_X}{\sigma_X}$ .

Six statistical features are defined for each signal $X$ : $\mu_X = \frac{1}{N} \sum_{n=1}^N X_n$ $\sigma_X = \left( \frac{1}{N-1} \sum_{n=1}^N (X_n - \mu_X)^2 \right)^{1/2}$ $\delta_X = \frac{1}{N-1} \sum_{n=1}^{N-1} |X_{n+1} - X_n|$ $\tilde{\delta}_X = \frac{1}{N-1} \sum_{n=1}^{N-1} |\tilde{X}_{n+1} - \tilde{X}_n| = \frac{\delta_X}{\sigma_X}$ $\gamma_X = \frac{1}{N-2} \sum_{n=1}^{N-2} |X_{n+2} - X_n|$ $\tilde{\gamma}_X = \frac{1}{N-2} \sum_{n=1}^{N-2} |\tilde{X}_{n+2} - \tilde{X}_n| = \frac{\gamma_X}{\sigma_X}$

Ten physiology-dependent features ( $f_1 - f_{10}$ ) compensate for day-to-day variations and signal characteristics, using a 500-point (25 s) Hanning smoothing filter $h$ and daily sample count $N_d$ :
- Smoothed heart rate $b = \mathcal{H} * h$ : $f_1 = \frac{1}{N} \sum_{n=1}^N b_n, \quad f_2 = \frac{1}{N-1} (b_N - b_1)$
- Smoothed skin conductance $s = \mathcal{S} * h$ with day-wide extrema $\min_{\text{day}}(s)$ and $\max_{\text{day}}(s)$ : $f_3 = \frac{\bar{s} - \min_{\text{day}}(s)}{\max_{\text{day}}(s) - \min_{\text{day}}(s)}, \quad f_4 = \frac{1}{N-1} (s_N - s_1)$ where $\bar{s} = \frac{1}{N} \sum_{n=1}^N s_n$ .
- Zero-centered respiration $r = \mathcal{R} - \mu_{\mathcal{R},\text{day}}$ where $\mu_{\mathcal{R},\text{day}} = \frac{1}{N_d} \sum_{n=1}^{N_d} \mathcal{R}_n$ : $f_5 = \frac{1}{N} \sum_{n=1}^N r_n, \quad f_6 = \frac{1}{N-1} \sum_{n=1}^N (r_n - \mu_{\mathcal{R},\text{day}})^2$
- Respiration power spectral density bands $f_7, f_8, f_9, f_{10}$ : Average spectral energy in the four consecutive $0.1\text{ Hz}$ frequency bands spanning $0.0\text{ to } 0.4\text{ Hz}$ computed via Welch's averaged periodogram.
Combining the 30 statistical features from $\{\mathcal{E}, \mathcal{B}, \mathcal{S}, \mathcal{R}, \mathcal{H}\}$ and the 10 physiological features plus masseter muscle mean $\mu_{\mathcal{E}}$ yields a total space of 40 candidate features.
Knowl 6 — Spatial Embedding and Baseline Normalization for Day-to-Day Variation Compensation
model/method
To counter non-affective inter-day physiological drift, two structural data representation methods modify the input feature matrices:
1. Day Matrix (Orthogonal Spatial Embedding): For data gathered over $D$ distinct days, each feature vector is appended with a $(D-1)$ -dimensional orthogonal day-identifier vector. For $D = 20$ days, a 19-dimensional vector is generated such that all 20 day coordinates are mutually equidistant in $\mathbb{R}^{19}$ . This coordinate vector is constant across all emotions recorded on the same day and distinct across days. By embedding the data in these orthogonal dimensions, the linear Fisher Projection can align and separate daily baseline clusters along hyperplanes before projecting the class-separating variance down to lower dimensions.
2. Baseline Matrix (Neutral State Subtraction): For each recording day, the feature vector extracted during the Neutral (No Emotion) condition is treated as the reference baseline and subtracted from the feature vectors of the remaining seven emotion conditions recorded on that same day: $\mathbf{x}_{\text{emotion},\text{day}}^{\text{adjusted}} = \mathbf{x}_{\text{emotion},\text{day}} - \mathbf{x}_{\text{neutral},\text{day}}$ .
On Data Set I across 7 non-neutral emotions, baseline subtraction increased SFFS-FP classification accuracy from $45.0\%$ (unadjusted 24 statistical features) to $54.3\%$ (confidence $94\%$ ).
Knowl 7 — Single-Subject Multi-Day Sentograph Protocol for Physiological Emotion Elicitation
experimental setup
A single healthy participant (trained in acting and visualization) participated in daily affective recording sessions over more than six weeks (20 artifact-free days retained) at approximately the same time each day.

The protocol used the Clynes Sentograph elicitation system, which presents eight emotional states in a fixed sequence: Neutral (No emotion), Anger, Hate, Grief, Platonic Love, Romantic Love, Joy, and Reverence. The subject focused on personally established imagery for each state while rhythmically pressing a two-axis pressure transducer rest to provide somatosensory reinforcement while constraining gross motor artifacts. Each emotion segment lasted 3 to 5 minutes.

Four physiological sensors sampled simultaneously at $20\text{ Hz}$ via a Thought Technologies ProComp unit:
1. Electromyogram ( $\mathcal{E}$ ): Triode $\text{Ag-AgCl}$ electrode ( $11\text{ mm}$ ) with high-conductivity gel placed on the masseter muscle.
2. Photoplethysmograph ( $\mathcal{B}$ ): Optical sensor placed on the left ring fingertip measuring blood volume pressure, from which heart rate ( $\mathcal{H}$ ) was derived.
3. Skin Conductance ( $\mathcal{S}$ ): Two $\text{Ag-AgCl}$ electrodes ( $11\text{ mm}$ ) with low-conductivity gel on the index and middle fingers of the palmar left hand.
4. Respiration ( $\mathcal{R}$ ): Hall effect expansion sensor attached around the diaphragm via an elastic band.
Two datasets were formed:
- Data Set I: $2,000$ samples ( $100\text{ s}$ ) taken from the end of each emotion segment across $20$ days ( $160$ total segments).
- Data Set II: All available samples per emotion segment ( $2,000$ to $5,000$ samples per segment) across $20$ complete days ( $160$ segments), retaining onset and transitional dynamics.
Knowl 8 — Feature Selection Robustness across Physiological Modalities
empirical result
Analyzing the selection frequencies of 40 features across 12 SFFS-based optimization experiments (standard SFFS, SFFS-FP, and SFFS-FP with Day Matrix across different input spaces) revealed distinct variations in feature utility:
- Always Selected ( $100\%$ selection rate whenever available in candidate pools):
  - Normalized mean absolute first difference of heart rate ( $\tilde{\delta}_{\mathcal{H}}$ , chosen $3/3$ times)
  - Mean first difference of smoothed skin conductance ( $f_4$ , chosen $6/6$ times)
  - Respiration power spectral density bands in $0.1 - 0.4\text{ Hz}$ ( $f_8, f_9, f_{10}$ , each chosen $6/6$ times)
- Frequently Selected:
  - Mean masseter electromyogram ( $\mu_{\mathcal{E}}$ , chosen $8/12$ times, $67\%$ )
  - Heart rate acceleration ( $f_2$ , chosen $5/6$ times, $83\%$ )
  - Respiration power spectral density band in $0.0 - 0.1\text{ Hz}$ ( $f_7$ , chosen $5/6$ times, $83\%$ )
  - Skin conductance differences ( $\delta_{\mathcal{S}}, \tilde{\delta}_{\mathcal{S}}, \gamma_{\mathcal{S}}, \tilde{\gamma}_{\mathcal{S}}$ , each chosen $7/9$ or $8/9$ times, $78 - 89\%$ )
  - Respiration differences ( $\delta_{\mathcal{R}}, \tilde{\delta}_{\mathcal{R}}, \gamma_{\mathcal{R}}, \tilde{\gamma}_{\mathcal{R}}$ , each chosen $7/9$ or $8/9$ times, $78 - 89\%$ )
- Never Selected ( $0\%$ selection rate across all runs):
  - Raw signal means of heart rate ( $\mu_{\mathcal{H}}$ , $0/6$ )
  - Raw signal mean of skin conductance ( $\mu_{\mathcal{S}}$ , $0/9$ )
  - Raw signal mean of respiration ( $\mu_{\mathcal{R}}$ , $0/9$ )
- Low Discriminative Value:
  - Contrast-normalized skin conductance ( $f_3$ , chosen only $1/6$ times, $17\%$ ), indicating that standard range-correction failed to enhance affective classification in this setup.
Knowl 9 — Five Factors Influencing Experimental Affective Data Elicitation
definition
Designing protocols for collecting affective ground-truth data involves five experimental dimensions:
1. Subject-elicited vs. Event-elicited: Whether the emotional state is generated internally through intentional participant effort (e.g., guided imagery, memory recall, acting techniques) or evoked externally by situational stimuli (e.g., video clips, environmental events, frustration tasks).
2. Lab setting vs. Real-world: Whether data collection occurs in an artificial, controlled laboratory environment or in the participant's natural habitat (e.g., home, office, vehicle).
3. Expression vs. Feeling: Whether the experimental objective targets observable outward displays (e.g., posed facial movements, vocal inflections) or genuine internal affective experiences.
4. Open-recording vs. Hidden-recording: Whether the participant is consciously aware of the active recording sensors during the task or the sensors operate unobtrusively/covertly.
5. Emotion-purpose vs. Other-purpose: Whether the participant is informed that the experiment evaluates emotion or believes the study investigates an unrelated topic (to prevent cognitive inhibition or task compliance bias).
Knowl 10 — Methodological Limitations of Physiological Affect Recognition
limitation
The physiological pattern recognition methodology exhibits several stated constraints:
1. Single-Subject Scope: Because the experimental corpus was collected from a single individual over multiple weeks to ensure semantic interpretation consistency, specific classification boundaries and selected feature rankings cannot be assumed to generalize across different individuals without per-user calibration.
2. Presegmented Forced-Choice Protocol: Classification was evaluated on presegmented time intervals with forced-choice categorical assignments, rather than unconstrained, continuous-time detection of natural affective transitions.
3. Self-Elicited Emotion: Affective states were elicited via self-directed visualization and Clynes sentograph prompting rather than spontaneous real-world emotional events.
4. Session-Wide Summary Dependency: Feature normalization methods that mitigate day-dependence (such as daily respiration mean subtraction $\mu_{\mathcal{R},\text{day}}$ or skin conductance contrast normalization using daily extrema) require whole-session statistics, preventing direct zero-latency online deployment without running estimation approximations.
5. Leave-One-Out Evaluation Optimism: Leave-one-out cross-validation can produce slightly optimistic performance estimates on small sample sizes compared to prospective evaluations on entirely disjoint future days.

Coverage note — None was omitted; all key algorithmic, experimental, theoretical, and empirical contributions from the paper have been extracted as self-contained knowls.

References

1.A.R. Damasio, Descartes' Error: Emotion, Reason, and the Human Brain. New York: Gosset/Putnam Press, 1994.
2.J. LeDoux, The Emotional Brain. New York: Simon & Schuster, 1996.
3.P. Salovey and J.D. Mayer, ªEmotional Intelligence,º Imagination, Cognition and Personality, vol. 9, no. 3, pp. 185-211, 1990.
4.D. Goleman, Emotional Intelligence. New York: Bantam Books, 1995.
5.B. Reeves and C. Nass, The Media Equation. Cambridge Univ. Press, Center for the Study of Language and Information, 1996.
6.M. Sigman and L. Capps, Children with Autism: A Developmental Perspective. Cambridge, Mass.: Harvard Univ. Press, 1997
7.R.W. Picard, Affective Computing. Cambridge, Mass.: The MIT Press, 1997.
8.J. Healey, R.W. Picard, and F. Dabek, ªA New Affect-Perceiving Interface and Its Application to Personalized Music Selection,º Proc. Workshop Perceptual User Interfaces, Nov. 1998.
9.R.W. Picard and J. Healey, ªAffective Wearables,º Personal Technologies, vol. 1, no. 4, pp. 231-240, 1997.
10.K.R. Scherer, ¤Speech and Emotional States,º Speech Evaluation in Psychiatry, J.K. Darby, ed., chapter 10, pp. 189-220, Grune and Stratton, Inc., 1981.
11.R. Banse and K.R. Scherer, ª¤Acoustic Profiles in Vocal Emotion Expression,º J. Personality and Social Psychology, vol. 70, no. 3, pp. 614-636, 1996.
12.T. Polzin, ª¤Detecting Verbal and Non-Verbal Cues in the Communication of Emotions,º PhD thesis, School of Computer Science, June 2000.
13.J. Hansen, Comm. during ICASSP '99 Panel on Speech Under Stress. Proc. Int'l Conf. Acoustics, Speech, and Signal Processing '99, 1999.
14.J.N. Bassili, ª¤Emotion Recognition: The Role of Facial Movement and the Relative Importance of Upper and Lower Areas of the Face,º J. Personality and Social Psychology, vol. 37, pp. 2049-2058, 1979.
15.Y. Yacoob and L.S. Davis, ª¤Recognizing Human Facial Expressions from Log Image Sequences Using Optical Flow,º IEEE Trans. Pattern Analysis and Machine Intelligence, vol. 18, no. 6, pp. 636-642, June 1996.
16.I. Essa and A. Gardner, ª¤Prosody Analysis for Speaker Affect Determination,º Proc. Workshop Perceptual User Interfaces '97, pp. 45-46, Oct. 1997.
17.I.A. Essa, ª¤Analysis, Interpretation and Synthesis of Facial Expressions,º PhD thesis, Mass. Inst. of Technology, Media Lab, Cambridge, Mass., Feb. 1995.
18.J.F. Cohn, A.J. Zlochower, J. Lien, and T. Kanade, ª¤Automated Face Analysis by Feature Point Tracking has High Concurrent Validity with Manual FACS Coding,º Psychophysiology, vol. 36, pp. 35-43, 1999.
19.M. Bartlett, J.C. Hager, P. Ekman, and T.J. Sejnowski, ª¤Measuring Facial Expressions by Computer Image Analysis,º Psychophysiology, vol. 36, pp. 253-263, 1999.
20.G. Donato, M.S. Bartlett, J.C. Hager, P. Ekman, and T.J. Sejnowski, ª¤Classifying Facial Actions,º IEEE Trans. Pattern Analysis and Machine Intelligence, vol. 21, no. 10, pp. 974-989, Oct. 1999.
21.L.C. DeSilva, T. Miyasato, and R. Nakatsu, ª¤Facial Emotion Recognition Using Multi-Modal Information,º Proc. IEEE Int'l Conf. Information, Comm., and Signal Processing, pp. 397-401, Sept. 1997.
22.T.S. Huang, L.S. Chen, and H. Tao, ª¤Bimodal Emotion Recognition by Man and Machine,º Proc. ATR Workshop Virtual Communication Environments, Apr. 1998.
23.L.S. Chen, T.S. Huang, T. Miyasato, and R. Nakatsu, ª¤Multimodal Human Emotion/Expression Recognition,º Proc. Third Int'l Conf. Automatic Face and Gesture Recognition, pp. 366-371, Apr. 1998.
24.J.T. Cacioppo and L.G. Tassinary, ª¤Inferring Psychological Significance from Physiological Signals,º Am. Psychologist, vol. 45, pp. 16-28, Jan. 1990.
25.W. James, William James: Writings 1878-1899, pp. 350-365, The Library of Am., 1992. Originally published in 1890.
26.W.B. Cannon, ª¤The James-Lange Theory of Emotions: A Critical Examination and an Alternative Theory,º Am. J. Psychology, vol. 39, pp. 106-124, 1927.
27.S. Schachter, ª¤The Interaction of Cognitive and Physiological Determinants of Emotional State,º Advances in Experimental Psychology, L. Berkowitz, ed., vol. 1, pp. 49-80, 1964.
28.P. Ekman, R.W. Levenson, and W.V. Friesen, ª¤Autonomic Nervous System Activity Distinguishes Among Emotions,º Science, vol. 221, pp. 1208-1210, Sept. 1983.
29.W.M. Winton, L. Putnam, and R. Krauss, ª¤Facial and Autonomic Manifestations of the Dimensional Structure of Emotion,º J. Experimental Social Psychology, vol. 20, pp. 195-216, 1984.
30.A.J. Fridlund and C.E. Izard, ª¤Electromyographic Studies of Facial Expressions of Emotions and Patterns of Emotions,º Social Psychophysiology: A Sourcebook, J.T. Cacioppo and R.E. Petty, eds., pp. 243-286, 1983.
31.J.T. Cacioppo, G.G. Berntson, J.T. Larsen, K.M. Poehlmann, and T.A. Ito, ª¤The Psychophysiology of Emotion,º Handbook of Emotions, M. Lewis and J.M. Haviland-Jones, eds., pp. 173-191, 2000.
32.D. Keltner and P. Ekman, ª¤The Psychophysiology of Emotion,º Handbook of Emotions, M. Lewis and J.M. Haviland-Jones, eds., pp. 236-249, 2000.
33.D.M. Clynes, Sentics: The Touch of the Emotions. Anchor Press/Doubleday, 1977.
34.C.E. Izard, ª¤Four Systems for Emotion Activation: Cognitive and Noncognitive Processes,º Psychological Rev., vol. 100, no. 1, pp. 68-90, 1993.
35.H. Hama and K. Tsuda, ª¤Finger-Pressure Waveforms Measured on Clynes' Sentograph Distinguished Among Emotions,º Perceptual and Motor Skills, vol. 70, pp. 371-376, 1990.
36.H. Schlosberg, ª¤Three Dimensions of Emotion,º Psychological Rev., vol. 61, pp. 81-88, Mar. 1954.
37.P.J. Lang, ª¤The Emotion Probe: Studies of Motivation and Attention,º Am. Psychologist, vol. 50, no. 5, pp. 372-385, 1995.
38.J.A. Healey, ª¤Wearable and Automotive Systems for Affect Recognition from Physiology,º Technical Report 526, PhD thesis, Mass. Inst. Technology, Cambridge, Mass., May 2000.
39.E. Vyzas and R.W. Picard, ª¤Affective Pattern Classification,º Proc. AAAI 1998 Fall Symp., Emotional and Intelligent: The Tangled Knot of Cognition, Oct. 1998.
40.E. Vyzas and R.W. Picard, ª¤Offline and Online Recognition of Emotion Expression from Physiological Data,º Proc. Workshop Emotion-Based Agent Architectures, Third Int'l Conf. Autonomous Agents, pp. 135-142, May 1999.
41.A.V. Oppenheim and R.W. Schafer, Discrete-Time Signal Processing. Englewood Cliffs, N.J.: Prentice-Hall, 1989.
42.D.T. Lyyken, R. Rose, B. Luther, and M. Maley, ª¤Correcting Psychophysiological Measures for Individual Differences in Range,º Psychophysiological Bulletin, vol. 66, pp. 481-484, 1966.
43.D.T. Lyyken and P.H. Venables, ª¤Direct Measurement of Skin Conductance: A Proposal for Standardization,º Psychophysiology, vol. 8, no. 5, pp. 656-672, 1971.
44.M.E. Dawson, A.M. Schell, and D.L. Filion, ª¤The Electrodermal System,º Principles of Psychophysiology: Physical, Social, and Inferential Elements, J.T. Cacioppo and L.G. Tassinary, eds., pp. 295-324, 1990.
45.P. Pudil, J. Novovicova, and J. Kittler, ª¤Floating Search Methods in Feature Selection,º Pattern Recognition Letters, vol. 15, pp. 1119-1125, Nov. 1994.
46.A. Jain and D. Zongker, ª¤Feature Selection: Evaluation, Application, and Small Sample Performance,º IEEE Trans. Patern Analysis and Machine Intelligence, vol. 19, no. 2, pp. 153-163, Feb. 1997.
47.P. Pudil, J. Novovicova, and J. Kittler, ª¤Simultaneous Learning of Decision Rules and Important Attributes for Classification Problems in Image Analysis,º Image and Vision Computing, vol. 12, pp. 193-198, Apr. 1994.
48.R.O. Duda and P.E. Hart, Pattern Classification and Scene Analysis. Wiley-Interscience, 1973.
49.T.M. Cover and P.E. Hart, ª¤Nearest Neighbor Pattern Classification,º IEEE Trans. Information Theory, vol. 13, pp. 21-27, Jan. 1967.
50.J. Healey and R.W. Picard, ª¤Digital Processing of Affective Signals,º Proc. IEEE Int'l Conf. Acoustics, Speech, and Signal Processing, 1998.
51.J. Scheirer, J. Klein, R. Fernandez, and R.W. Picard, ª¤Frustrating the User on Purpose: A Step Toward Building an Affective Computer,º Interaction with Computers, 2001, to appear.

Citation

MLA

Picard, R. W., et al. “Toward Machine Emotional Intelligence: Analysis of Affective Physiological State”. IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 23, no. 10, 2001, pp. 1175–91, https://doi.org/10.1109/34.954607.

APA

Picard, R. W., Vyzas, E., & Healey, J. (2001). Toward machine emotional intelligence: analysis of affective physiological state. IEEE Transactions on Pattern Analysis and Machine Intelligence, 23(10), 1175–1191. https://doi.org/10.1109/34.954607

Chicago

Picard, R. W., E. Vyzas, and J. Healey. 2001. “Toward Machine Emotional Intelligence: Analysis of Affective Physiological State”. IEEE Transactions on Pattern Analysis and Machine Intelligence 23 (10): 1175–91. https://doi.org/10.1109/34.954607.

Harvard

Picard, R.W., Vyzas, E. and Healey, J. (2001) “Toward machine emotional intelligence: analysis of affective physiological state”, IEEE Transactions on Pattern Analysis and Machine Intelligence, 23(10), pp. 1175–1191. Available at: https://doi.org/10.1109/34.954607.

Vancouver

1. Picard RW, Vyzas E, Healey J (2001) Toward machine emotional intelligence: analysis of affective physiological state. IEEE Transactions on Pattern Analysis and Machine Intelligence 23:1175–1191

BibTeX

@article{Picard_2001, title={Toward machine emotional intelligence: analysis of affective physiological state}, volume={23}, ISSN={0162-8828}, url={http://dx.doi.org/10.1109/34.954607}, DOI={10.1109/34.954607}, number={10}, journal={IEEE Transactions on Pattern Analysis and Machine Intelligence}, publisher={Institute of Electrical and Electronics Engineers (IEEE)}, author={Picard, R.W. and Vyzas, E. and Healey, J.}, year={2001}, pages={1175–1191} }

Metadata:Crossref

Access the Paper

This paper is available from its original source. Click below to access the PDF.

Open PDF

Toward Machine Emotional Intelligence: Analysis of Affective Physiological State

Abstract

Topics

Keywords

Table of Contents

Knowls

Knowl 1 — Hybrid SFFS with Fisher Projection (SFFS-FP) Classification Algorithm

Knowl 2 — Eight-Class Affective State Recognition Accuracy and Valence/Arousal Discrimination

Knowl 3 — Day-Dependence Phenomenon in Physiological Affective Signals

Knowl 4 — Comparative Emotion Recognition Performance across Feature Spaces and Day-Compensation Methods

Knowl 5 — Statistical and Physiology-Dependent Feature Set Formulation

Knowl 6 — Spatial Embedding and Baseline Normalization for Day-to-Day Variation Compensation

Knowl 7 — Single-Subject Multi-Day Sentograph Protocol for Physiological Emotion Elicitation

Knowl 8 — Feature Selection Robustness across Physiological Modalities

Knowl 9 — Five Factors Influencing Experimental Affective Data Elicitation

Knowl 10 — Methodological Limitations of Physiological Affect Recognition

References

Citation

BibTeX

Access the Paper
