Unsupervised Semantic Segmentation by Distilling Feature Correspondences

Mark HamiltonZhoutong ZhangBharath HariharanNoah SnavelyWilliam T. Freeman

article2022ICLR317 citations

Develops STEGO, a framework that distills self-supervised feature correspondences into compact semantic clusters, dramatically improving unsupervised image segmentation on complex benchmarks like CocoStuff and Cityscapes.

Listen

Semantic segmentation—the automated task of classifying every individual pixel in an image into meaningful categories—is vital for applications ranging from autonomous driving to medical diagnostics. However, training these systems traditionally requires exhaustive manual labeling, which can take over one hundred times more effort per image than simple classification. In specialized fields, precise ground-truth labels may even be ill-defined or impossible to obtain. Consequently, developing automated methods that can discover and segment objects entirely without human annotations addresses a critical scalability bottleneck in visual intelligence.

The article demonstrates that modern self-supervised vision models inherently capture dense, semantically consistent relationships across images, and introduces a framework named STEGO (Self-supervised Transformer with Energy-based Graph Optimization) to distill these relationships into discrete, high-quality pixel-level segmentations without human supervision.

To achieve this, the authors separate the learning of visual features from cluster formation. Instead of training a model from scratch, the approach keeps a pre-trained self-supervised vision transformer backbone frozen and trains a lightweight segmentation head using an energy-based contrastive loss. This training process contrasts feature correspondences across three relationship types: within the same image, between an image and its nearest visual neighbors, and across random image pairs. The architecture incorporates targeted design modifications, including spatial centering and zero-clamping, to stabilize optimization and better detect small objects. It finishes with a standard clustering step and spatial refinement. The methodology was evaluated on benchmark segmentation datasets, including CocoStuff and Cityscapes, and grounded theoretically as maximum likelihood estimation on graph Potts models.

The experimental findings show substantial improvements over existing unsupervised approaches. Most notably, STEGO improves segmentation accuracy by 14 mean Intersection over Union (mIoU) points on the challenging CocoStuff benchmark (reaching 28.2 mIoU compared to the prior state of the art's 14.4 mIoU). On the Cityscapes urban driving dataset, it achieves an 8.7 mIoU gain (reaching 21.0 mIoU versus the prior best of 12.3 mIoU). In linear probe evaluations, which test underlying feature utility, the framework achieved 41.0 mIoU on CocoStuff compared to the previous best of 14.8 mIoU. Furthermore, the approach proves computationally efficient, training in under two hours on a single graphical processing unit because the primary visual backbone remains frozen.

These findings demonstrate that high-resolution visual segmentation can be effectively automated without expensive human annotation pipelines, substantially lowering development costs and training timelines for computer vision deployments. By decoupling feature extraction from segmentation, organizations can directly leverage pre-trained foundational vision models for domain-specific visual parsing without redesigning end-to-end architectures.

Stakeholders and engineering teams should consider adopting this correspondence distillation approach when building vision systems for unlabeled or annotation-scarce environments. However, before deploying the framework in mission-critical applications, practitioners should conduct focused pilot studies. Technical teams must specifically address current limitations: unsupervised models can struggle with ambiguous or arbitrary class boundaries (such as distinguishing between walls and ceilings or generic food subtypes), and manual tuning is currently required to balance the attractive and repulsive optimization pressures without ground-truth validation data. Confidence in the reported performance gains is high across standard benchmarks, though readers should account for the remaining performance gap when comparing these fully unsupervised outputs to supervised alternatives.

Cornell UniversityGoogleMassachusetts Institute of TechnologyMicrosoftfeature correspondencerepresentation learningsemanticsunsupervised semantic segmentationfeature correspondencescorrespondence tensor
arXiv: 2203.08414mhamilton723/STEGO

No sufficiently relevant recommendations were found.

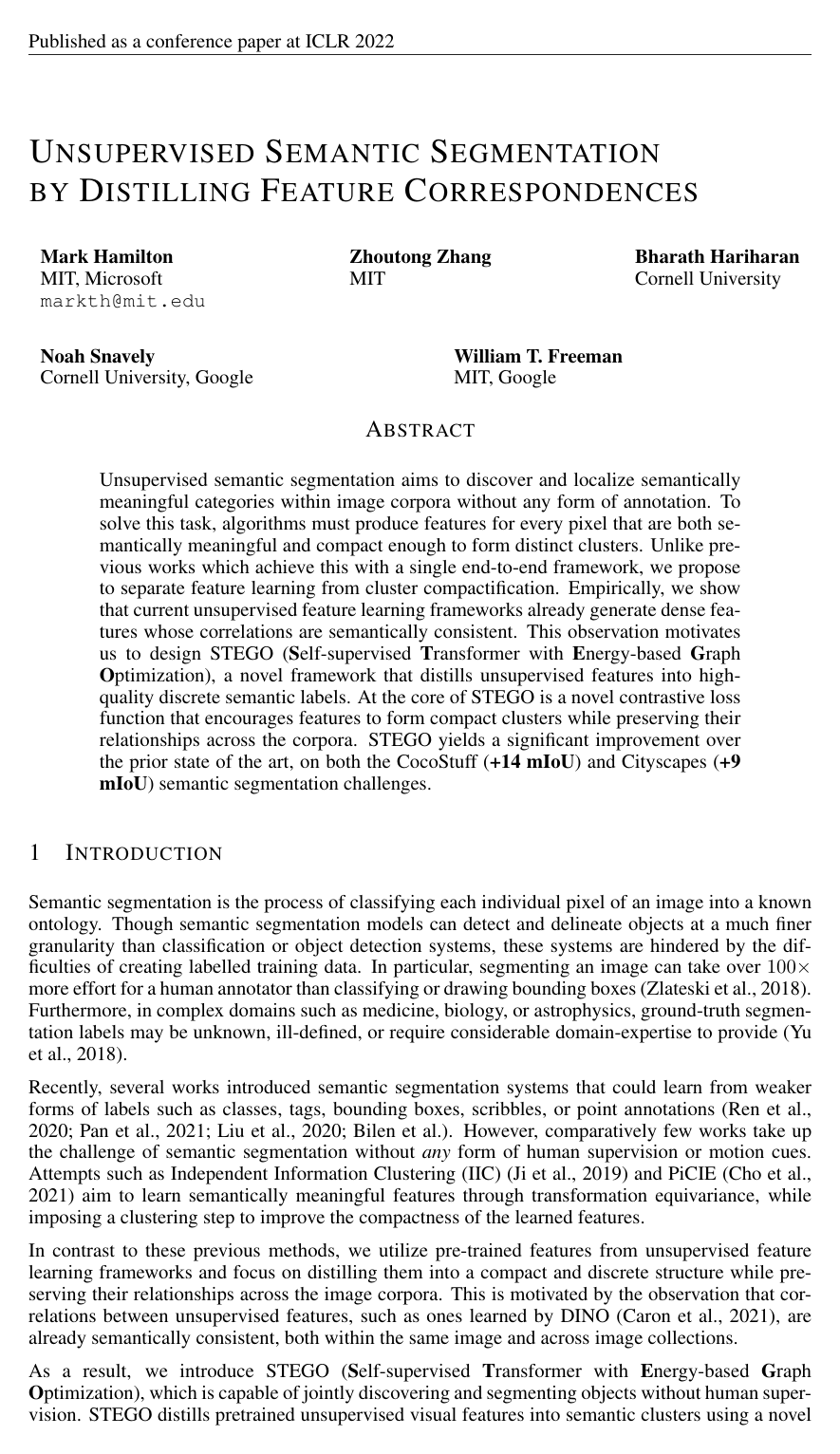

Cover for Unsupervised Semantic Segmentation by Distilling Feature Correspondences

Abstract

Unsupervised semantic segmentation aims to discover and localize semantically meaningful categories within image corpora without any form of annotation. To solve this task, algorithms must produce features for every pixel that are both semantically meaningful and compact enough to form distinct clusters. Unlike previous works which achieve this with a single end-to-end framework, we propose to separate feature learning from cluster compactification. Empirically, we show that current unsupervised feature learning frameworks already generate dense features whose correlations are semantically consistent. This observation motivates us to design STEGO (S\textbf{S}elf-supervised T\textbf{T}ransformer with E\textbf{E}nergy-based G\textbf{G}raph O\textbf{O}ptimization), a novel framework that distills unsupervised features into high-quality discrete semantic labels. At the core of STEGO is a novel contrastive loss function that encourages features to form compact clusters while preserving their relationships across the corpora. STEGO yields a significant improvement over the prior state of the art, on both the CocoStuff (+14 mIoU\textbf{+14 mIoU}) and Cityscapes (+9 mIoU\textbf{+9 mIoU}) semantic segmentation challenges.

Topics

feature correspondencerepresentation learningsemanticssupervised machine learningunsupervised learning methodstego imagestereo correspondences

Keywords

unsupervised semantic segmentationfeature correspondencescorrespondence tensorvisual feature learningunsupervised learningCocoStuff datasetconvolutional networks

Table of Contents

  • 1 Introduction
  • 2 Related Work
  • 3 Methods
  • 3.1 Feature Correspondences Predict Class Co-Occurrence
  • 3.2 Distilling Feature Correspondences
  • 3.3 STEGO Architecture
  • 3.4 Relation to Potts Models and Energy-based Graph Optimization
  • 4 Experiments
  • 4.1 Evaluation Details
  • 4.2 Results
  • 4.3 Ablation Study
  • 5 Conclusion
  • References
  • A Appendix
  • A.1 Video and Code
  • A.2 Additional Results on the Potsdam-3 Dataset
  • A.3 Additional Ablation Study
  • A.4 Additional Qualitative Results
  • A.5 Failure Cases
  • A.6 Feature Correspondences Predict STEGO’s Errors
  • A.7 Higher Resolution Confusion Matrices
  • A.8 Relationship with Graph Energy Minimization
  • A.9 Continuous, Unsupervised, and Mini-batch CRF
  • A.10 Implementation Details
  • A.11 A Heuristic for Setting Hyper-parameters
  • A.12 A note on 5-Crop Nearest Neighbors

Knowls

  1. Knowl 1 — STEGO Framework for Unsupervised Semantic Segmentation

    model/method

    STEGO (Self-supervised Transformer with Energy-based Graph Optimization) is an unsupervised semantic segmentation framework that separates representation learning from cluster compactification. Rather than training a backbone end-to-end with heuristic clustering objectives, STEGO utilizes frozen dense visual representations from a pretrained self-supervised visual backbone (such as DINO ViT) and trains a lightweight segmentation head to distill spatial feature correspondences into discrete, compact semantic clusters.

    The framework consists of four primary stages:

    1. Feature Extraction: A frozen self-supervised backbone network N\mathcal{N} extracts dense spatial feature representations f∈RC×H×Wf \in \mathbb{R}^{C \times H \times W} for an input image xx.
    2. Nonlinear Projection Head: A segmentation head S:RC×H×W→RK×H×WS: \mathbb{R}^{C \times H \times W} \to \mathbb{R}^{K \times H \times W} (where code dimension K<CK < C) maps backbone features ff to a continuous representation s=S(f)s = S(f). The segmentation head architecture consists of the sum of a single linear layer and a two-layer ReLU multilayer perceptron (MLP), outputting vectors of dimension K=70K = 70.
    3. Correspondence Distillation: The head SS is optimized via a contrastive correspondence distillation loss across three pairs: self-image pairs (x,x)(x, x), KK-nearest neighbor image pairs (x,xknn)(x, x^{knn}), and random negative image pairs (x,xrand)(x, x^{rand}).
    4. Clustering and Spatial Refinement: At inference, continuous segmentation codes ss are clustered across the dataset using minibatch KK-means with cosine distance to assign discrete semantic labels. Discrete labels are subsequently refined at full pixel resolution using a fully connected Conditional Random Field (CRF).

  2. Knowl 2 — Correspondence Distillation Loss with Clamping and Spatial Centering

    equation

    Let f∈RC×H×Wf \in \mathbb{R}^{C \times H \times W} and g∈RC×I×Jg \in \mathbb{R}^{C \times I \times J} be feature tensors extracted by a frozen backbone from images xx and yy, and let s=S(f)∈RK×H×Ws = S(f) \in \mathbb{R}^{K \times H \times W} and t=S(g)∈RK×I×Jt = S(g) \in \mathbb{R}^{K \times I \times J} denote their corresponding segmentation embeddings produced by segmentation head SS.

    The spatial feature correspondence tensor F∈RH×W×I×JF \in \mathbb{R}^{H \times W \times I \times J} measures pairwise cosine similarity between normalized backbone features:

    Fhwij:=∑c=1Cfchw∥fhw∥2gcij∥gij∥2F_{hwij} := \sum_{c=1}^C \frac{f_{chw}}{\|f_{hw}\|_2} \frac{g_{cij}}{\|g_{ij}\|_2}

    To balance learning signals for small objects with highly localized correspondences, Spatial Centering (SC) subtracts the average correlation across the target image spatial dimensions:

    FhwijSC:=Fhwij−1IJ∑i′=1I∑j′=1JFhwi′j′F^{SC}_{hwij} := F_{hwij} - \frac{1}{IJ}\sum_{i'=1}^I \sum_{j'=1}^J F_{hwi'j'}

    The segmentation correspondence tensor Shwij∈RH×W×I×JS_{hwij} \in \mathbb{R}^{H \times W \times I \times J} measures cosine similarity between distilled features:

    Shwij:=∑k=1Kskhw∥shw∥2tkij∥tij∥2S_{hwij} := \sum_{k=1}^K \frac{s_{khw}}{\|s_{hw}\|_2} \frac{t_{kij}}{\|t_{ij}\|_2}

    To avoid co-linearity and optimization instability caused by penalizing uncorrelated features with anti-alignment (pushing towards −1-1), segmentation similarities are clamped at 00 (0-Clamp), driving weakly correlated features toward orthogonality instead. The final correspondence distillation loss between image pair (x,y)(x, y) given negative pressure bias b∈Rb \in \mathbb{R} is defined as:

    Lcorr(x,y,b):=−∑h=1H∑w=1W∑i=1I∑j=1J(FhwijSC−b)max⁡(Shwij,0)\mathcal{L}_{corr}(x, y, b) := -\sum_{h=1}^H \sum_{w=1}^W \sum_{i=1}^I \sum_{j=1}^J (F^{SC}_{hwij} - b) \max(S_{hwij}, 0)

  3. Knowl 3 — STEGO Multi-Target Optimization Objective and Minibatch Sampling

    model/method

    STEGO optimizes its segmentation head SS by combining three instantiations of the correspondence distillation loss Lcorr\mathcal{L}_{corr}:

    L=λselfLcorr(x,x,bself)+λknnLcorr(x,xknn,bknn)+λrandLcorr(x,xrand,brand)\mathcal{L} = \lambda_{self} \mathcal{L}_{corr}(x, x, b_{self}) + \lambda_{knn} \mathcal{L}_{corr}(x, x^{knn}, b_{knn}) + \lambda_{rand} \mathcal{L}_{corr}(x, x^{rand}, b_{rand})

    where λself,λknn,λrand∈R≥0\lambda_{self}, \lambda_{knn}, \lambda_{rand} \in \mathbb{R}_{\ge 0} balance the loss components, and bself,bknn,brand∈Rb_{self}, b_{knn}, b_{rand} \in \mathbb{R} control the ratio of attractive (positive) to repulsive (negative) forces.

    Sampling and balancing mechanics operate as follows:

    • Nearest Neighbors (xknnx^{knn}): Prior to training, global image embeddings are constructed via global average pooling GAP(f)\text{GAP}(f) over backbone features. For each training crop, top-77 nearest neighbors are precomputed using cosine similarity. In each training step, xknnx^{knn} is sampled uniformly at random from the image's top-77 KNNs.
    • Random Images (xrandx^{rand}): Sampled by shuffling the minibatch such that no image matches with itself, providing repulsive negative pressure.
    • Loss Balancing: The loss weights are set such that λself≈λrand≈2λknn\lambda_{self} \approx \lambda_{rand} \approx 2\lambda_{knn}. Negative pressures are tuned per dataset so that mean KNN feature similarity settles near ≈0.3\approx 0.3 and mean random similarity near ≈0.0\approx 0.0.
    • Resolution Independence: Losses are calculated by randomly sampling 121 spatial coordinate pairs from source and target feature grids using bilinear grid sampling.

  4. Knowl 4 — Equivalence of Correspondence Distillation to Potts Model Maximum Likelihood Estimation

    theoretical result

    The correspondence distillation objective is mathematically equivalent to Maximum Likelihood Estimation (MLE) on a continuous Potts / Ising model defined on an undirected, fully connected graph G=(V,w)G = (V, w) of all dataset pixels.

    Let VV be the set of all spatial pixel locations across an entire dataset of images XX, where each vertex v=(n,h,w)v = (n, h, w) denotes spatial position (h,w)(h, w) in image nn. Let ϕ:V→RK\phi: V \to \mathbb{R}^K be parameterized by ϕ(v)=S(N(x))\phi(v) = S(\mathcal{N}(x)), mapping pixels to normalized code vectors sv/∥sv∥2s_v / \|s_v\|_2. Defining edge weights w(vi,vj)=F(vi,vj)−bw(v_i, v_j) = F(v_i, v_j) - b (where FF is backbone feature cosine similarity) and the compatibility function as cosine distance μ(ϕ(vi),ϕ(vj))=−⟨ϕ(vi),ϕ(vj)⟩\mu(\phi(v_i), \phi(v_j)) = - \langle \phi(v_i), \phi(v_j) \rangle, the Potts graph energy is:

    E(ϕ)=∑vi,vj∈Vw(vi,vj)μ(ϕ(vi),ϕ(vj))=−∑vi,vj∈V(F(vi,vj)−b)⟨ϕ(vi),ϕ(vj)⟩E(\phi) = \sum_{v_i, v_j \in V} w(v_i, v_j) \mu(\phi(v_i), \phi(v_j)) = - \sum_{v_i, v_j \in V} (F(v_i, v_j) - b) \langle \phi(v_i), \phi(v_j) \rangle

    The Boltzmann distribution over the function space Φ\Phi is:

    p(ϕ∣w,μ)=exp⁡(−E(ϕ))∫Φexp⁡(−E(ϕ′))dϕ′p(\phi \mid w, \mu) = \frac{\exp(-E(\phi))}{\int_\Phi \exp(-E(\phi')) d\phi'}

    Maximizing the likelihood arg⁡max⁡ϕ∈Φp(ϕ∣w,μ)\arg\max_{\phi \in \Phi} p(\phi \mid w, \mu) simplifies to minimizing the energy functional arg⁡min⁡SE(S∘N)\arg\min_S E(S \circ \mathcal{N}), which directly recovers the sum over all image pairs of the basic correspondence loss:

    arg⁡max⁡ϕ∈Φp(ϕ∣w,μ)=arg⁡min⁡S∑x,y∈XLsimple−corr(x,y,b)\arg\max_{\phi \in \Phi} p(\phi \mid w, \mu) = \arg\min_S \sum_{x, y \in X} \mathcal{L}_{simple-corr}(x, y, b)

  5. Knowl 5 — Unsupervised Feature Correspondences as Predictors of Semantic Label Co-occurrence

    empirical result

    Pretrained self-supervised vision transformer features (specifically DINO ViT) without any fine-tuning or supervision exhibit dense spatial feature correspondences that strongly predict ground truth semantic class co-occurrences.

    When treating pairwise cosine feature similarity FhwijF_{hwij} as a logit to classify whether two pixels share the same ground-truth class label (Lhwij=1L_{hwij} = 1 if lhw=kijl_{hw} = k_{ij}, else 00):

    • DINO self-correspondences achieve 90%90\% precision at 50%50\% recall on the 27-class CocoStuff benchmark, obtaining an Average Precision (AP) of 79%79\%.
    • DINO significantly outperforms self-supervised convolutional representations from MoCoV2 (AP=65%\text{AP} = 65\%) and spatial Gaussian CRF kernels (AP=60%\text{AP} = 60\%).
    • After training the STEGO segmentation head with correspondence distillation, the predicted label co-occurrence Average Precision improves to 86%86\%, demonstrating that distillation amplifies the supervisory correlation signal across the dataset.

  6. Knowl 6 — CocoStuff 27-Class Benchmark Performance

    data/table

    STEGO was evaluated on the 27 mid-level classes of the CocoStuff dataset using standard unsupervised clustering (evaluated via Hungarian matching against ground truth) and linear probe evaluation (a linear classifier trained on fixed segmentation features). Validation images were resized to 320 along the minor axis and center cropped to 320×320320 \times 320.

    Model Unsupervised Linear Probe
    Accuracy mIoU Accuracy mIoU
    ResNet50 24.6 8.9 41.3 10.2
    MoCoV2 25.2 10.4 44.4 13.2
    DINO 30.5 9.6 66.8 29.4
    Deep Cluster 19.9 - - -
    SIFT 20.2 - - -
    Doersch et al. 23.1 - - -
    Isola et al. 24.3 - - -
    AC 30.8 - - -
    InMARS 31.0 - - -
    IIC 21.8 6.7 44.5 8.4
    MDC 32.2 9.8 48.6 13.3
    PiCIE 48.1 13.8 54.2 13.9
    PiCIE + H 50.0 14.4 54.8 14.8
    STEGO (Ours) 56.9 28.2 76.1 41.0

    STEGO establishes a new state-of-the-art on CocoStuff-27, improving unsupervised mIoU by +13.8+13.8 points (+95.8%+95.8\% relative improvement over PiCIE+H) and linear probe mIoU by +26.2+26.2 points.

  7. Knowl 7 — Cityscapes and Potsdam-3 Unsupervised Segmentation Performance

    data/table

    STEGO was evaluated on the 27 classes of Cityscapes and the 3 classes of the Potsdam aerial segmentation dataset under fully unsupervised evaluation protocols.

    Cityscapes (27 Classes) Unsupervised Accuracy (%) Unsupervised mIoU
    IIC 47.9 6.4
    MDC 40.7 7.1
    PiCIE 65.5 12.3
    STEGO (Ours) 73.2 21.0
    Potsdam-3 Aerial Dataset Unsupervised Accuracy (%)
    Random CNN 38.2
    SIFT 38.2
    Deep Cluster 41.7
    K-Means 45.7
    Doersch et al. 49.6
    Isola et al. 63.9
    IIC 65.1
    STEGO (Ours) 77.0

    On Cityscapes-27, STEGO surpasses prior state-of-the-art (PiCIE) by +8.7+8.7 mIoU and +7.7%+7.7\% accuracy without fine-tuning backbone weights on driving data. On Potsdam-3, STEGO surpasses IIC by +11.9%+11.9\% accuracy.

  8. Knowl 8 — Ablation Analysis of STEGO Architectural Components and Losses

    data/table

    An ablation study on CocoStuff (27 classes) demonstrates the contribution of individual backbone architectures, loss adjustments, and preprocessing/post-processing modules:

    • 0-Clamp: Clamping negative segmentation correlation forces at 0 prevents co-linearity instabilities.
    • 5-Crop: Pre-cropping images into 5 crops (0.5h×0.5w0.5h \times 0.5w) prior to KNN mining quadruples local image detail resolution.
    • SC: Spatial centering balances attractive forces for small semantic objects.
    • CRF: Post-processing label maps with fully connected CRF aligns boundaries to high-resolution image edges.
    Backbone 0-Clamp 5-Crop SC CRF Unsupervised Linear Probe
    Acc. mIoU Acc. mIoU
    MoCoV2 ✓ 48.4 20.8 70.7 26.5
    ViT-S 34.2 7.3 54.9 15.6
    ViT-S ✓ 44.3 21.3 70.9 36.8
    ViT-S ✓ ✓ 47.6 23.4 72.2 36.8
    ViT-S ✓ ✓ ✓ 47.7 24.0 72.9 38.4
    ViT-S ✓ ✓ ✓ ✓ 48.3 24.5 74.4 38.3
    ViT-B ✓ ✓ ✓ 54.8 26.8 74.3 39.5
    ViT-B ✓ ✓ ✓ ✓ 56.9 28.2 76.1 41.0

    Ablation of individual loss terms shows that removing the random negative loss (Rand-Loss) causes the largest performance drop (Unsupervised mIoU falls from 24.524.5 to 12.812.8 on ViT-S), while removing KNN-Loss reduces mIoU to 20.220.2 and removing Self-Loss reduces mIoU to 22.222.2.

  9. Knowl 9 — Continuous and Unsupervised Formulation of Conditional Random Fields

    model/method

    The correspondence energy minimization formulation enables extending fully connected Gaussian Conditional Random Fields (CRFs) into continuous, unsupervised, minibatch formulations without unary potentials.

    In standard fully connected CRFs, the pairwise edge potential between pixel locations pi,pjp_i, p_j with RGB color vectors Ii,IjI_i, I_j is defined by:

    wcrf(vi,vj)=aexp⁡(−∥pi−pj∥22θα2−∥Ii−Ij∥22θβ2)+bexp⁡(−∥pi−pj∥22θγ2)w_{crf}(v_i, v_j) = a \exp\left( -\frac{\|p_i - p_j\|^2}{2\theta_\alpha^2} - \frac{\|I_i - I_j\|^2}{2\theta_\beta^2} \right) + b \exp\left( -\frac{\|p_i - p_j\|^2}{2\theta_\gamma^2} \right)

    When unary classification potentials are unavailable, strictly positive pairwise affinities cause the maximum likelihood solution to collapse to a constant single-cluster state. By subtracting a negative pressure constant bcrfb_{crf} from the edge weights (wcrf′=wcrf−bcrfw'_{crf} = w_{crf} - b_{crf}) analogous to negative sampling, the energy forces unrelated pixels apart.

    Lifting the state space from discrete probability simplices P(l)\mathcal{P}(l) to a continuous embedding space RK\mathbb{R}^K with cosine compatibility allows optimizing continuous superpixel representations with minibatch gradient descent, avoiding discrete local minima.

  10. Knowl 10 — Limitations in Unsupervised Semantic Segmentation and Ontology Ambiguities

    limitation

    STEGO and related unsupervised segmentation frameworks exhibit specific systematic limitations:

    1. Arbitrary Semantic Ontologies: Unsupervised clustering cannot resolve human-defined arbitrary taxonomical distinctions without external priors. For instance, STEGO systematically conflates 'food (things)' with 'food (stuff)', struggles to separate 'walls' from 'ceilings', and yields inconsistent segmentations for abstract categories like 'indoor', 'accessory', 'textile', and 'rawmaterial'.
    2. Error Inheritance from Backbone Correspondences: Confusion patterns in the trained model closely match error patterns already present in the raw DINO feature correspondences, showing that errors originate largely from representation structure rather than optimization failure.
    3. Unsupervised Hyperparameter Calibration: Hyperparameters (such as negative biases bself,bknn,brandb_{self}, b_{knn}, b_{rand}) must currently be tuned manually by monitoring whether the distribution of learned feature similarities exhibits a healthy bimodal distribution (peaking at 00 for orthogonality and 11 for alignment), as automated cross-validation without ground-truth labels remains an open challenge.

Coverage note — None was omitted; all main architectural designs, loss formulations, theoretical links to Potts models/CRFs, quantitative benchmark tables, ablation analyses, and core limitations are fully covered.
