CrossViT: Cross-Attention Multi-Scale Vision Transformer for Image Classification

Chun-Fu ChenQuanfu FanRameswar Panda

article2021ICCV2,245 citations

Introduces CrossViT, a dual-branch vision transformer that extracts multi-scale features from different patch sizes and fuses them using a linear-time cross-attention mechanism to achieve superior ImageNet classification accuracy over standard Vision Transformers with low computational overhead.

Listen

Visual recognition systems increasingly rely on vision transformers rather than conventional convolutional networks. However, standard vision transformers typically process images using single-sized patches, missing the multi-scale contextual information that made earlier vision architectures successful. Directly combining multiple patch granularities often creates prohibitive computational and memory bottlenecks due to the quadratic complexity of standard attention mechanisms.

To address this limitation, the article introduces CrossViT, a dual-branch vision transformer architecture designed to learn multi-scale visual representations. The objective was to demonstrate that combining coarse-grained and fine-grained image patch streams via an efficient cross-attention mechanism achieves higher classification accuracy without substantial increases in computational overhead.

Researchers evaluated the approach primarily on the ImageNet benchmark, testing several model configurations varying in depth, embedding dimensions, and patch embedding methods. The architecture uses a wider, deeper primary branch for coarse patches and a lighter, narrower complementary branch for fine patches. Rather than calculating full pairwise attention across all tokens, the system uses the summary classification token of each branch as an agent to exchange information with the other branch, reducing attention complexity from quadratic to linear time. The models were also tested across five downstream transfer learning tasks, including medical and fine-grained image datasets.

Key findings confirm that this dual-branch cross-attention strategy provides consistent accuracy gains across various model sizes. On the standard ImageNet benchmark, CrossViT models outperformed baseline models like DeiT by up to 1.2 to 2.0 percentage points with modest parameter increases. When incorporating convolutional patch embeddings, performance reached 82.8% to 84.1% top-1 accuracy at higher resolutions. Notably, the CrossViT-18 configuration achieved 82.8% accuracy while cutting floating-point operations and parameter counts nearly in half compared to base baseline models. Across downstream transfer tasks, the architecture retained competitive generalization without overfitting.

These results indicate that multi-scale representation is highly practical for vision transformers when information exchange is restricted to summary tokens. Organizations deploying vision models can achieve superior accuracy and throughput compared to traditional convolutional networks and earlier transformer models, lowering operational inference costs for demanding image recognition tasks.

Decision-makers should consider adopting dual-branch transformer architectures for production computer vision pipelines where fine detail and broad context are both essential. For maximal accuracy, practitioners should pair the architecture with convolutional embedding tokenizers. While the current study validates performance in general image classification, future work should extend and pilot these multi-scale mechanisms in dense prediction tasks, such as object detection, semantic segmentation, and video understanding.

MIT-IBM Watson AI Lab classification convolutional neural networks encoder-decoder Cross-Attention Multi-Scale Vision Transformer cross-attention fusion multi-scale transformer encoder

arXiv: 2103.14899 IBM/CrossViT

Paper: An Image is Worth 16x16 Words: Transformers for Image Recognition at Scale, Alexey Dosovitskiy et al. (2021). Read the original Vision Transformer first to understand the patch-token and class-token architecture that CrossViT adapts into two interacting branches.
Paper: Training data-efficient image transformers & distillation through attention, Hugo Touvron et al. (2021). DeiT provides the data-efficient ViT training baseline that CrossViT compares against, clarifying the classification framework its multi-scale design seeks to improve.

Paper: CrossFormer: A Versatile Vision Transformer Hinging on Cross-scale Attention, Wenxiao Wang et al. (2022). CrossFormer carries multi-scale transformer design further with explicit cross-scale attention, extending CrossViT’s central effort to connect representations at different patch granularities.
Paper: Multi-Scale High-Resolution Vision Transformer for Semantic Segmentation, Jiaqi Gu et al. (2022). HRViT extends multi-scale transformer interaction to high-resolution dense prediction, taking the kind of cross-scale representation learning explored by CrossViT into segmentation.

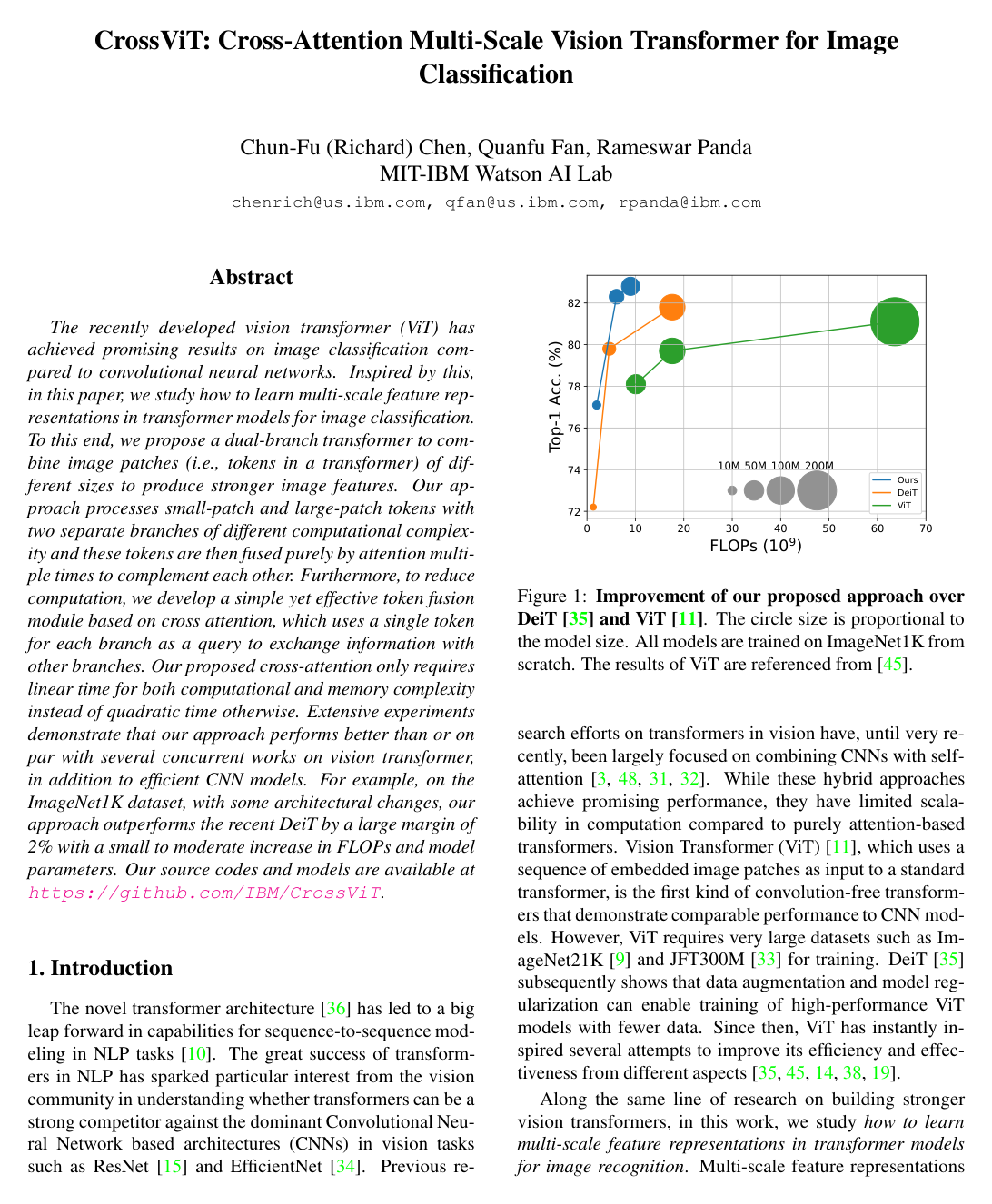

Cover for CrossViT: Cross-Attention Multi-Scale Vision Transformer for Image Classification

Abstract

The recently developed vision transformer (ViT) has achieved promising results on image classification compared to convolutional neural networks. Inspired by this, in this paper, we study how to learn multi-scale feature representations in transformer models for image classification. To this end, we propose a dual-branch transformer to combine image patches (i.e., tokens in a transformer) of different sizes to produce stronger image features. Our approach processes small-patch and large-patch tokens with two separate branches of different computational complexity and these tokens are then fused purely by attention multiple times to complement each other. Furthermore, to reduce computation, we develop a simple yet effective token fusion module based on cross attention, which uses a single token for each branch as a query to exchange information with other branches. Our proposed cross-attention only requires linear time for both computational and memory complexity instead of quadratic time otherwise. Extensive experiments demonstrate that our approach performs better than or on par with several concurrent works on vision transformer, in addition to efficient CNN models. For example, on the ImageNet1K dataset, with some architectural changes, our approach outperforms the recent DeiT by a large margin of 2% with a small to moderate increase in FLOPs and model parameters. Our source codes and models are available at \url{this https URL}.

Topics

classification convolutional neural networks encoder-decoder image features image patches source codes source nodes supervised classification

Keywords

Cross-Attention Multi-Scale Vision Transformer cross-attention fusion multi-scale transformer encoder multi-scale feature representations Vision Transformer image classification

1 Introduction
2 Related Works
3 Method
3.1 Overview of Vision Transformer
3.2 Proposed Multi-Scale Vision Transformer
3.3 Multi-Scale Feature Fusion
4 Experiments
4.1 Experimental Setup
4.2 Main Results
4.3 Ablation Studies
5 Conclusion
References
A More Comparisons and Analysis

Knowls

Knowl 1 — CrossViT Dual-Branch Multi-Scale Vision Transformer Architecture
model/method
The Cross-Attention Multi-Scale Vision Transformer (CrossViT) is an architecture for image classification that learns multi-scale feature representations by processing image patches of different sizes in two separate branches:
1. Large Branch (L-Branch, Primary Branch): Operates on coarse-grained image patches of size $P_l$ (e.g., $16 \times 16$ ). It uses a wider embedding dimension $C_l$ and a deeper stack of $M$ standard transformer encoders to extract abstract, high-level representations.
2. Small Branch (S-Branch, Complementary Branch): Operates on fine-grained image patches of size $P_s$ ( $P_s < P_l$ , e.g., $12 \times 12$ ). It uses a narrower embedding dimension $C_s$ and a shallower stack of $N$ transformer encoders (typically $N=1$ ) to extract complementary, fine-grained representations with low computational overhead.
The overall architecture stacks $K$ multi-scale transformer encoder blocks (typically $K=3$ ). In each block:
- Both branches independently process their respective patch tokens alongside a learnable classification (CLS) token using standard multi-head self-attention (MSA) and feed-forward networks (FFN).
- At the end of the block, an efficient cross-attention module is applied $L$ times (typically $L=1$ ) where the CLS token of each branch interacts with the patch tokens of the opposite branch.
- After $K$ multi-scale blocks, classification is performed by feeding the final CLS tokens of both branches into separate multi-layer perceptron (MLP) heads and summing their prediction logits.
Knowl 2 — Cross-Attention Multi-Scale Token Fusion Mechanism
equation
To fuse multi-scale features without quadratic computational overhead, CrossViT uses a cross-attention (CA) module where the classification token (CLS) of one branch acts as an information exchange agent with the patch tokens of the other branch.

For the large branch ( $l$ ) receiving information from the small branch ( $s$ ), the input patch tokens $x_{\text{patch}}^s \in \mathbb{R}^{N_s \times C_s}$ and CLS token $x_{\text{cls}}^l \in \mathbb{R}^{1 \times C_l}$ are combined via a linear projection $f^l: \mathbb{R}^{C_l} \to \mathbb{R}^{C_s}$ to align dimensions: $x^{\prime l} = \left[ f^l(x_{\text{cls}}^l) \parallel x_{\text{patch}}^s \right] \in \mathbb{R}^{(1 + N_s) \times C_s}$ where $\parallel$ denotes concatenation along the sequence dimension.

Cross-attention is computed using only the projected CLS token as the query: $q = f^l(x_{\text{cls}}^l) W_q, \quad k = x^{\prime l} W_k, \quad v = x^{\prime l} W_v$ $A = \text{softmax}\left(\frac{q k^T}{\sqrt{C_s / h}}\right), \quad \text{CA}(x^{\prime l}) = A v$ where $W_q, W_k, W_v \in \mathbb{R}^{C_s \times (C_s/h)}$ are learnable projection matrices, $h$ is the number of attention heads, and $A \in \mathbb{R}^{1 \times (1 + N_s)}$ is the cross-attention map.

With multi-head cross-attention (MCA), layer normalization (LN), and a residual shortcut, the updated CLS token $y_{\text{cls}}^l$ and the output token sequence $z^l$ are given by: $y_{\text{cls}}^l = f^l(x_{\text{cls}}^l) + \text{MCA}\left(\text{LN}\left(\left[ f^l(x_{\text{cls}}^l) \parallel x_{\text{patch}}^s \right]\right)\right)$ $z^l = \left[ g^l(y_{\text{cls}}^l) \parallel x_{\text{patch}}^l \right]$ where $g^l: \mathbb{R}^{C_s} \to \mathbb{R}^{C_l}$ is a linear back-projection function to restore the original channel dimension, and $x_{\text{patch}}^l$ is the untouched patch token sequence of the large branch. The small branch performs the symmetric operation by swapping indices $l$ and $s$ .
Knowl 3 — Computational and Memory Complexity of Cross-Attention Fusion vs. All-Attention Fusion
theoretical result
Let $N_l$ and $N_s$ be the number of patch tokens in the large and small branches, respectively, and let $C$ denote the feature embedding dimension.
- All-Attention Fusion: Concatenates all tokens from both branches ( $1 + N_l + 1 + N_s$ tokens) and applies standard all-to-all self-attention. The generation of the attention map and self-attention operations require $\mathcal{O}((N_l + N_s)^2 C)$ computation and $\mathcal{O}((N_l + N_s)^2)$ memory.
- Cross-Attention Fusion: Uses only the single CLS token ( $1$ token) from branch $l$ as the query to attend to the sequence $[f^l(x_{\text{cls}}^l) \parallel x_{\text{patch}}^s]$ ( $1 + N_s$ tokens). Symmetrically, the CLS token from branch $s$ attends to $1 + N_l$ tokens.
Consequently, the cross-attention map generation and value aggregation require $\mathcal{O}((N_l + N_s) C)$ computation and $\mathcal{O}(N_l + N_s)$ memory, achieving strictly linear time and memory complexity with respect to the total number of patch tokens.
Knowl 4 — Alternative Dual-Branch Token Fusion Strategies
model/method
Four distinct fusion strategies for combining token sequences $x^l = [x_{\text{cls}}^l \parallel x_{\text{patch}}^l]$ and $x^s = [x_{\text{cls}}^s \parallel x_{\text{patch}}^s]$ from large and small branches were formulated and compared:
1. All-Attention Fusion: Tokens from both branches are linearly projected to match dimensions, concatenated into a single sequence $y = [f^l(x^l) \parallel f^s(x^s)]$ , processed through full multi-head self-attention with residual connection $o = y + \text{MSA}(\text{LN}(y))$ , partitioned into $o = [o^l \parallel o^s]$ , and back-projected via $z^i = g^i(o^i)$ .
2. Class Token Fusion: Only the CLS tokens are merged by summing their projected representations, leaving patch tokens untouched: $z^i = \left[ g^i\left(\sum_{j \in \{l,s\}} f^j(x_{\text{cls}}^j)\right) \parallel x_{\text{patch}}^i \right]$
3. Pairwise Fusion: Spatial patch tokens are aligned in spatial resolution using 2D interpolation and summed along with the separately summed CLS tokens: $z^i = \left[ g^i\left(\sum_{j \in \{l,s\}} f^j(x_{\text{cls}}^j)\right) \parallel g^i\left(\sum_{j \in \{l,s\}} f^j(x_{\text{patch}}^j)\right) \right]$
4. Cross-Attention Fusion: The CLS token of each branch serves as the query attending to the projected concatenation of itself and the other branch's patch tokens, after which it is back-projected to its own branch while patch tokens remain unchanged.

Knowl 5 — Architectural Configurations of CrossViT Variants

data/table

CrossViT models are configured with $K=3$ multi-scale transformer encoders, $N=1$ encoder in the small branch, and $L=1$ cross-attention module per block. The suffix $\dagger$ indicates that the linear patch embedding is replaced with a three-layer convolutional stem.

Model	Patch Embedding	$P_s$	$P_l$	$C_s$	$C_l$	Heads	$M$	$r$
CrossViT-Ti	Linear	12	16	96	192	3	4	4
CrossViT-S	Linear	12	16	192	384	6	4	4
CrossViT-B	Linear	12	16	384	768	12	4	4
CrossViT-9	Linear	12	16	128	256	4	3	3
CrossViT-15	Linear	12	16	192	384	6	5	3
CrossViT-18	Linear	12	16	224	448	7	6	3
CrossViT-9 $\dagger$	3 Conv.	12	16	128	256	4	3	3
CrossViT-15 $\dagger$	3 Conv.	12	16	192	384	6	5	3
CrossViT-18 $\dagger$	3 Conv.	12	16	224	448	7	6	3

Here, $P_s$ and $P_l$ are the patch sizes for the small and large branches, $C_s$ and $C_l$ are the respective embedding dimensions, $M$ is the number of transformer encoders per multi-scale block in the large branch (total depth of the large branch is $K \times M$ ), and $r$ is the MLP expansion ratio in the feed-forward network (FFN).

Knowl 6 — Ablation of Fusion Strategies on ImageNet-1K

data/table

An empirical comparison of token fusion schemes based on the CrossViT-S architecture evaluated on the ImageNet-1K validation set demonstrates that Cross-Attention achieves superior top-1 accuracy while balancing branch contributions.

Fusion Scheme	Top-1 Acc. (%)	FLOPs (G)	Params (M)	L-Branch Acc. (%)	S-Branch Acc. (%)
None	80.2	5.3	23.7	80.2	0.1
All-Attention	80.0	7.6	27.7	79.9	0.5
Class Token	80.3	5.4	24.2	80.6	7.6
Pairwise	80.3	5.5	24.2	80.3	7.3
Cross-Attention	81.0	5.6	26.7	68.1	47.2

In baseline fusion methods (None, All-Attention, Class Token, Pairwise), the primary L-Branch dominates predictions while the S-Branch exhibits near-zero standalone accuracy ( $0.1\% - 7.6\%$ ). Under Cross-Attention fusion, both branches develop non-trivial individual classification accuracy ( $68.1\%$ and $47.2\%$ ), and their ensemble reaches $81.0\%$ , confirming complementary feature learning.

Knowl 7 — ImageNet-1K Performance Comparison: CrossViT vs. DeiT Baselines

data/table

CrossViT models trained from scratch for 300 epochs on ImageNet-1K (input resolution $224 \times 224$ ) consistently outperform baseline Data-efficient Image Transformers (DeiT).

Model	Top-1 Acc. (%)	FLOPs (G)	Throughput (images/s)	Params (M)
DeiT-Ti	72.2	1.3	2557	5.7
CrossViT-Ti	73.4	1.6	1668	6.9
CrossViT-9	73.9	1.8	1530	8.6
CrossViT-9 $\dagger$	77.1	2.0	1463	8.8
DeiT-S	79.8	4.6	966	22.1
CrossViT-S	81.0	5.6	690	26.7
CrossViT-15	81.5	5.8	640	27.4
CrossViT-15 $\dagger$	82.3	6.1	626	28.2
DeiT-B	81.8	17.6	314	86.6
CrossViT-B	82.2	21.2	239	104.7
CrossViT-18	82.5	9.0	430	43.3
CrossViT-18 $\dagger$	82.8	9.5	418	44.3

CrossViT-18 $\dagger$ achieves $82.8\%$ top-1 accuracy—a $1.0\%$ absolute gain over DeiT-B ( $81.8\%$ )—while reducing FLOPs from 17.6G to 9.5G ( $46\%$ reduction) and parameter count from 86.6M to 44.3M ( $49\%$ reduction).

Knowl 8 — Ablation of Hyperparameters, Branch Asymmetry, and CLS Token Usage

data/table

Ablation experiments on ImageNet-1K using CrossViT-S evaluate variations in patch size pair $(P_s, P_l)$ , small-branch embedding dimension $C_s$ , small-branch depth $N$ , cross-attention depth $L$ , and multi-scale block count $K$ :

Model	$P_s$	$P_l$	$C_s$	$C_l$	$K$	$N$	$M$	$L$	Top-1 Acc. (%)	FLOPs (G)	Params (M)
CrossViT-S	12	16	192	384	3	1	4	1	81.0	5.6	26.7
A	8	16	192	384	3	1	4	1	80.8	6.7	26.7
B	12	16	384	384	3	1	4	1	80.1	7.7	31.4
C	12	16	192	384	3	2	4	1	80.7	6.3	28.0
D	12	16	192	384	3	1	4	2	81.0	5.6	28.9
E	12	16	192	384	6	1	2	1	80.9	6.6	31.1

Key findings:

Patch size granularity: Setting $(P_s, P_l) = (12, 16)$ (a $2\times$ token ratio) outperforms $(8, 16)$ ( $80.8\%$ , $4\times$ token ratio) because an excessive scale disparity hinders feature fusion.
S-Branch capacity: Increasing S-branch width ( $C_s=384$ , model B) or depth ( $N=2$ , model C) increases complexity but reduces accuracy, confirming that the S-branch should remain a lightweight complement to the primary L-branch.
Fusion frequency: Stacking additional cross-attention layers ( $L=2$ , model D) or doubling multi-scale encoders ( $K=6, M=2$ , model E) yields no accuracy gain.
CLS Token necessity: Replacing the CLS token with the mean of patch tokens as the query in cross-attention causes top-1 accuracy to drop from $81.0\%$ to $80.0\%$ .

Knowl 9 — Comparison with State-of-the-Art Transformers and CNN Backbones

data/table

CrossViT demonstrates competitive accuracy, throughput (measured at batch size 64 on an NVIDIA Tesla V100 GPU), and parameter efficiency relative to concurrent vision transformers and convolutional neural networks on ImageNet-1K:

Model	Top-1 Acc. (%)	FLOPs (G)	Throughput (img/s)	Params (M)
PVT-S	79.8	3.8	-	24.5
T2T-ViT-14	80.7	6.1	-	21.5
TNT-S	81.3	5.2	-	23.8
CrossViT-15 $\dagger$	82.3	6.1	626	28.2
ViT-B@384	77.9	17.6	-	86.6
T2T-ViT-24	82.2	15.0	-	64.1
TNT-B	82.8	14.1	-	65.6
CrossViT-18 $\dagger$	82.8	9.5	418	44.3
ResNet-152	77.0	11.5	445	60.2
ResNeXt-101-64x4d	79.6	15.5	289	83.5
RegNetY-16GF	80.4	15.9	336	83.6
SENet-154	81.3	20.7	201	115.1
EfficientNet-B4@380	82.9	4.2	356	19.0
CrossViT-18 $\dagger$ @384	83.9	32.4	112	44.6
CrossViT-18 $\dagger$ @480	84.1	56.6	57	44.9

CrossViT-15 $\dagger$ outperforms all ResNet, ResNeXt, RegNet, and SENet variants while maintaining higher inference throughput. At higher input resolutions ( $384 \times 384$ and $480 \times 480$ ), CrossViT-18 $\dagger$ achieves $83.9\%$ and $84.1\%$ , comparable to EfficientNet-B6 ( $84.0\%$ ) and B7 ( $84.3\%$ ).

Knowl 10 — Transfer Learning Performance on Downstream Classification Benchmarks

data/table

To assess representation generalization, CrossViT models pre-trained on ImageNet-1K were fine-tuned for 1,000 epochs on five downstream image classification datasets: CIFAR-10, CIFAR-100, Oxford-IIIT Pet, CropDiseases (plant pathology), and ChestXRay8 (medical thoracic radiography):

Model	CIFAR10	CIFAR100	Pet	CropDiseases	ChestXRay8
DeiT-S	99.15	90.89	94.93	99.96	55.39
DeiT-B	99.10	90.80	94.39	99.96	55.77
CrossViT-15	99.00	90.77	94.55	99.97	55.89
CrossViT-18	99.11	91.36	95.07	99.97	55.94

CrossViT matches or slightly surpasses DeiT on natural image datasets (reaching $91.36\%$ on CIFAR-100 and $95.07\%$ on Pet) and achieves higher AUC/accuracy on the medical ChestXRay8 benchmark ( $55.94\%$ vs. $55.77\%$ ), demonstrating strong generalization across distinct domains.

Coverage note — No substantial contributed material was omitted; the extracted knowls comprehensively cover the dual-branch CrossViT architecture, mathematical cross-attention formulation, complexity analysis, model configurations, ablation studies, baseline comparisons, downstream transfer learning, and hybrid convolutional/T2T tokenization integration.
